DS80PCI102 Series
Manufacturer: Texas Instruments
Beta
⌘K
2.5/5.0/8.0-GBPS 1-LANE PCI EXPRESS REDRIVER WITH EQUALIZATION AND DE-EMPHASIS
| Part | Signal Conditioning | Applications | Voltage - Supply [Max] | Voltage - Supply [Min] | Delay Time | Type | Mounting Type | Number of Channels [custom] | Data Rate (Max) | Output | Input | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Contents | Supplied Contents | Function | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Input Equalization Output De-Emphasis | PCIe | 3.6 V | 2.375 V | 200 ps | Buffer ReDriver | Surface Mount | 2 | 8 Gbps | CML | CML | 24-WFQFN Exposed Pad | 85 °C | -40 °C | 24-WQFN (4x4) | ||||

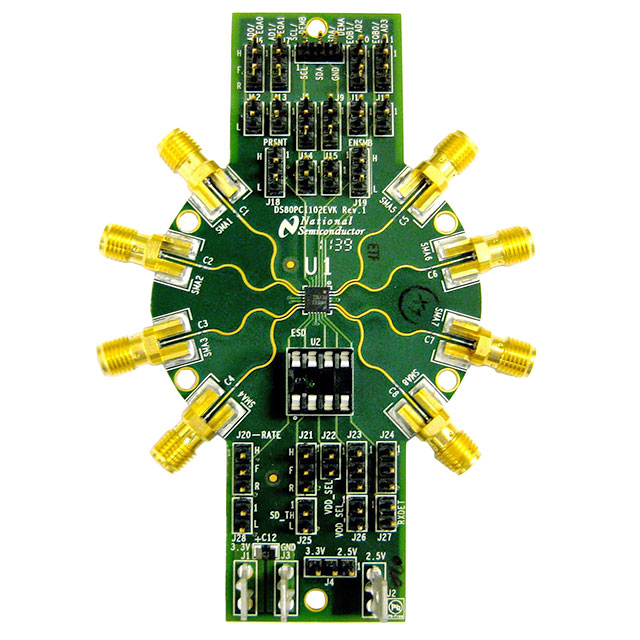

 Texas Instruments | Interface | Board(s) | Board(s) | PCI Express Transceiver | DS80PCI102 |
