45-180S Series

Manufacturer: EAO

Catalog

SWITCH SELECT 3POS DPST 10A 500V

Part	Mechanical Life	Approval Agency	Ingress Protection	Current Rating (Amps)	Type	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switch Function	Circuit	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination

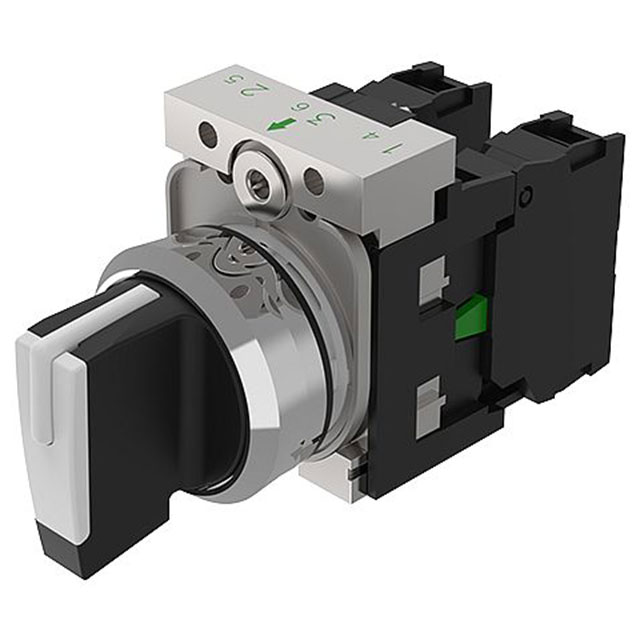

EAO 45-180S.2C90.003.108	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	10 A	Standard	500 V	Panel Mount	-25 °C	70 °C	Screw Terminal	Mom-Off-Mom	DPST-NO	500 V	22.3 mm	Non-Illuminated
EAO 45-180S.3C90.003.408	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	10 A	Standard	500 V	Panel Mount	-25 °C	70 °C	Spring Terminal	Mom-Off-Mom	DPST-NO	500 V	22.3 mm	Non-Illuminated

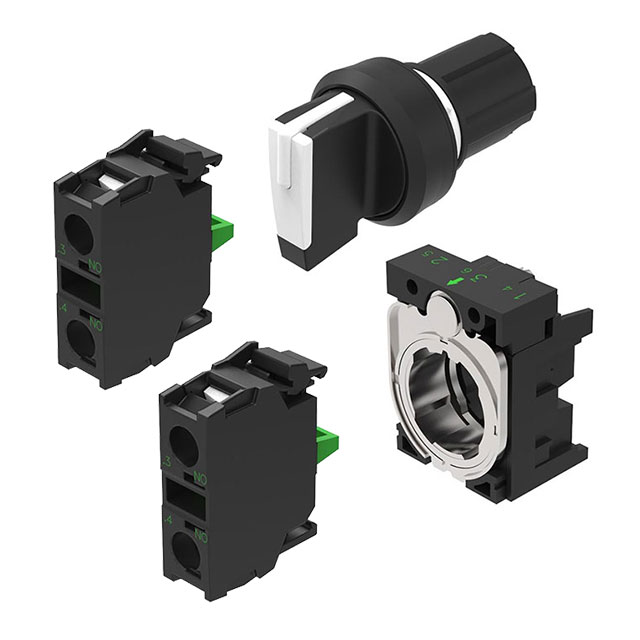

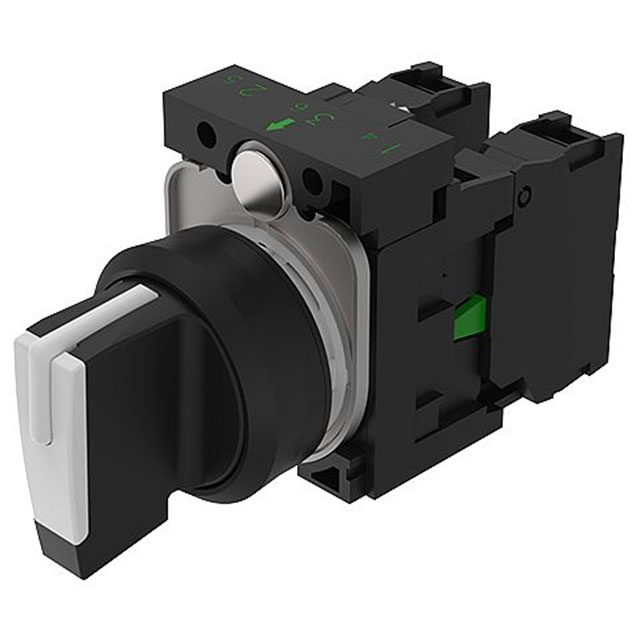

EAO 45-180S.1C90.003.108	1000000 Cycles	CCC CE CSA UL VDE	IP66 IP67 IP69K	10 A	Standard	500 V	Panel Mount	-25 °C	70 °C	Screw Terminal	Mom-Off-Mom	DPST-NO	500 V	22.3 mm	Non-Illuminated
