1210 Series

Catalog

INDUSTRIAL SURGE PROTECTORS 230VAC 2W+G 2 PROTECTED POLES

Part	Current - Discharge (Max) (8/20µS) [Max]	Number of Poles	Features	Approval Agency	Current - Short Circuit Rating (SCCR)	Form	Voltage - Continuous Operating (Max) (MCOV) [Max]	Voltage - Protection Level (VP) (2416)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Discharge (Nom) (8/20µS)	Mounting Type	Type	Voltage - Protection Rating (VPR)
Bourns Inc. 1210-2S-230	100 kA	2	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	275 VAC	1.25 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	900 V

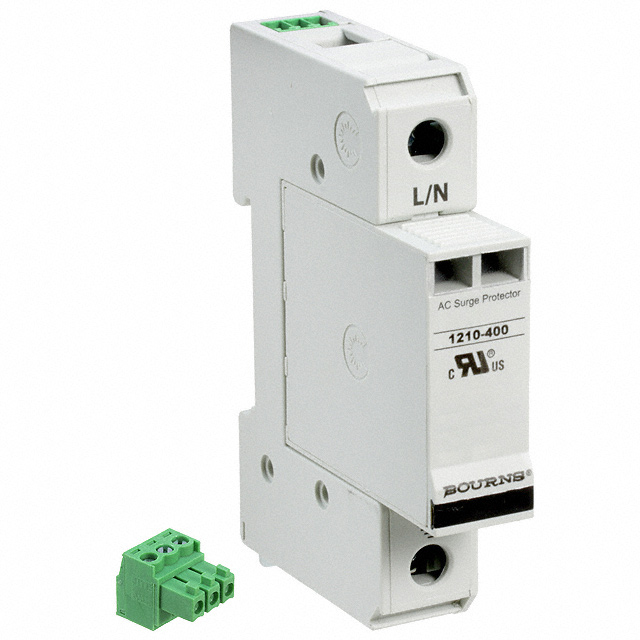

Bourns Inc. 1210-1S-400	100 kA	1	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	420 VAC	1.8 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	1.2 kV

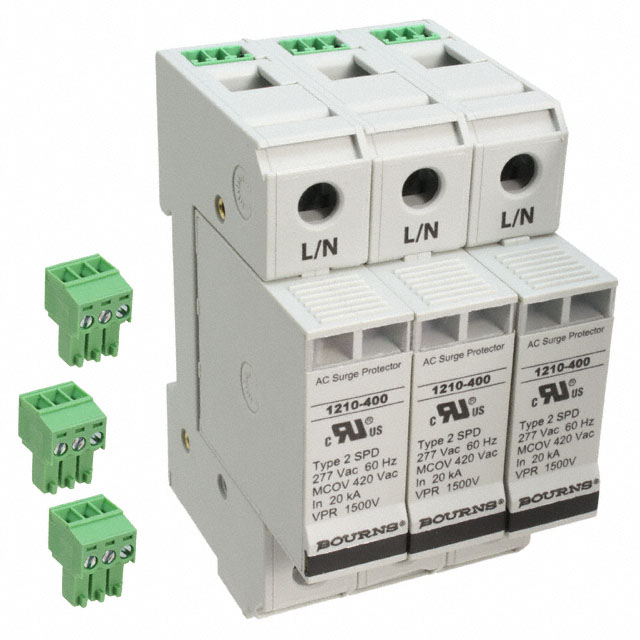

Bourns Inc. 1210-3S-400	100 kA	3	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	420 VAC	1.8 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	1.2 kV
Bourns Inc. 1210-3S-230	100 kA	3	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	275 VAC	1.25 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	900 V

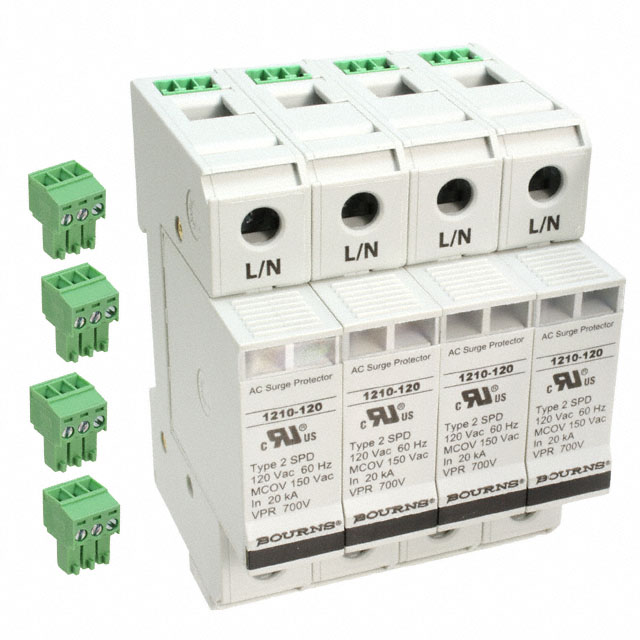

Bourns Inc. 1210-4S-120	100 kA	4	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	150 VAC	900 V	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	600 V
Bourns Inc. 1210-1S-120	100 kA	1	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	150 VAC	900 V	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	600 V

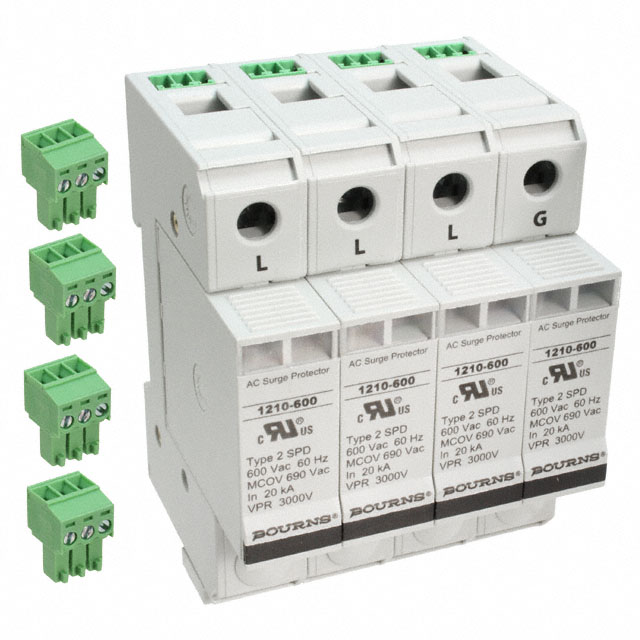

Bourns Inc. 1210-3S-600	100 kA	3	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	840 VAC	4 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	3 kV

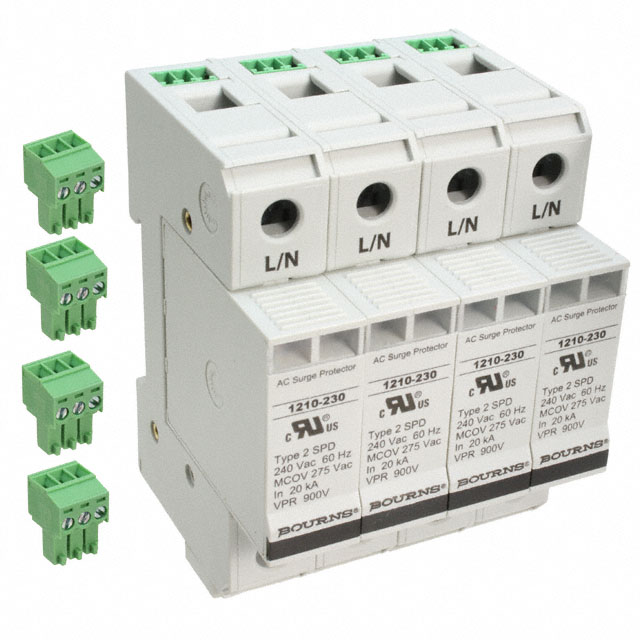

Bourns Inc. 1210-4S-230	100 kA	4	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	275 VAC	1.25 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	900 V

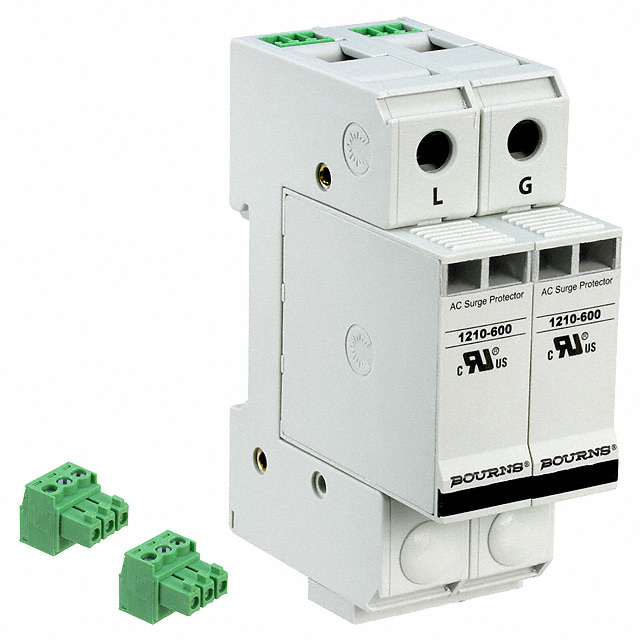

Bourns Inc. 1210-1S-600	100 kA	1	Remote Signaling Contacts Thermally Protected	CE CSA UL	100 kA	Module Only	840 VAC	4 kV	85 °C	-50 °C	20 kA	DIN Rail	Type 2 Type 4	3 kV
