PK6 Series
Manufacturer: Panduit Corp
Beta
⌘K

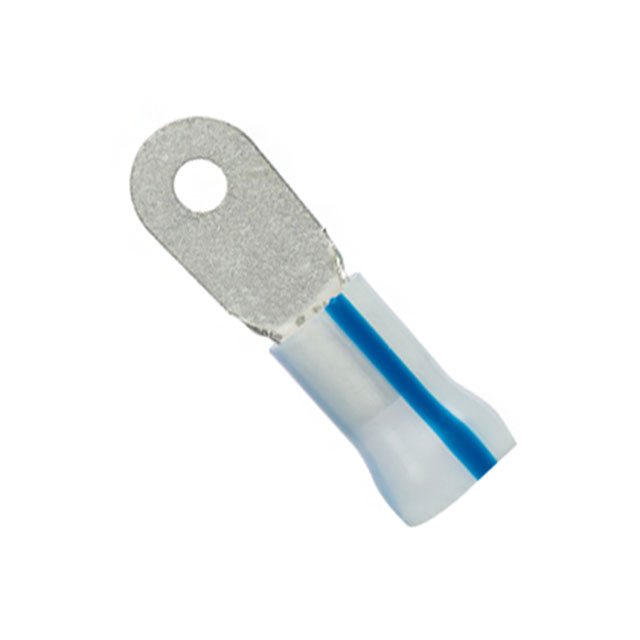

CONN RING CIRC 6AWG #1/4 CRIMP
| Part | Terminal Type | Contact Material | Contact Finish | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge | Mounting Type | Color | Features | Thickness | Thickness | Material - Insulation | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Termination | Length - Overall [x] | Length - Overall | Insulation | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Circular | Copper | Tin | 0.25 Stud | 0.47 in | 11.94 mm | 6 AWG | Free Hanging (In-Line) | Blue Stripe Natural | Brazed Seam Serrated Termination | 0.045 in | 1.14 mm | Polyvinylidene Fluoride (PVDF) | 0.36 in | 9.14 mm | Crimp | 1.63 in | 41.4 mm | Insulated | |
Panduit Corp | Circular | Copper | Tin | 0.47 in | 11.94 mm | 6 AWG | Free Hanging (In-Line) | Blue Stripe Natural | Brazed Seam Serrated Termination | 0.045 in | 1.14 mm | Polyvinylidene Fluoride (PVDF) | 0.36 in | 9.14 mm | Crimp | 1.59 in | 40.39 mm | Insulated | 8 Stud |
