68120 Series

Catalog

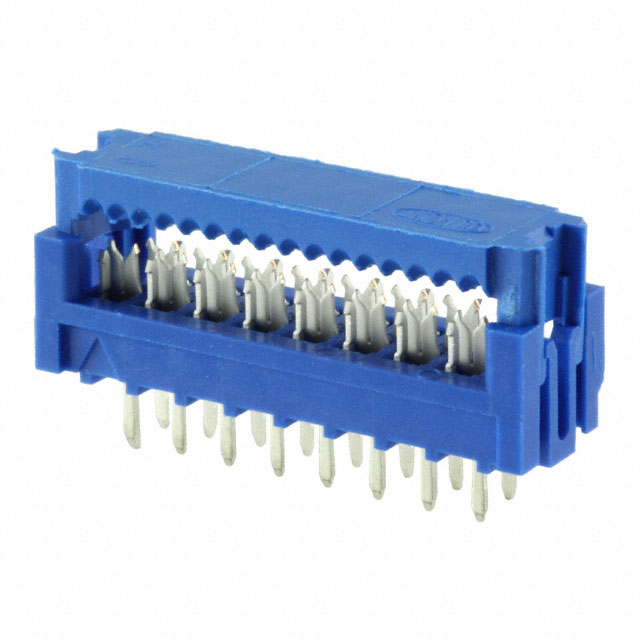

68120-6-QKE DIL PCB

Part	Cable Pitch	Cable Pitch	Row Spacing [x]	Row Spacing	Cable Termination	Number of Positions Loaded	Number of Positions	Color	Number of Rows	Board-Side Pitch	Board-Side Pitch	Mounting Type	Contact Finish	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Wire Gauge
Amphenol ICC (FCI) 68120-006	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	6	Blue	2	0.1 in	2.54 mm	Through Hole	Tin-Lead	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-020LF	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	20	Blue	2	0.1 in	2.54 mm	Through Hole	Tin	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-040LF	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	40	Blue	2	0.1 in	2.54 mm	Through Hole	Tin	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-034LF	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	34	Blue	2	0.1 in	2.54 mm	Through Hole	Tin	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-018	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	18	Blue	2	0.1 in	2.54 mm	Through Hole	Tin-Lead	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-018LF	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	18	Blue	2	0.1 in	2.54 mm	Through Hole	Tin	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-026	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	26	Blue	2	0.1 in	2.54 mm	Through Hole	Tin-Lead	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-014	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	14	Blue	2	0.1 in	2.54 mm	Through Hole	Tin-Lead	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-008LF	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	8	Blue	2	0.1 in	2.54 mm	Through Hole	Tin	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
Amphenol ICC (FCI) 68120-034	1.27 mm	0.05 in	0.1 in	2.54 mm	IDC	All	34	Blue	2	0.1 in	2.54 mm	Through Hole	Tin-Lead	DIP Header Ribbon Cable	Feed Through	2.54 µm	100 µin	26 AWG	28 AWG	Solid Stranded
