FI-XB30 Series

Catalog

CONN RCPT 30P 0.039 GOLD SMD R/A

Part	Insulation Material	Applications	Contact Material	Connector Type	Termination	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Contact Type	Fastening Type	Material Flammability Rating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Style	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Features	Number of Positions Loaded	For Use With/Related Products
JAE Electronics FI-XB30SSRL-HF16	Plastic	General Purpose	Copper Alloy	Receptacle	Solder	200 V	3.9 µin	0.099 µm	Gold	1	Non-Gendered	Friction Lock	UL94 V-0	Black	80 °C	-40 C	Board to Cable/Wire	1 A	Tin	30	1 mm	0.039 in	Board Cutout Bottom Mount Reverse Mount Right Angle Surface Mount	Grounding Pins Shielded Solder Retention	All

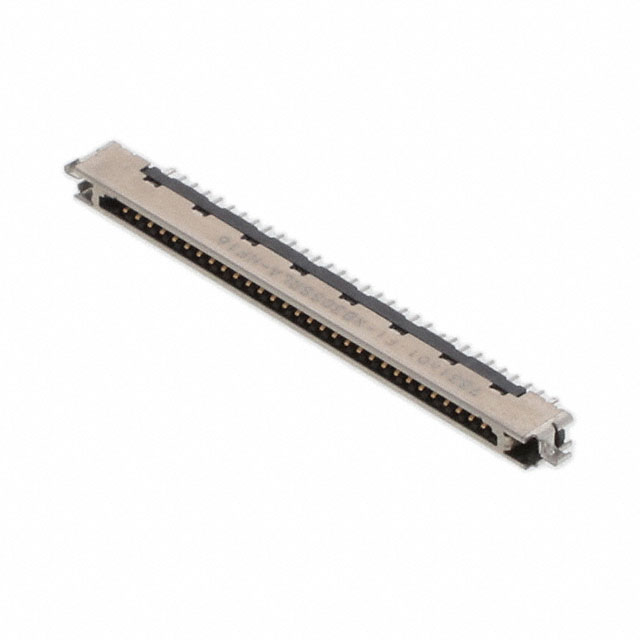

JAE Electronics FI-XB30SSRLA-HF16	Plastic	General Purpose	Copper Alloy	Receptacle	Solder	200 V	3.9 µin	0.099 µm	Gold	1	Non-Gendered	Friction Lock	UL94 V-0	Black	80 °C	-40 C	Board to Cable/Wire	1 A	Tin	30	1 mm	0.039 in	Board Cutout Bottom Mount Reverse Mount Right Angle Surface Mount	Grounding Pins Shielded Solder Retention	All
JAE Electronics FI-XB30SRL-HF11-SP																				30						FI-X Series
JAE Electronics FI-XB30SSL-HF15	Plastic	General Purpose	Copper Alloy	Receptacle	Solder	200 V	3.9 µin	0.099 µm	Gold	1	Non-Gendered	Friction Lock	UL94 V-0	Beige	80 °C	-40 C	Board to Cable/Wire	1 A	Tin	30	1 mm	0.039 in	Board Cutout Bottom Mount Right Angle Surface Mount	Grounding Pins Shielded Solder Retention	All

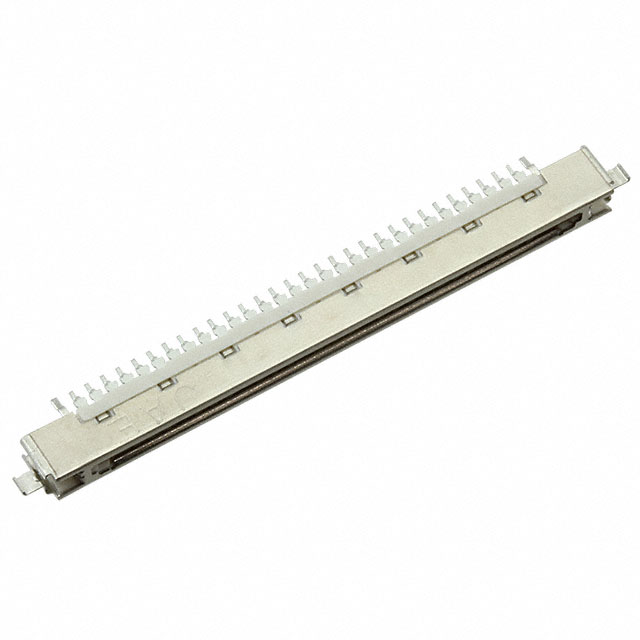

JAE Electronics FI-XB30SSLA-HF15	Plastic	General Purpose	Copper Alloy	Receptacle	Solder	200 V	3.9 µin	0.099 µm	Gold	1	Non-Gendered	Friction Lock	UL94 V-0	Beige	80 °C	-40 C	Board to Cable/Wire	1 A	Tin	30	1 mm	0.039 in	Board Cutout Bottom Mount Right Angle Surface Mount	Grounding Pins Shielded Solder Retention	All

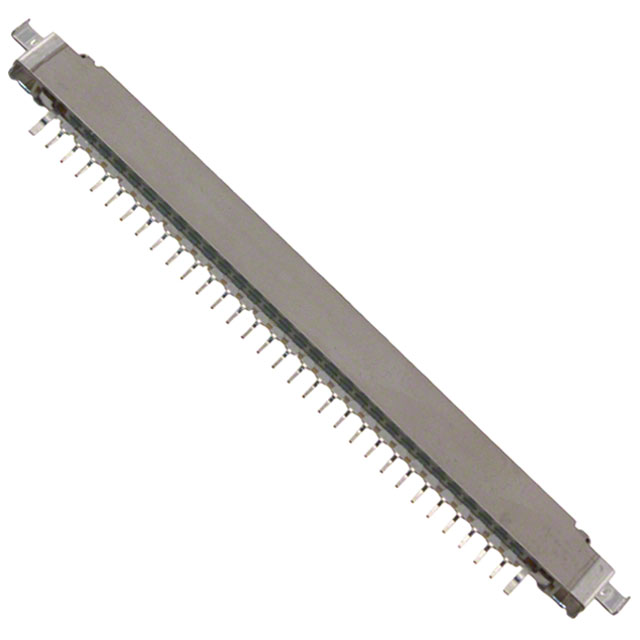

JAE Electronics FI-XB30SL-HF10-R3000	Plastic	General Purpose	Copper Alloy	Receptacle	Solder	200 V	12 Áin	0.3 Ám	Gold	1	Non-Gendered	Friction Lock	UL94 V-0	Beige	80 °C	-40 C	Board to Cable/Wire	1 A	Tin	30	1 mm	0.039 in	Board Cutout Bottom Mount Right Angle Surface Mount	Grounding Pins Shielded Solder Retention	All
JAE Electronics FI-XB30SL-HF10
JAE Electronics FI-XB30S-HF10-NPB	Plastic	General Purpose	Copper Alloy	Receptacle	Solder	200 V			Gold	1	Non-Gendered	Friction Lock	UL94 V-0	Beige	80 °C	-40 C	Board to Cable/Wire	1 A	Tin	30	1 mm	0.039 in	Board Cutout Bottom Mount Right Angle Surface Mount	Grounding Pins Shielded Solder Retention	All
