TRG1515 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 15V 15W

Part	Region Utilized	Polarization	Voltage - Output	Standard Number	Applications	No Load Power Consumption	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Cord Length	Cord Length	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Form	Current - Output (Max) [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Weight	Weight	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]
Cincon Electronics Co. LTD TRG1515-A-01E03 VI	North America	Positive Center	15 V	60950-1	ITE (Commercial)	75 mW	CoC Tier 2 Level VI	-20 ░C	60 °C	70.9 "	1.8 m	Fixed Blade	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	15 W	Wall Mount	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	NEMA 1-15P
Cincon Electronics Co. LTD TRG1515-S-01E03 VI	Australia	Positive Center	15 V	60950-1	ITE (Commercial)	75 mW	CoC Tier 2 Level VI	-20 ░C	60 °C	70.9 "	1.8 m	Fixed Blade	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	15 W	Wall Mount	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	AS 3112
Cincon Electronics Co. LTD TRG1515-A-11E03 VI	North America	Positive Center	15 V		ITE (Commercial)	75 mW	CoC Tier 2 Level VI	-20 ░C	60 °C	70.9 "	1.8 m	Fixed Blade	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	15 W	Wall Mount	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	NEMA 1-15P	0.309 lb	140 g	2.1 mm	5.5 mm	Barrel Plug	12 mm
Cincon Electronics Co. LTD TRG1515-U-01E03 VI	United Kingdom	Positive Center	15 V	60950-1	ITE (Commercial)	75 mW	CoC Tier 2 Level VI	-20 ░C	60 °C	70.9 "	1.8 m	Fixed Blade	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	15 W	Wall Mount (Class I)	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	BS 1363
Cincon Electronics Co. LTD TRG1515-01-U-01E03 VI	United Kingdom	Positive Center	15 V	60950-1	ITE (Commercial)	75 mW	CoC Tier 2 Level VI	-20 ░C	60 °C	70.9 "	1.8 m	Fixed Blade	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	15 W	Wall Mount (Class I)	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	BS 1363

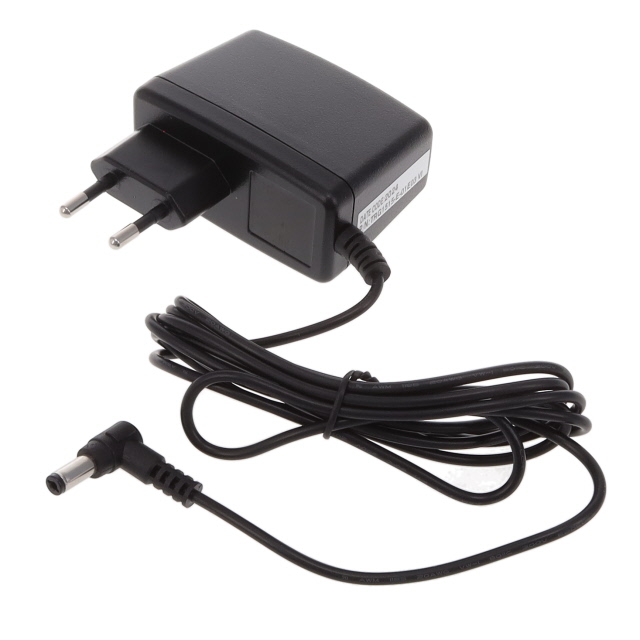

Cincon Electronics Co. LTD TRG1515-E-01E03 VI	Europe	Positive Center	15 V	60950-1	ITE (Commercial)	75 mW	CoC Tier 2 Level VI	-20 ░C	60 °C	70.9 "	1.8 m	Fixed Blade	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	15 W	Wall Mount	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	KSC 8305
