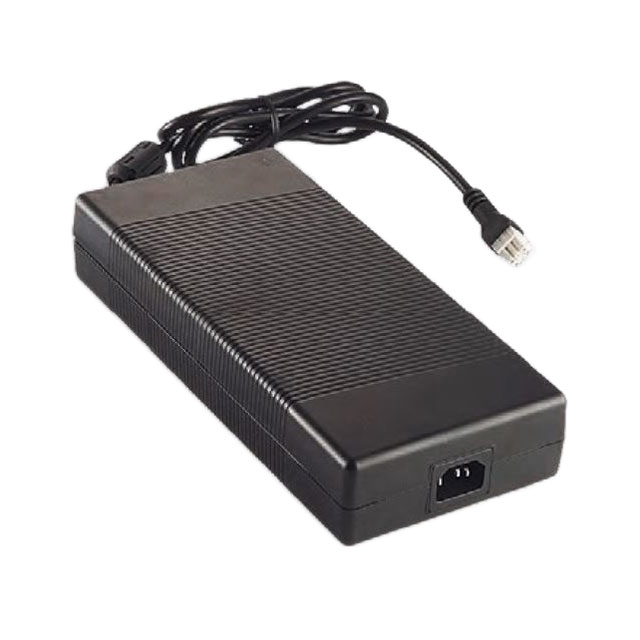

L6R300 Series

Catalog

AC/DC DESKTOP ADAPTER 48V 300W

Part	Weight	Weight	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Operating Temperature [Max]	Applications	Cord Length	Cord Length	Voltage - Output	Power (Watts)	Input Connector	Efficiency	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Form	Current - Output (Max) [Max]	Input Type	Output Connector	Output Connector	Standard Number	Cord Length
Tri-Mag, LLC L6R300D-480	1.6 kg	3.5 lbs	264 VAC	90 VAC	500 mW	40 °C	ITE (Commercial)	1.2 m	47.2 in	48 V	300 W	IEC 320-C14	CoC Tier 2 Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	6.25 A	Cord (Sold Separately)	Rectangular	6 Position	62368-1
Tri-Mag, LLC L6R300D-240-C6	1.6 kg	3.5 lbs	264 VAC	90 VAC	500 mW	40 °C	ITE (Commercial)	1.2 m	47.2 in	24 V	300 W	IEC 320-C6	CoC Tier 2 Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	12.5 A	Cord (Sold Separately)	Rectangular	6 Position	62368-1
Tri-Mag, LLC L6R300D-190-C14	1.6 kg	3.5 lbs	264 VAC	90 VAC	500 mW	40 °C	ITE (Commercial)	1.2 m	47.2 in	19 V	300 W	IEC 320-C14	CoC Tier 2 Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	15.78 A	Cord (Sold Separately)	Rectangular	6 Position	62368-1

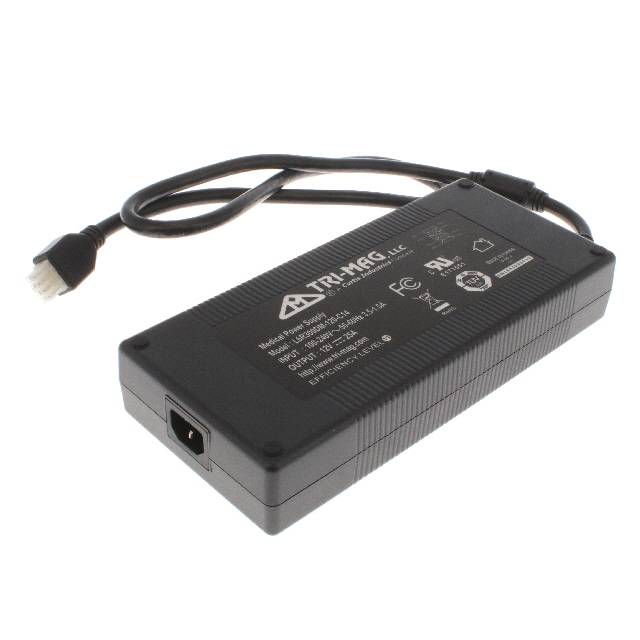

Tri-Mag, LLC L6R300DM-120-C14			264 VAC	90 VAC	150 mW	40 °C	Medical	1.2 m	47.2 in	12 V	300 W	IEC 320-C14	Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	25 A	Cord (Sold Separately)	Rectangular 8 Position		62368-1
Tri-Mag, LLC L6R300D-120-C6	1.6 kg	3.5 lbs	264 VAC	90 VAC	500 mW	40 °C	ITE (Commercial)	39.4 in		12 V	288 W	IEC 320-C6	CoC Tier 2 Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	24 A	Cord (Sold Separately)	Rectangular	6 Position	62368-1	1 m
Tri-Mag, LLC L6R300D-120	1.6 kg	3.5 lbs	264 VAC	90 VAC	500 mW	40 °C	ITE (Commercial)	39.4 in		12 V	288 W	IEC 320-C14	CoC Tier 2 Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	24 A	Cord (Sold Separately)	Rectangular	6 Position	62368-1	1 m
Tri-Mag, LLC L6R300D-560-C6	1.6 kg	3.5 lbs	264 VAC	90 VAC	500 mW	40 °C	ITE (Commercial)	1.2 m	47.2 in	56 V	300 W	IEC 320-C6	CoC Tier 2 Level VI	CE cULus EN FCC TUV	116 mm	254 mm	47 mm	4.57 in	1.85 in	10 in	International	Desktop (Class I)	5.36 A	Cord (Sold Separately)	Rectangular	6 Position	62368-1
