1.14001 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE SPST-NO 0.1A 35V

Part	Switch Function	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Operating Force	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Circuit	Mounting Type	Termination Style	Contact Rating @ Voltage	Illumination	Outline [y]	Outline [x]	Actuator Type
RAFI USA 1.14001.8010000	Off-Mom	Top Actuated	4.95 mm	479 gf	0.66 mm	90 °C	-40 C	1000000 Cycles	SPST-NO	Through Hole	PC Pin	0.1 A 35 VAC/DC	Non-Illuminated	12 mm	12 mm	Standard
RAFI USA 1.14001.6010000
RAFI USA 1.14001.6010000

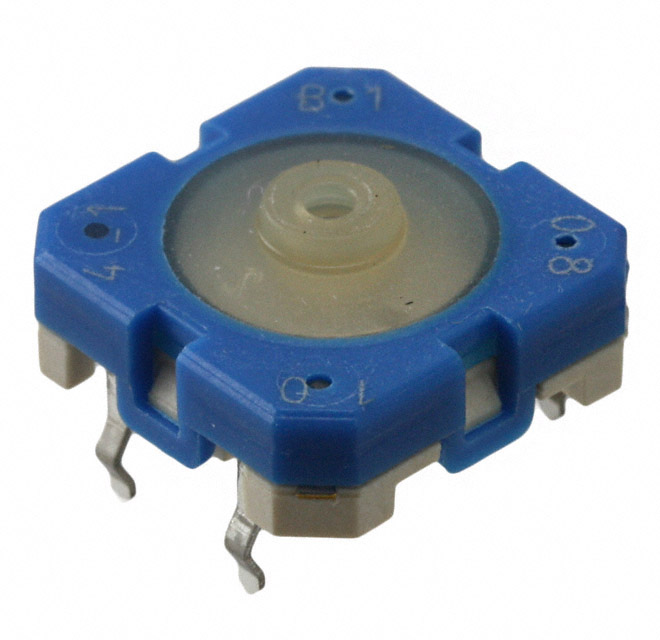

RAFI USA 1.14001.5020000	Off-Mom	Top Actuated	4.95 mm	360 gf		80 °C	-40 C		SPST-NO	Through Hole	PC Pin	0.1 A 42 VAC/DC	Non-Illuminated	12 mm	12 mm	Standard

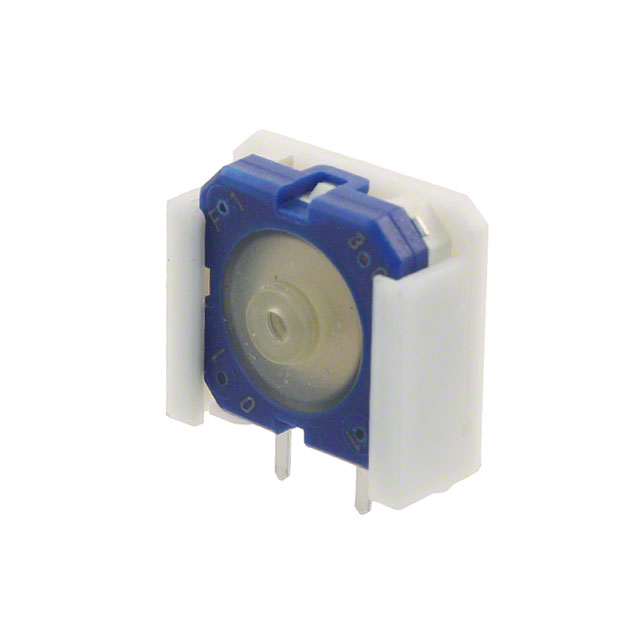

RAFI USA 1.14001.5050000	Off-Mom	Side Actuated	13.5 mm	360 gf	0.61 mm	90 °C	-40 C	1000000 Cycles	SPST-NO	Right Angle Through Hole	PC Pin	0.1 A 42 VAC/DC	Non-Illuminated	13.5 mm	13.6 mm	Standard
RAFI USA 1.14001.8010000	Off-Mom	Top Actuated	4.95 mm	479 gf		90 °C	-40 C		SPST-NO	Through Hole	PC Pin	0.1 A 35 VAC/DC	Non-Illuminated	12 mm	12 mm	Standard
RAFI USA 1.14001.8030000	Off-Mom	Top Actuated	5.05 mm	479 gf		90 °C	-40 C		SPST-NO	Surface Mount	Gull Wing	0.1 A 35 VAC/DC	Non-Illuminated	12 mm	12 mm	Standard
RAFI USA 1.14001.8020000	Off-Mom	Top Actuated	4.95 mm	479 gf		90 °C	-40 C		SPST-NO	Through Hole	PC Pin	0.1 A 35 VAC/DC	Non-Illuminated	12 mm	12 mm	Standard
RAFI USA 1.14001.8020000	Off-Mom	Top Actuated	4.95 mm	479 gf	0.66 mm	90 °C	-40 C	1000000 Cycles	SPST-NO	Through Hole	PC Pin	0.1 A 35 VAC/DC	Non-Illuminated	12 mm	12 mm	Standard
RAFI USA 1.14001.5050000	Off-Mom	Side Actuated	13.5 mm	360 gf		90 °C	-40 C		SPST-NO	Right Angle Through Hole	PC Pin	0.1 A 42 VAC/DC	Non-Illuminated	13.5 mm	13.6 mm	Standard
