202D263 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

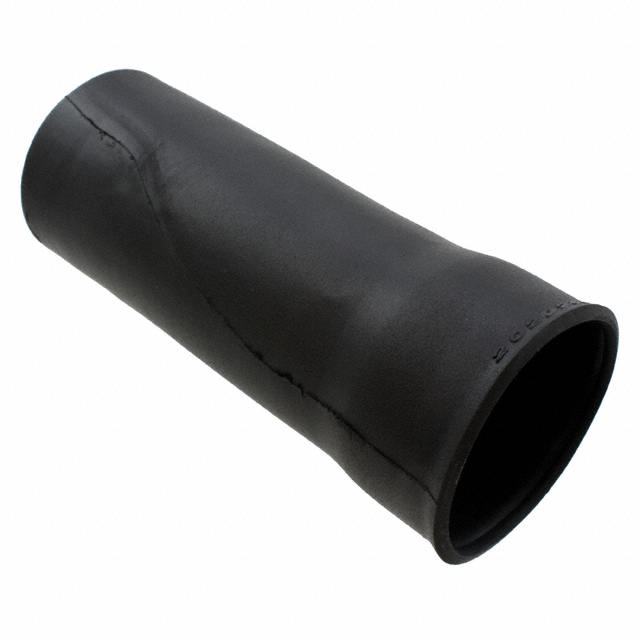

HEATSHRINK BOOT SZ63 BLACK

Part	Shell Size - Insert	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Recovered Length	Small Recovered Length	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Total Length Recovered [x]	Total Length Recovered	Material	Type	Large Recovered Length	Large Recovered Length	Features	Large Diameter Supplied	Large Diameter Supplied	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Total Length Recovered	Small Recovered Length [x]	Small Recovered Length [x]	Total Length Recovered
TE Connectivity Aerospace, Defense and Marine 202D263-4-22-0-CS5349	63	1.72 in	43.69 mm	12.19 mm	0.48 in	74.09 mm	2.917 in	Black	1.34 in	34.04 mm	4.5 in	114.3 mm	Polyolefin (PO) Flexible Irradiated	Boot	15.19 mm	0.598 in	Flame Retardant Fluid Resistant Heat Resistant Lip	1.72 in	43.69 mm
TE Connectivity Aerospace, Defense and Marine 202D263-4-22/42-0	63	1.72 in	43.69 mm	12.19 mm	0.48 in	74.09 mm	2.917 in	Black	1.34 in	34.04 mm	4.5 in	114.3 mm	Polyolefin (PO) Flexible Irradiated	Boot	15.19 mm	0.598 in	Adhesive Coating Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.72 in	43.69 mm
TE Connectivity Aerospace, Defense and Marine 202D263-12-22-0	63	1.071 in	27.2 mm	12.19 mm	0.48 in	74.09 mm	2.917 in	Black	1.34 in	34.04 mm	4.5 in	114.3 mm	Fluoroelastomer (FKM) Flexible Irradiated	Boot	15.19 mm	0.598 in	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	1.72 in	43.69 mm
TE Connectivity Aerospace, Defense and Marine 202D263-4-32-0-CS5463	63	1.717 in	43.61 mm	12.19 mm	0.48 in			Black	1.343 in	34.11 mm	4.5 in	114.3 mm	Polyolefin (PO) Flexible Irradiated	Boot	19.81 mm	0.78 in	Flame Retardant Fluid Resistant Heat Resistant Lip Potting (Injection) Port Vent Port			43.61 mm	1.717 in
TE Connectivity Aerospace, Defense and Marine 202D263-12-0-CS5349	63	1.071 in	27.2 mm	12.19 mm	0.48 in			Black	1.34 in	34.04 mm		8 in	Fluoroelastomer (FKM) Flexible Irradiated	Boot	19.81 mm	0.78 in	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	1.72 in	43.69 mm			203.2 mm	163.09 mm	6.421 in
TE Connectivity Aerospace, Defense and Marine 202D263-4-0	63	1.72 in	43.69 mm	12.19 mm	0.48 in			Black	1.34 in	34.04 mm		8 in	Polyolefin (PO) Flexible Irradiated	Boot	19.81 mm	0.78 in	Flame Retardant Fluid Resistant Heat Resistant Lip	1.72 in	43.69 mm			203.2 mm	163.09 mm	6.421 in
TE Connectivity Aerospace, Defense and Marine 202D263-12-22-0-CS5349	63	1.071 in	27.2 mm	12.19 mm	0.48 in	74.09 mm	2.917 in	Black	1.34 in	34.04 mm	4.5 in	114.3 mm	Fluoroelastomer (FKM) Flexible Irradiated	Boot	15.19 mm	0.598 in	Flame Retardant Fluid Resistant Fuel Resistant Heat Resistant Lip	1.72 in	43.69 mm
TE Connectivity Aerospace, Defense and Marine 202D263-4-61-0-CS5077	63	1.72 in	43.69 mm	12.19 mm	0.48 in			Black Red	1.34 in	34.04 mm		8 in	Polyolefin (PO) Flexible Irradiated	Boot	15.19 mm	0.598 in	Drain Holes Flame Retardant Fluid Resistant Heat Resistant Lip	1.72 in	43.69 mm			203.2 mm	163.09 mm	6.421 in
TE Connectivity Aerospace, Defense and Marine 202D263-4-61/42-0-CS5077	63	1.72 in	43.69 mm	12.19 mm	0.48 in			Black Red	1.34 in	34.04 mm		8 in	Polyolefin (PO) Flexible Irradiated	Boot	15.19 mm	0.598 in	Adhesive Coating Drain Holes Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.72 in	43.69 mm			203.2 mm	163.09 mm	6.421 in
TE Connectivity Aerospace, Defense and Marine 202D263-25-18-0	63	1.72 in	43.69 mm	12.19 mm	0.48 in			Black	1.34 in	34.04 mm		83.79 mm	Elastomer Semi-Rigid Irradiated	Boot	15.19 mm	0.598 in	Abrasion Resistant Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	1.72 in	43.69 mm						3.299 in
