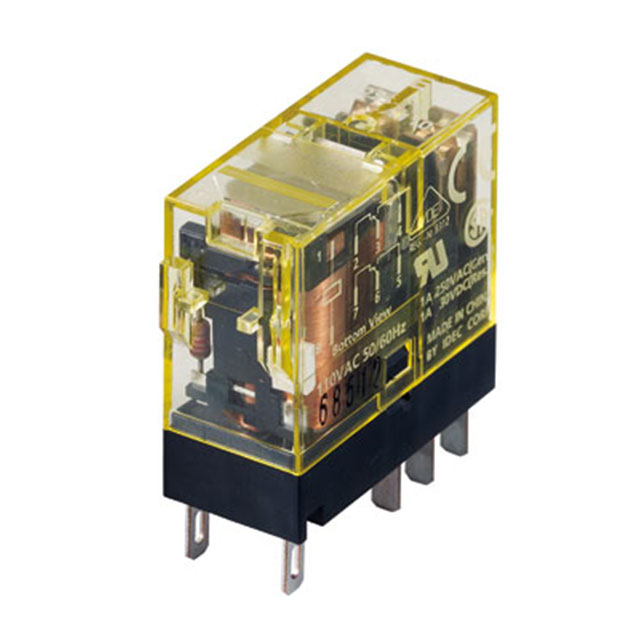

RJ22S-C Series
Manufacturer: IDEC
Beta
⌘K
BIFURCATED RELAY DPDT DC100 ROHS COMPLIANT: YES
| Part | Coil Resistance | Termination Style | Switching Voltage | Release Time | Operate Time | Load - Max Switching | Contact Form | Mounting Type | Approval Agency | Relay Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Coil Voltage [Min] | Coil Voltage [Max] | Coil Type | Contact Rating (Current) | Must Release Voltage | Coil Voltage | Must Operate Voltage | Features | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 18.87 kOhms | Plug In | 125 VDC 250 VAC | 10 ms | 15 ms | 125 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 5.3 mA | 100 VDC | 110 VDC | Non Latching | 1 A | |||||
IDEC | 62.5 Ohms | Plug In | 125 VDC 250 VAC | 10 ms | 15 ms | 125 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 0.075 A | Non Latching | 1 A | 3.6 VAC | 12 VAC | 9.6 VAC/DC | ||||
IDEC | 18.87 kOhms | Plug In | 125 VDC 250 VAC | 10 ms | 15 ms | 125 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 5.2 mA | 100 VDC | 110 VDC | Non Latching | 1 A | Diode Lighted Indicator | ||||
IDEC | 271 Ohms | Plug In | 125 VDC 250 VAC | 10 ms | 15 ms | 125 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 44.2 mA | Non Latching | 1 A | 1.2 VDC | 12 VDC | 8.4 VDC | ||||
IDEC | 243 Ohms | Plug In | 125 VDC 250 VAC | 10 ms | 15 ms | 125 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 41.4 mA | Non Latching | 1 A | 7.2 VAC | 24 VAC | 19.2 VAC | Lighted Indicator RC Circuit | |||
IDEC | 62.5 Ohms | Plug In | 125 VDC 250 VAC | 10 ms | 15 ms | 125 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 0.075 A | Non Latching | 1 A | 3.6 VAC | 12 VAC | 9.6 VAC/DC | Test Button | |||
 IDEC | 6.4 kOhms | Plug In | 10 ms | 15 ms | 30 W 250 VA | DPDT (2 Form C) | Socketable | CE CSA cURus VDE | General Purpose | Gold (Au) Silver Nickel (AgNi) | 70 °C | -40 C | 7.5 mA | Non Latching | 1 A | 36 VAC | 120 VAC | 96 VAC | 30 VDC 250 VAC |
