745-048 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 48POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Termination	Read Out	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Gender	Mounting Type	Number of Positions	Contact Material	Contact Type	Card Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination Rows	Number of Rows
EDAC Inc. 745-048-525-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24
EDAC Inc. 745-048-545-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24
EDAC Inc. 745-048-540-106		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Single	Black	Gold	-40 C	105 ░C		Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	48	1	1

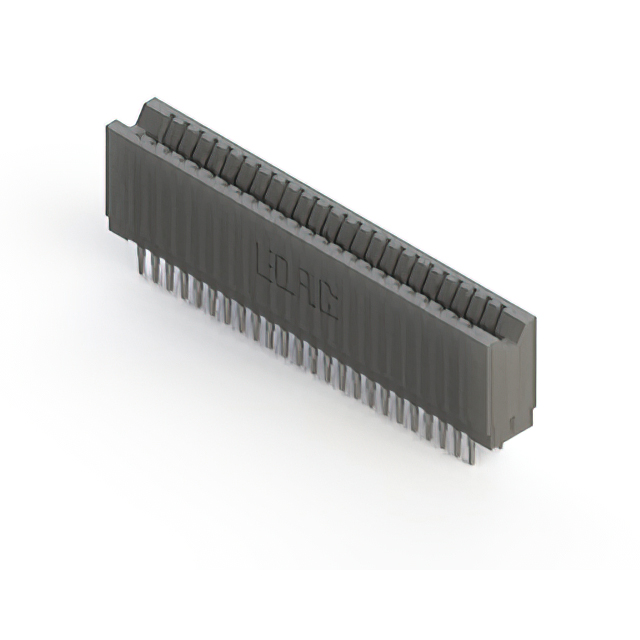

EDAC Inc. 745-048-540-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24
EDAC Inc. 745-048-522-201	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24
EDAC Inc. 745-048-540-101		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Single	Black	Gold	-40 C	105 ░C		Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	48	1	1

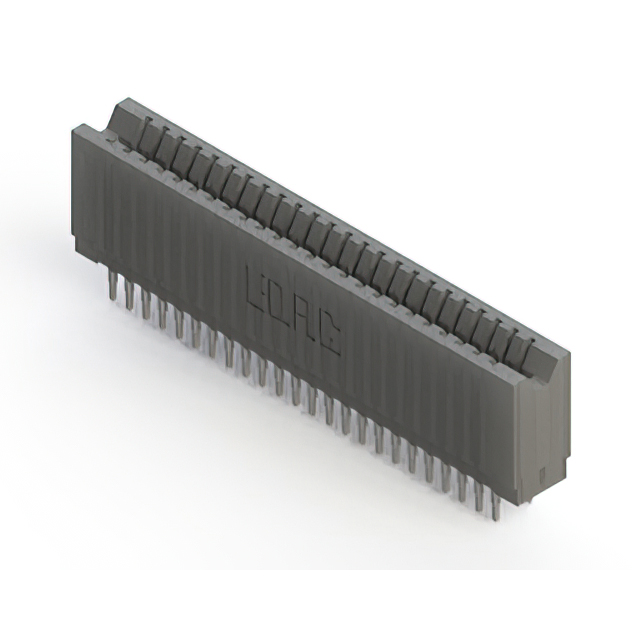

EDAC Inc. 745-048-520-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24
EDAC Inc. 745-048-545-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24

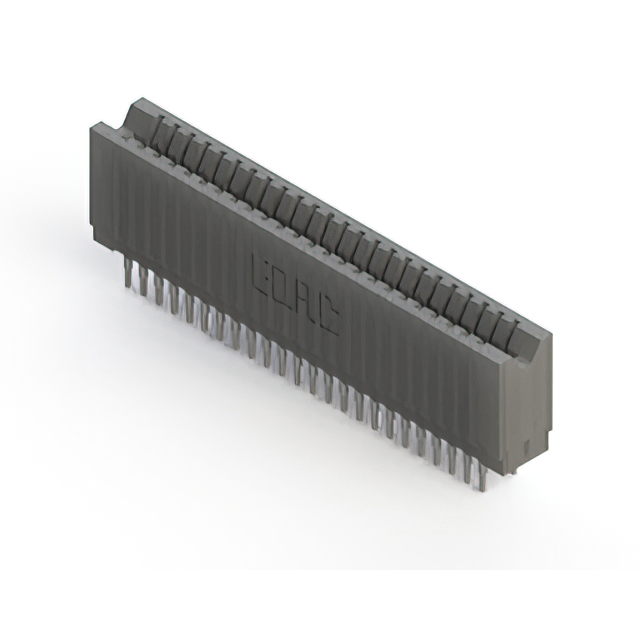

EDAC Inc. 745-048-522-206	2	Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	Dual	Black	Gold	-40 C	105 ░C	2	Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Dual Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	24
EDAC Inc. 745-048-541-106		Polyester Thermoplastic	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	Single	Black	Gold	-40 C	105 ░C		Female	Through Hole	48	Copper Alloy	Cantilever	Non Specified - Single Edge	0.1 "	2.54 mm	30 Áin	0.76 Ám	48	1	1
