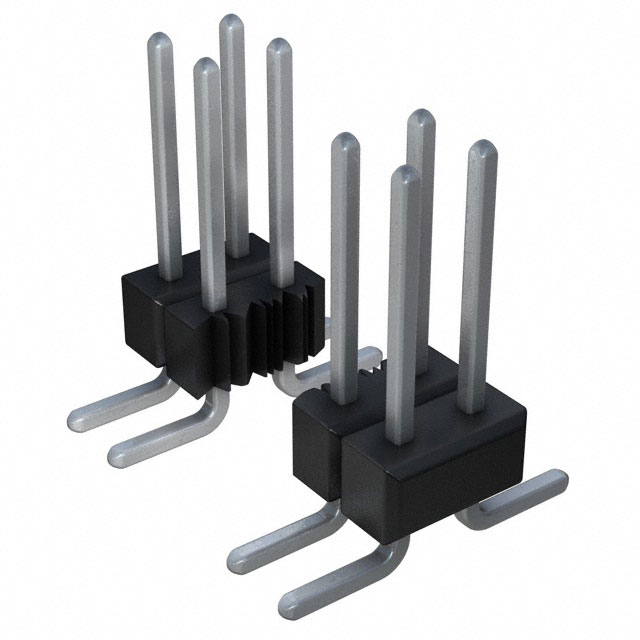

GTC24 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD R/A 24POS 2.54MM
| Part | Termination | Fastening Type | Contact Material | Contact Finish - Post | Contact Shape | Number of Positions | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Contact Type | Mounting Type | Material Flammability Rating | Contact Finish - Mating | Number of Rows | Number of Positions Loaded | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating | Contact Length - Mating | Insulation Material | Insulation Color | Current Rating (Amps) | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Solder | Push-Pull | Phosphor Bronze | Tin-Lead | Square | 24 | 600 V | 2.54 µm | 100 µin | Board to Board Cable | Male Pin | Right Angle Surface Mount | UL94 V-0 | Tin-Lead | 1 | All | Unshrouded | 0.1 " | 2.54 mm | 3.56 mm | 0.14 in | 100 çin | 2.54 çm | Header | -65 ░C | 125 °C | 8.08 mm | 0.318 in | Nylon 9T Polyamide (PA9T) | Black | 3 A | |||
 Sullins Connector Solutions | Solder | Push-Pull | Phosphor Bronze | Tin-Lead | Square | 24 | 600 V | 2.54 µm | 100 µin | Board to Board Cable | Male Pin | Surface Mount | UL94 V-0 | Tin-Lead | 1 | All | Unshrouded | 0.1 " | 2.54 mm | 2.54 mm | 0.1 in | 100 çin | 2.54 çm | Header | -65 ░C | 125 °C | 5.84 mm | 0.23 in | Nylon 9T Polyamide (PA9T) | Black | 3 A | |||
Sullins Connector Solutions | Solder | Push-Pull | Phosphor Bronze | Tin-Lead | Square | 24 | 600 V | 2.54 µm | 100 µin | Board to Board Cable | Male Pin | Right Angle Surface Mount | UL94 V-0 | Tin-Lead | 1 | All | Unshrouded | 0.1 " | 2.54 mm | 3.56 mm | 0.14 in | 100 çin | 2.54 çm | Header | -65 ░C | 125 °C | 5.84 mm | 0.23 in | Nylon 9T Polyamide (PA9T) | Black | 3 A | |||
 Sullins Connector Solutions | Solder | Push-Pull | Phosphor Bronze | Tin-Lead | Square | 48 | 600 V | 2.54 µm | 100 µin | Board to Board Cable | Male Pin | Surface Mount | UL94 V-0 | Tin-Lead | All | Unshrouded | 0.1 " | 2.54 mm | 2.54 mm | 0.1 in | 100 çin | 2.54 çm | Header | -65 ░C | 125 °C | 8.08 mm | 0.318 in | Nylon 9T Polyamide (PA9T) | Black | 3 A | 2 | 0.1 in | 2.54 mm |
