IL-WX-20 Series

Catalog

CONN HEADER SMD 20POS 0.8MM

Part	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Connector Type	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Features	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Insulation Material	Contact Finish - Post	Contact Material	Current Rating (Amps)	Shrouding	Fastening Type	Applications	Insulation Height	Insulation Height	Material Flammability Rating	Contact Finish - Mating
JAE Electronics IL-WX-20PB-VF-B-E1000E	Square	1.8 mm	0.071 in	All	Black	Header	Solder	0.059 in	1.5 mm	Male Pin	0.8 mm	0.031 in	Board Guide Solder Retention	20	85 °C	-40 C	Surface Mount	0.144 "	3.66 mm	2	Polyphenylene Sulfide (PPS)	Tin	Brass	500 mA	Shrouded - 4 Wall	Push-Pull

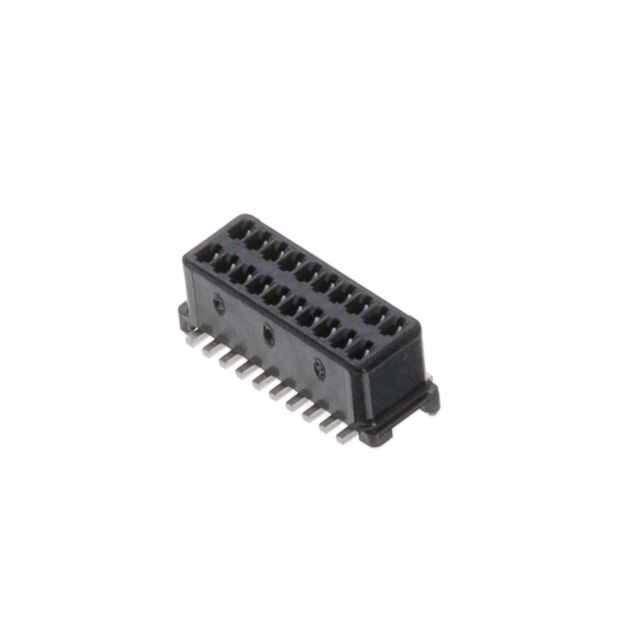

JAE Electronics IL-WX-20SB-VF-B-E1000E	Square			All	Black	Receptacle	Solder	0.059 in	1.5 mm	Forked	0.8 mm	0.031 in	Board Guide Solder Retention	20	85 °C	-40 C	Surface Mount			2	Polyphenylene Sulfide (PPS) Glass Filled		Copper Alloy	0.5 A		Push-Pull	General Purpose	0.128 in	3.25 mm	UL94 V-0

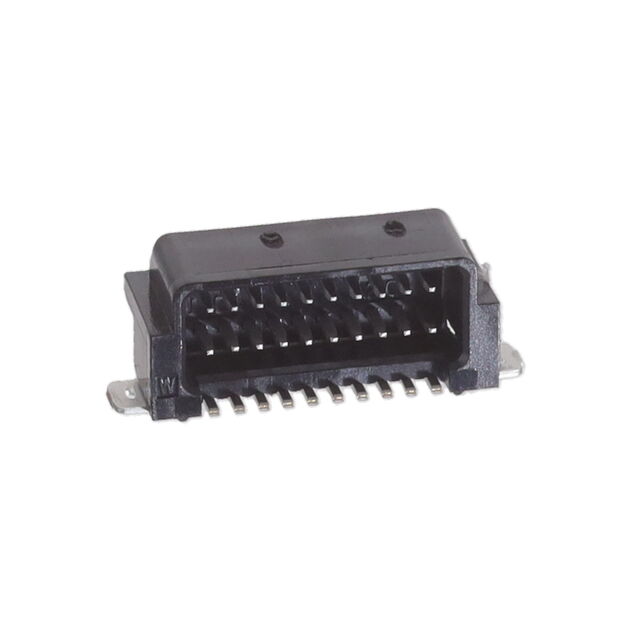

JAE Electronics IL-WX-20PB-HF-HD-S-B-E1000E	Square	1.8 mm	0.071 in	All	Black	Header	Solder	0.059 in	1.5 mm	Male Pin	0.8 mm	0.031 in	Board Guide Solder Retention	20	85 °C	-40 C	Right Angle Surface Mount	0.185 in	4.7 mm	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Copper Alloy	500 mA	Shrouded - 4 Wall	Push-Pull
JAE Electronics IL-WX-20SB-VF-A1-B-E1000E	Square			All	Black	Receptacle	Solder	0.059 in	1.5 mm	Forked	0.8 mm	0.031 in	Board Guide Solder Retention	20	85 °C	-40 C	Surface Mount			2	Polyphenylene Sulfide (PPS) Glass Filled		Copper Alloy	0.5 A		Push-Pull	General Purpose	0.128 in	3.25 mm	UL94 V-0	Gold
JAE Electronics IL-WX-20PB-HF-HD-S-BE	Square	1.8 mm	0.071 in	All	Black	Header	Solder	0.059 in	1.5 mm	Male Pin	0.8 mm	0.031 in	Board Guide Solder Retention	20	85 °C	-40 C	Right Angle Surface Mount	0.185 in	4.7 mm	2	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Copper Alloy	500 mA	Shrouded - 4 Wall	Push-Pull
JAE Electronics IL-WX-20S-VF-A1-B-E1000E	Square			All	Black	Receptacle	Solder	0.059 in	1.5 mm	Forked	0.8 mm	0.031 in	Solder Retention	20	85 °C	-40 C	Surface Mount			2	Polyphenylene Sulfide (PPS) Glass Filled		Copper Alloy	0.5 A		Push-Pull	General Purpose	0.128 in	3.25 mm	UL94 V-0	Gold
JAE Electronics IL-WX-20SB-VF-BE	Square			All	Black	Receptacle	Solder	0.059 in	1.5 mm	Forked	0.8 mm	0.031 in	Board Guide Solder Retention	20	85 °C	-40 C	Surface Mount			2	Polyphenylene Sulfide (PPS) Glass Filled		Copper Alloy	0.5 A		Push-Pull	General Purpose	0.128 in	3.25 mm	UL94 V-0
JAE Electronics IL-WX-20S-VF-B-E1000E	Square			All	Black	Receptacle	Solder	0.059 in	1.5 mm	Forked	0.8 mm	0.031 in	Solder Retention	20	85 °C	-40 C	Surface Mount			2	Polyphenylene Sulfide (PPS) Glass Filled		Copper Alloy	0.5 A		Push-Pull	General Purpose	0.128 in	3.25 mm	UL94 V-0
JAE Electronics IL-WX-20S-VF-BE	Square			All	Black	Receptacle	Solder	0.059 in	1.5 mm	Forked	0.8 mm	0.031 in	Solder Retention	20	85 °C	-40 C	Surface Mount			2	Polyphenylene Sulfide (PPS) Glass Filled		Copper Alloy	0.5 A		Push-Pull	General Purpose	0.128 in	3.25 mm	UL94 V-0
JAE Electronics IL-WX-20P-VF-BE	Square	1.8 mm	0.071 in	All	Black	Header	Solder	0.059 in	1.5 mm	Male Pin	0.8 mm	0.031 in	Solder Retention	20	85 °C	-40 C	Surface Mount	0.144 "	3.66 mm	2	Polyphenylene Sulfide (PPS)	Tin	Brass	500 mA	Shrouded - 4 Wall	Push-Pull
