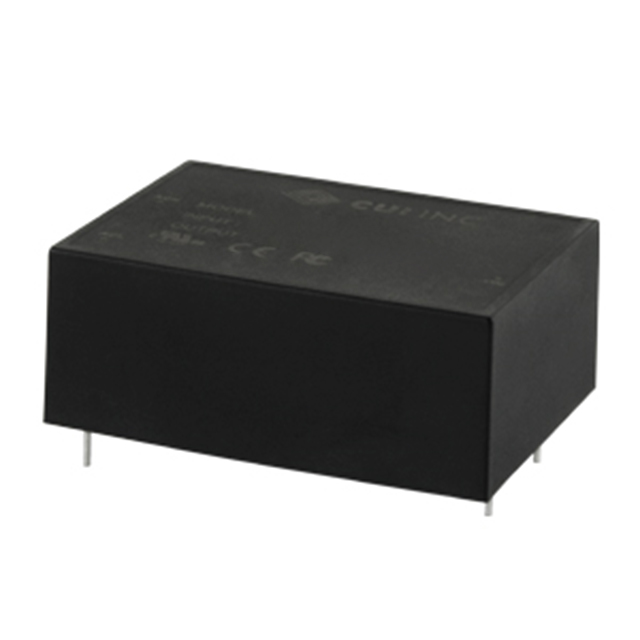

PSK-20B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 20W
| Part | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Load Regulation | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Efficiency | Current - Output (Max) [Max] | Type | Line Regulation | Applications | Package / Case | Standard Number | Power (Watts) | Number of Outputs | Features | Line Regulation | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Through Hole | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | 1 % | CB Scheme EN FCC IEC UL | -25 °C | 70 °C | 24 V | 86.06 % | 850 mA | Enclosed | Ý0.5% | ITE (Commercial) | 4-DIP Module | 60950-1 61000-3-2 61000-3-3 62368-1 | 20 W | 1 | Universal Input | ||||
CUI Inc. | Through Hole | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | CB Scheme EN FCC IEC UL | -25 °C | 70 °C | 48 V | 86 % | 420 mA | Enclosed | ITE (Commercial) | 4-DIP Module | 60950-1 61000-3-2 61000-3-3 62368-1 | 20 W | 1 | Universal Input | 0.5 % | ±1% | ||||
CUI Inc. | Through Hole | 0.91 " | 45 mm | 62 mm | 1.77 in | 23.1 mm | 2.44 in | CB Scheme EN FCC IEC UL | -25 °C | 70 °C | 5 V | 82.85 % | 3.5 A | Enclosed | ITE (Commercial) | 4-DIP Module | 60950-1 61000-3-2 61000-3-3 62368-1 | 20 W | 1 | Universal Input | 0.5 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC |
