2PH2R Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 6POS 2MM

Part	Contact Finish - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Shrouding	Insulation Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Shape	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Length - Post [custom]	Contact Length - Post	Fastening Type	Number of Rows [custom]	Contact Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Mounting Type	Material Flammability Rating	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating

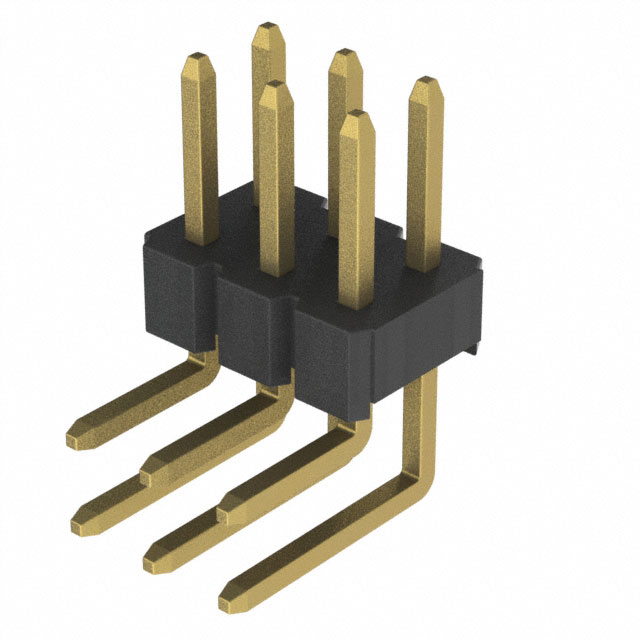

Adam Tech 2PH2R-06-UA	Gold	Brass	2 mm	0.079 in	All	Unshrouded	Polybutylene Terephthalate (PBT)	Header	Flash	Flash	Square	4 mm	0.157 in	6	0.11 in	2.79 mm	Push-Pull	2	Male Pin	0.079 "	2 mm	250 VAC	0.154 in	3.91 mm	Right Angle Through Hole	UL94 V-0	Black	Solder	-55 C	105 ░C	Gold

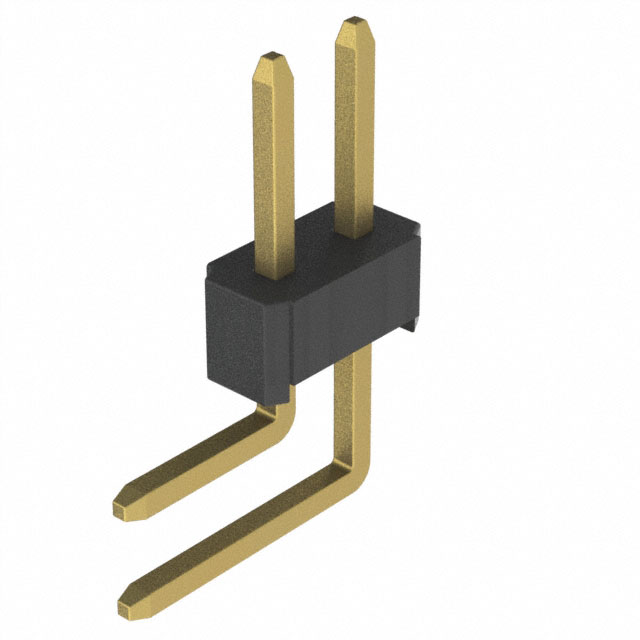

Adam Tech 2PH2R-02-UA	Gold	Brass	2 mm	0.079 in	All	Unshrouded	Polybutylene Terephthalate (PBT)	Header	Flash	Flash	Square	4 mm	0.157 in	2	0.11 in	2.79 mm	Push-Pull	2	Male Pin	0.079 "	2 mm	250 VAC	0.154 in	3.91 mm	Right Angle Through Hole	UL94 V-0	Black	Solder	-55 C	105 ░C	Gold

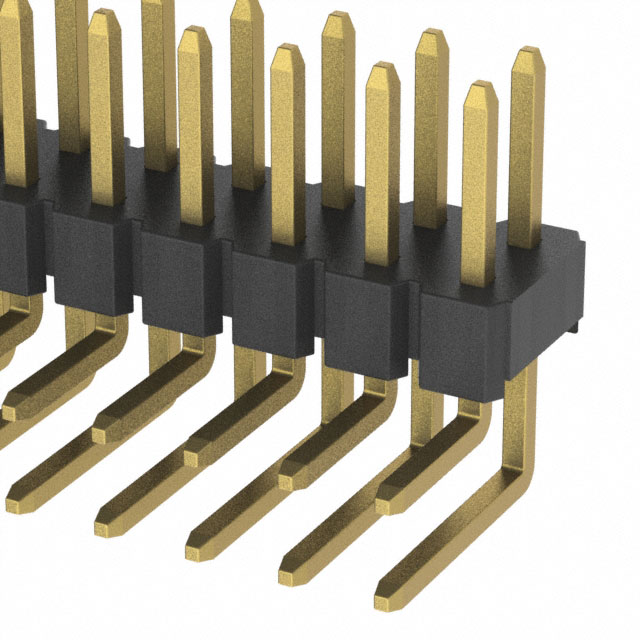

Adam Tech 2PH2R-20-UA	Gold	Brass	2 mm	0.079 in	All	Unshrouded	Polybutylene Terephthalate (PBT)	Header	Flash	Flash	Square	4 mm	0.157 in	20	0.11 in	2.79 mm	Push-Pull	2	Male Pin	0.079 "	2 mm	250 VAC	0.154 in	3.91 mm	Right Angle Through Hole	UL94 V-0	Black	Solder	-55 C	105 ░C	Gold

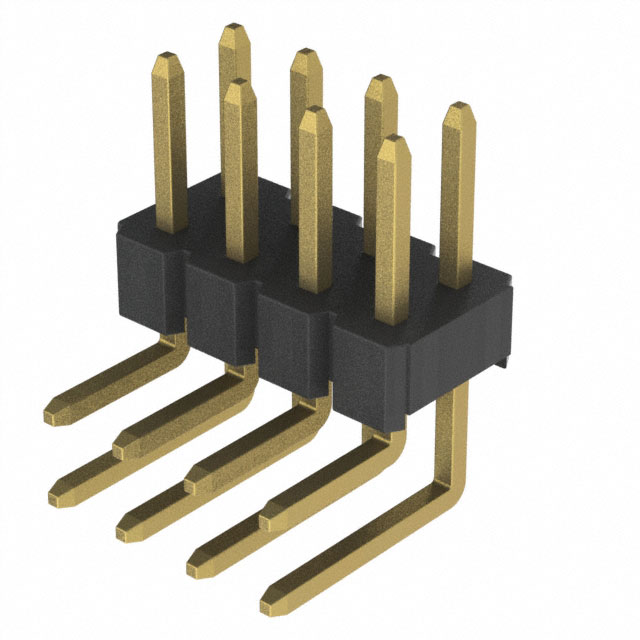

Adam Tech 2PH2R-08-UA	Gold	Brass	2 mm	0.079 in	All	Unshrouded	Polybutylene Terephthalate (PBT)	Header	Flash	Flash	Square	4 mm	0.157 in	8	0.11 in	2.79 mm	Push-Pull	2	Male Pin	0.079 "	2 mm	250 VAC	0.154 in	3.91 mm	Right Angle Through Hole	UL94 V-0	Black	Solder	-55 C	105 ░C	Gold
