L1007C Series
Manufacturer: KEMET
Beta
⌘K

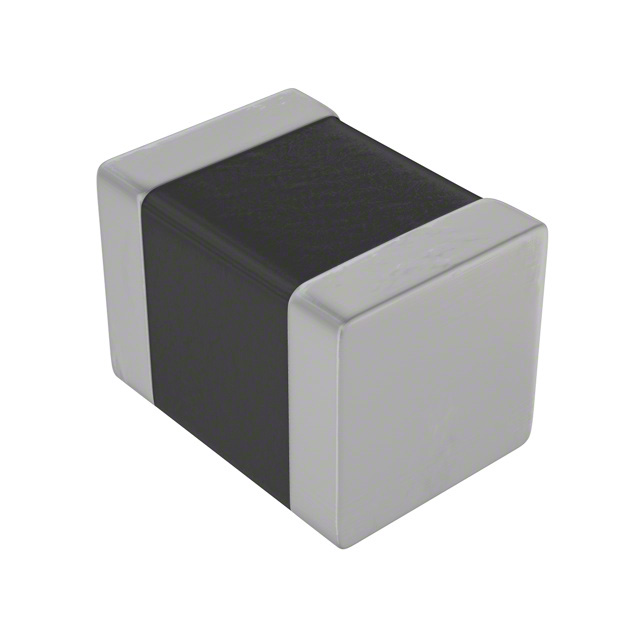

FIXED IND 4.7UH 240MA 130MOHM SM
| Part | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Frequency - Self Resonant | Inductance | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Inductance Frequency - Test | Material - Core | Tolerance | Supplier Device Package | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Unshielded | 0.071 in | 2.5 mm | 0.098 in | 1.8 mm | 46 MHz | 4.7 ÁH | 1007 (2518 Metric) | Surface Mount | -40 C | 105 ░C | 7.96 MHz | Ferrite | 20 % | 1007 (2518 Metric) | 0.24 A | 0.079 in | 2 mm | Drum Core Wirewound | 130 mOhm |
