ESD0514 Series
Manufacturer: Micro Commercial Components
Beta
⌘K

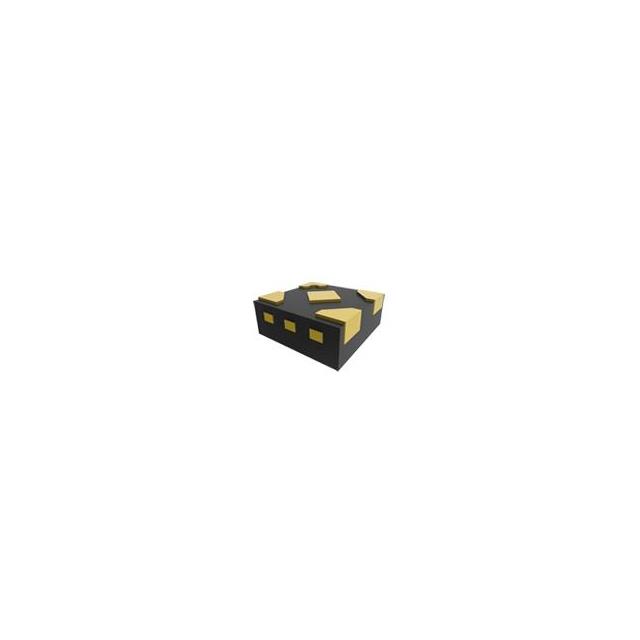

TVS DIODE 5VWM 12VC DFN0808-4
| Part | Bidirectional Channels [custom] | Supplier Device Package | Current - Peak Pulse (10/1000µs) | Voltage - Breakdown (Min) [Min] | Power Line Protection | Package / Case | Power - Peak Pulse | Capacitance @ Frequency | Voltage - Clamping (Max) @ Ipp | Mounting Type | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Reverse Standoff (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Micro Commercial Components | 4 | DFN0808-4 | 3.5 A | 6 V | 4-XFDFN Exposed Pad | 40 W | 5 pF | 12 V | Surface Mount | General Purpose | Zener | 125 ¯C | -55 °C | 5 V |
