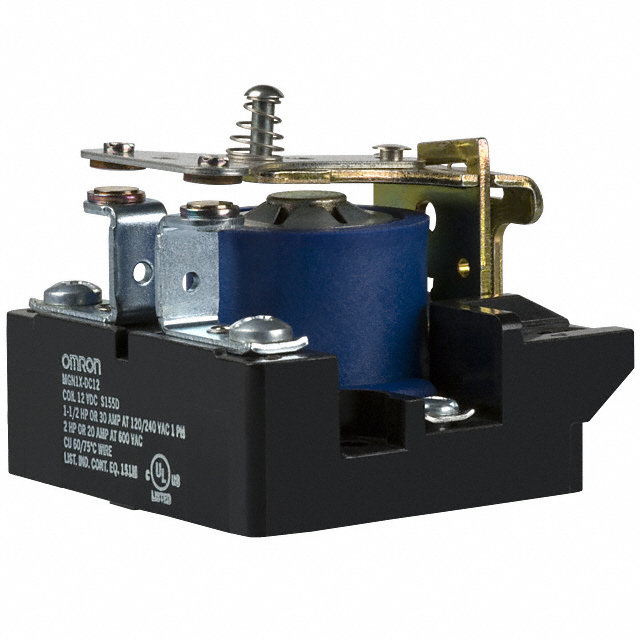

MGN1X Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 12V
| Part | Relay Type | Contact Form | Coil Insulation | Coil Resistance | Coil Voltage | Contact Rating (Current) | Coil Type | Termination Style | Switching Voltage | Release Time | Must Operate Voltage | Load - Max Switching | Coil Current | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | General Purpose | SPST-NO (DM) (1 Form X) | Class F | 2.9 Ohms | 12 VAC/DC | 30 A | Non Latching | Screw Terminal | 28 VDC 600 VAC | 30 ms | 10.2 VAC | 840 W 18000 VA | 791 mA | -45 °C | 80 C | Chassis Mount | 30 ms |
Omron Electronics Inc-EMC Div | General Purpose | SPST-NO (DM) (1 Form X) | Class F | 290 Ohms | 24 VDC | 30 A | Non Latching | Screw Terminal | 28 VDC 600 VAC | 30 ms | 18 VDC | 840 W 18000 VA | 83.3 mA | -40 °C | 115 °C | Chassis Mount | 30 ms |
Omron Electronics Inc-EMC Div | General Purpose | SPST-NO (DM) (1 Form X) | Class F | 295 Ohms | 120 VAC | 30 A | Non Latching | Screw Terminal | 28 VDC 600 VAC | 30 ms | 102 VAC | 840 W 18000 VA | -45 °C | 80 C | Chassis Mount | 30 ms |
