TA Series

Catalog

SEALED MINI-XLR, CABLE END, 4-PIN FEMALE, 0.140" [3.6MM] - 0.160" [4.1MM] CABLE SIZE

Part	Fastening Type	Contact Material	Primary Material	Ingress Protection	Shell Size - Insert	Voltage Rating	Current Rating (Amps)	Number of Positions	Mounting Type	Color	Connector Type	Insert Material	Applications	Backshell Material, Plating	Features	Orientation	Shell Finish	Contact Finish - Mating	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Shielding	Termination

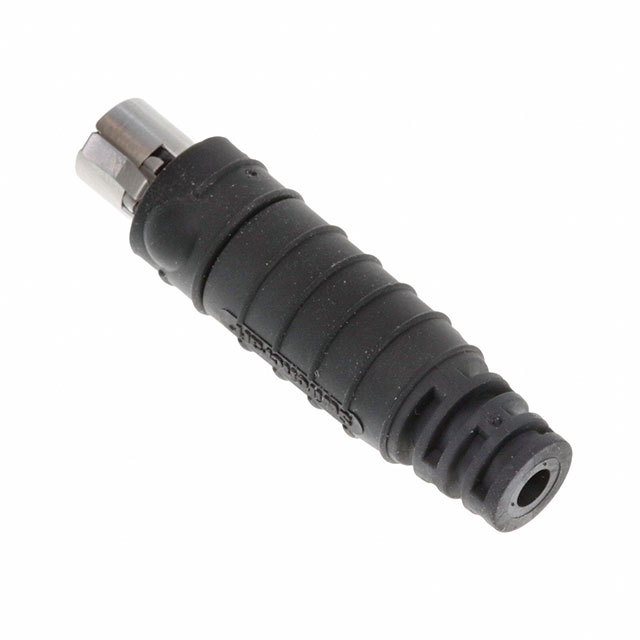

SWITCHCRAFT/CONXALL TA4FS15	Latch Lock	Copper Alloy	Metal	IP65 IP66	Mini XLR	125 VAC	5 A	4	Free Hanging (In-Line)	Black Silver	Plug Female Sockets	Thermoplastic	Audio Medical	Thermoplastic Thermoplastic Rubber	Backshell Cable Clamp Strain Relief	Keyed	Nickel	Silver	4.06 mm	0.16 in	0.14 in	3.56 mm	Copper Alloy
SWITCHCRAFT/CONXALL TA5MS15	Latch Lock	Copper Alloy	Metal	IP65 IP66	Mini XLR	125 VAC	4 A	5	Free Hanging (In-Line)	Black Silver	Receptacle Male Pins	Thermoplastic	Audio Medical	Thermoplastic Thermoplastic Rubber	Backshell Cable Clamp Strain Relief	Keyed	Nickel	Silver	4.06 mm	0.16 in	0.14 in	3.56 mm	Copper Alloy

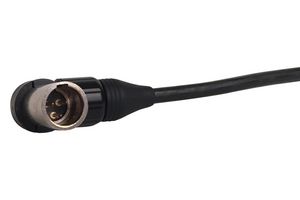

SWITCHCRAFT/CONXALL TARA3MX	Latch Lock	Copper Alloy	Metal		Mini XLR	125 VAC	4 A		Free Hanging (In-Line) Right Angle	Black Silver	Receptacle Male Pins		Audio Communication Systems Industrial Medical		Backshell Cable Clamp Ground Strain Relief	Keyed	Nickel	Silver	3.81 mm	0.15 in	0.12 in	3.05 mm	Copper Alloy	-55 C	85 °C

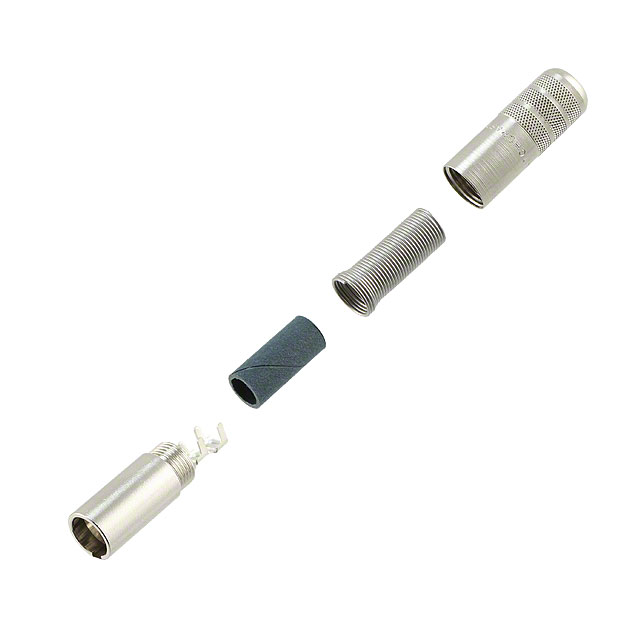

SWITCHCRAFT/CONXALL TA3MSHF	Latch Lock	Copper Alloy	Metal		Mini XLR	125 VAC	5 A		Free Hanging (In-Line)	Silver	Receptacle Male Pins	Thermoplastic	Audio Medical	Copper Alloy Nickel	Backshell Cable Clamp Ground Strain Relief	Keyed	Nickel	Silver					Copper Alloy	-55 C	85 °C	UL94 V-0	Shielded
SWITCHCRAFT/CONXALL TA5FS25	Latch Lock	Copper Alloy	Metal		Mini XLR	125 VAC	4 A	5	Free Hanging (In-Line)	Silver	Plug Female Sockets	Thermoplastic	Audio Medical	Copper Alloy Nickel	Backshell Cable Clamp	Keyed	Nickel	Silver					Copper Alloy				Shielded	Solder
