739W-X2 Series

Manufacturer: Qualtek

Catalog

PWR ENT RCPT NEMA5-15 PANEL IDC

Part	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Connector Style	Connector Type	Termination	Approval Agency	Voltage Rating	Current Rating (Amps)	Termination	Termination

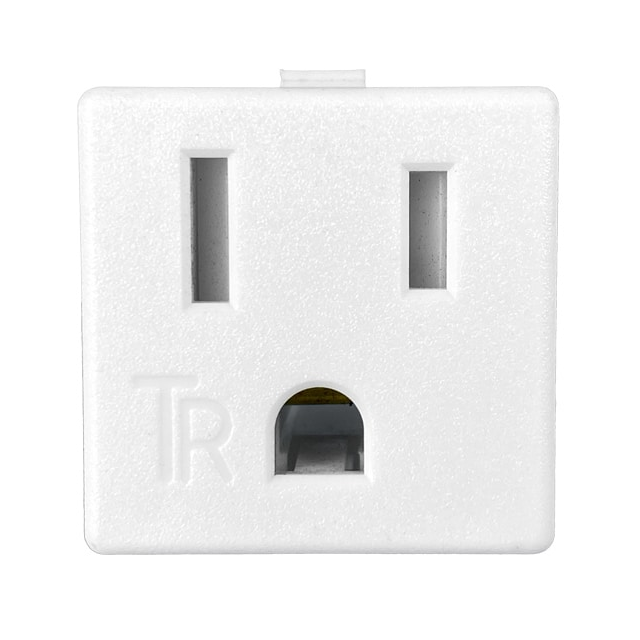

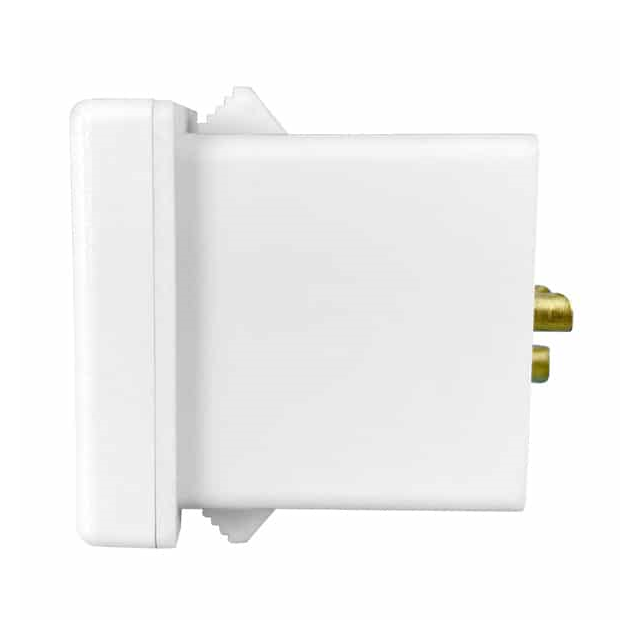

Qualtek 739W-X2/45-WH1	Tamper Resistant Terminating Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.079 "	0.031 "	2 mm	NEMA 5-15R	Receptacle Female Sockets	IDC	cUL UL	125 VAC	15 A
Qualtek 739W-X2/40	Terminating Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-15R	Receptacle Female Sockets	IDC	cUL UL	125 VAC	15 A

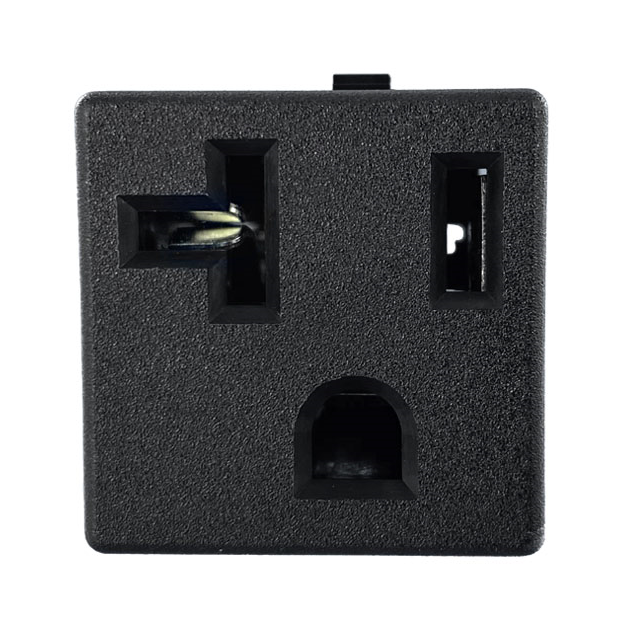

Qualtek 739W-X2/30	Terminating Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-20R	Receptacle Female Sockets	Solder	cUL UL	125 VAC	20 A

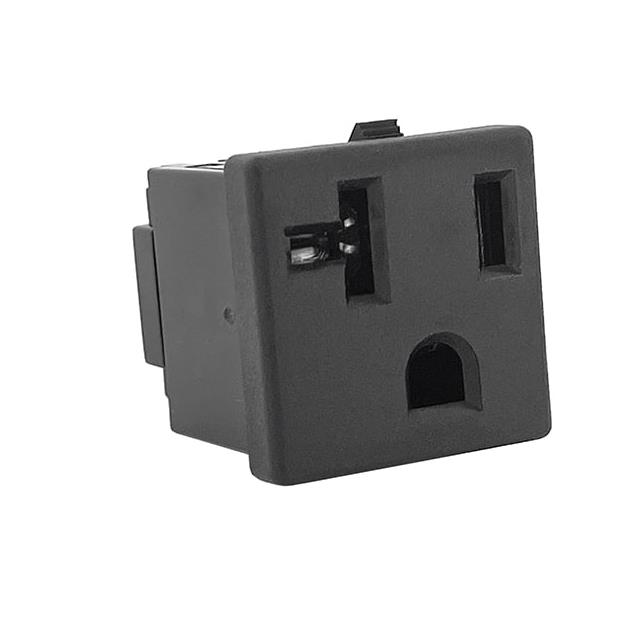

Qualtek 739W-X2/31				Panel Mount Snap-In					NEMA 5-20R	Receptacle Female Sockets	IDC		125 VAC	20 A

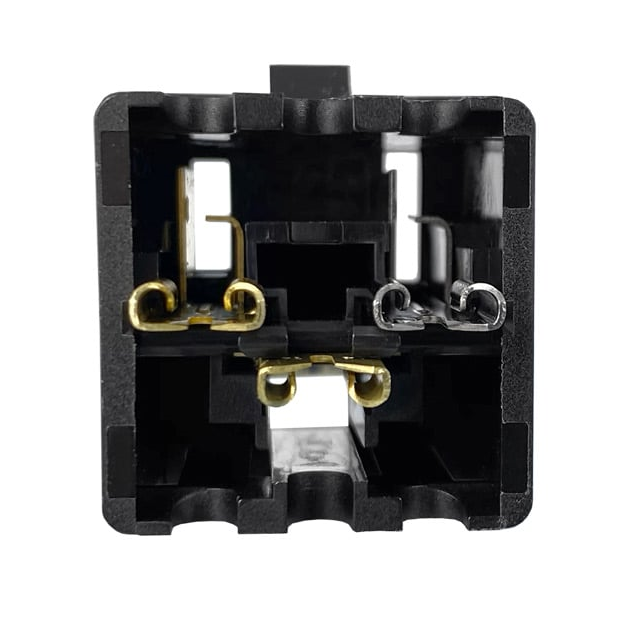

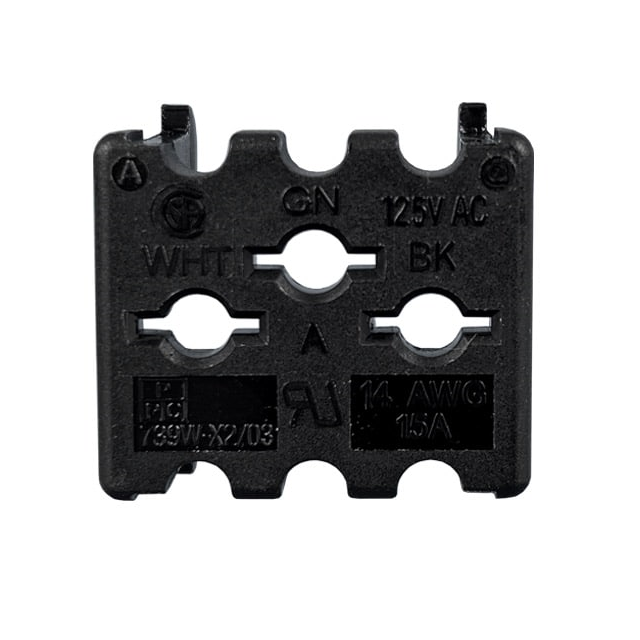

Qualtek 739W-X2/03	Terminating Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-15R	Receptacle Female Sockets	IDC	CSA UL	125 VAC	15 A

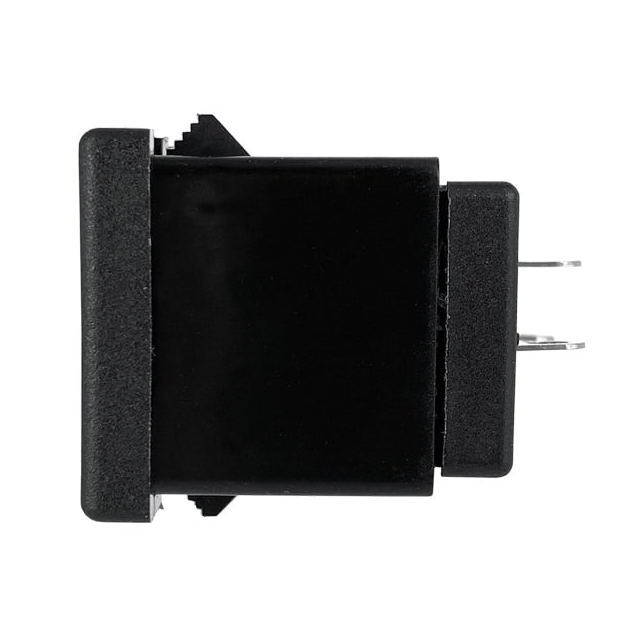

Qualtek 739W-X2/32-A		24.5 mm	24.5 mm	Panel Mount Snap-In	0.8 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-15R	Receptacle Female Sockets	IDC Solder	cUL UL	125 VAC	15 A

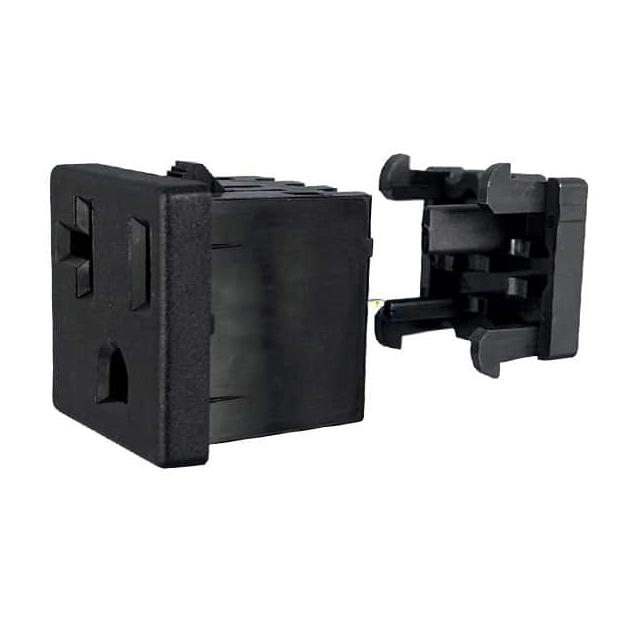

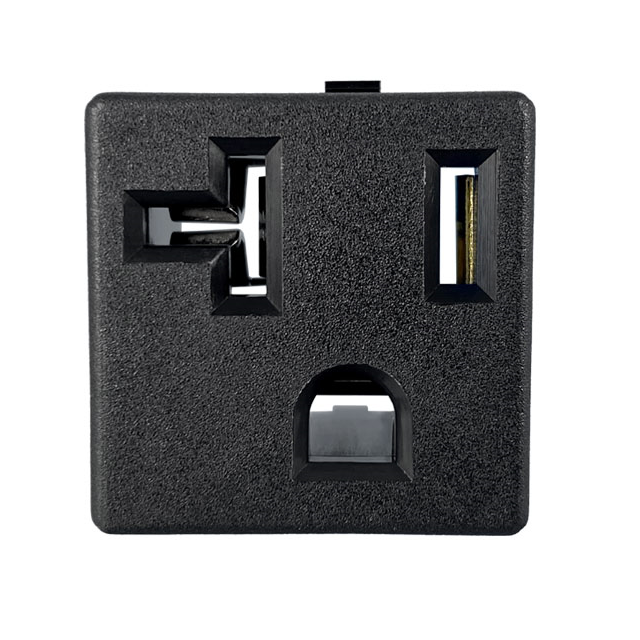

Qualtek 739W-X2/20	Terminating Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-20R	Receptacle Female Sockets	IDC	cUL UL	125 VAC	20 A

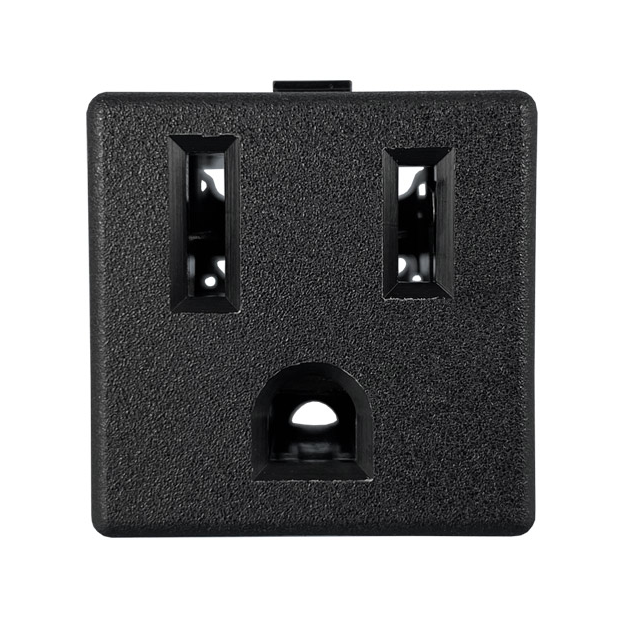

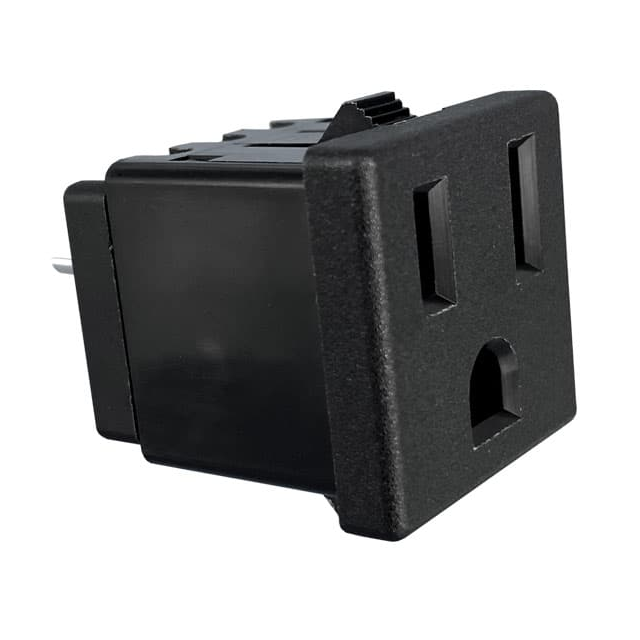

Qualtek 739W-X2/32		24.5 mm	24.5 mm	Panel Mount Snap-In	0.8 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-15R	Receptacle Female Sockets	IDC Solder	cUL UL	125 VAC	15 A

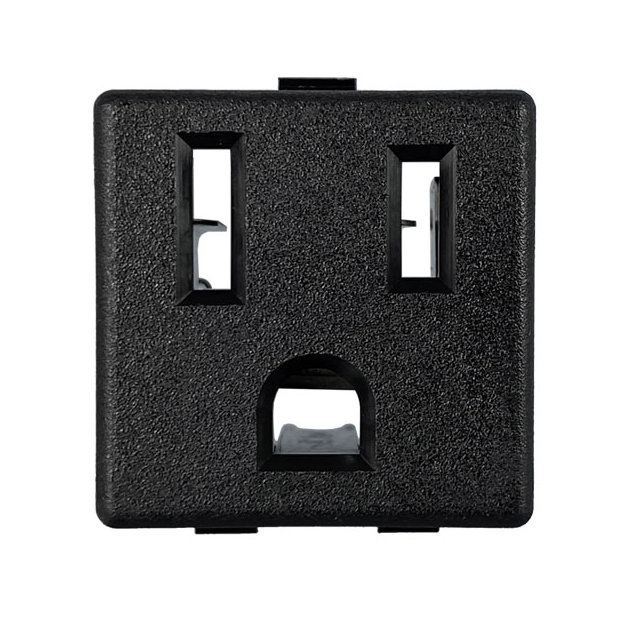

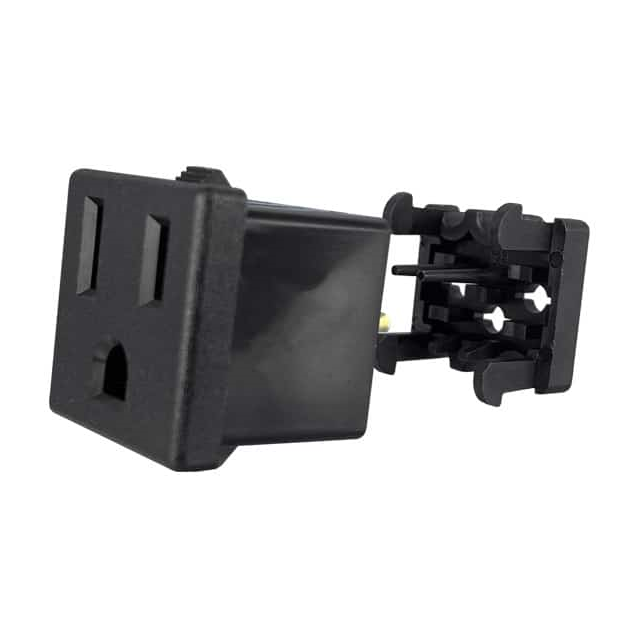

Qualtek 739W-X2/04	Terminating Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.071 "	0.031 "	1.8 mm	NEMA 5-15R	Receptacle Female Sockets	IDC Quick Connect	CSA cUL UL	125 VAC	10 A	0.189 "	4.8 mm

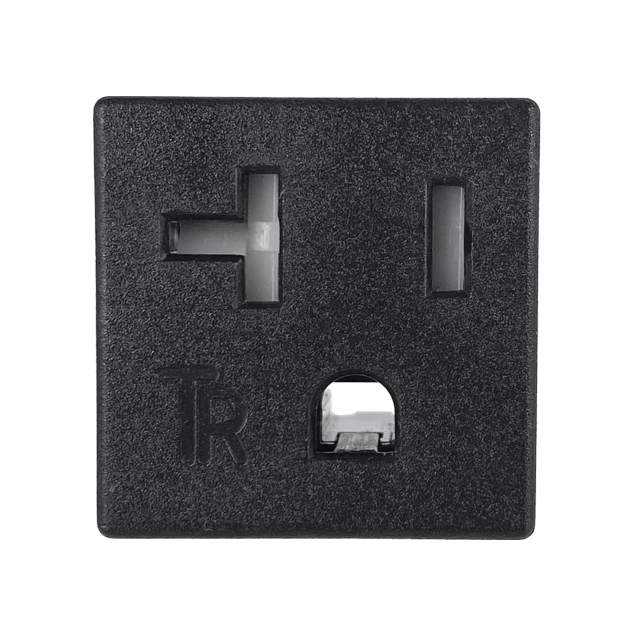

Qualtek 739W-X2/55	Cover	24.5 mm	24.5 mm	Panel Mount Snap-In	0.79 mm	0.079 "	0.031 "	2 mm	NEMA 5-20R	Receptacle Female Sockets	IDC	cUL UL	125 VAC	20 A
