Resettable Fuses - PPTC Polyswitch 0.26A Restive Range -2
Resettable Fuses - PPTC Polyswitch 0.26A Restive Range -2
| Part | Current - Trip (It) | Mounting Type | Package / Case | Current - Hold (Ih) (Max) [Max] | Type | Time to Trip | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Max [Max] | Current - Max [Max] | Resistance - Initial (Ri) (Min) [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Thickness (Max) [Max] | Thickness (Max) | Resistance - Post Trip (R1) (Max) [Max] [custom] | Approval Agency | Size / Dimension [y] | Resistance - Post Trip (R1) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

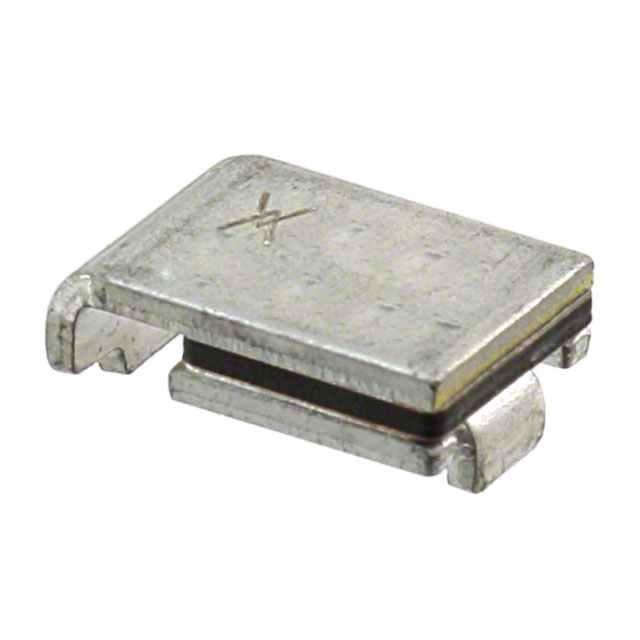

 LITTELFUSE | 260 mA | Surface Mount | 2-SMD | 130 mA | Polymeric | 2.5 s | 85 °C | -40 C | 60 V | 1 A | 6.5 Ohms | 7.4 mm | 0.291 " | 8.95 mm | 0.352 in | 0.134 in | 3.4 mm | 15 Ohms | |||
 LITTELFUSE | 260 mA | Surface Mount | 2-SMD | 130 mA | Polymeric | 2.5 s | 85 °C | -40 C | 60 V | 1 A | 6.5 Ohms | 0.29 in | 8.95 mm | 0.353 in | 0.134 in | 3.4 mm | 15 Ohms | CSA TUV UL | 7.4 mm | ||
LITTELFUSE | 260 mA | Surface Mount | 2-SMD | 130 mA | Polymeric | 1.5 s | 85 °C | -40 C | 60 V | 1 A | 9 Ohms | 7.4 mm | 0.291 " | 8.95 mm | 0.352 in | 0.134 in | 3.4 mm | CSA TUV UL | 20 Ohms |
