NDD Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
D-SUB MICRO-D CONNECTORS NANO MICROMINI BOARD MOUNT CONN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Dielectric Material | Contact Finish | Contact Type | Flange Feature [Max] | Flange Feature [Min] | Flange Feature | Mounting Type | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Termination | Number of Rows [custom] | Connector Style | Number of Positions | Length [x] | Length [x] | 2nd Connector | Shielding | Type | Number of Positions [custom] | 1st Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ITT Cannon, LLC | -55 C | 125 °C | Copper Alloy | Black | Liquid Crystal Polymer (LCP) | Gold | Signal | 80 | 0 | Housing/Shell | Right Angle Through Hole | Aluminum Yellow Chromate Plated Cadmium | 50 µin | 1.27 µm | Plug Male Pins | Solder | 2 | D-Type Nano-D | 25 | |||||||
 ITT Cannon, LLC | Individual Yellow | Gold | 50 µin | 1.27 µm | 457.2 mm | 1.5 ft | Individual Wire Leads | Unshielded | D-Type Nano-D | 31 | Male Pins Plug | |||||||||||||||

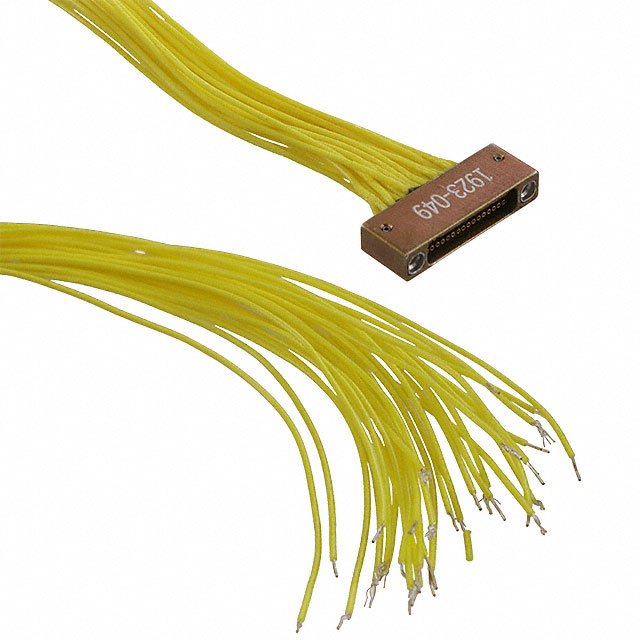

 ITT Cannon, LLC | Individual Yellow | Gold | 50 µin | 1.27 µm | 457.2 mm | 1.5 ft | Individual Wire Leads | Unshielded | D-Type Nano-D | 31 | Receptacle Female Sockets |
