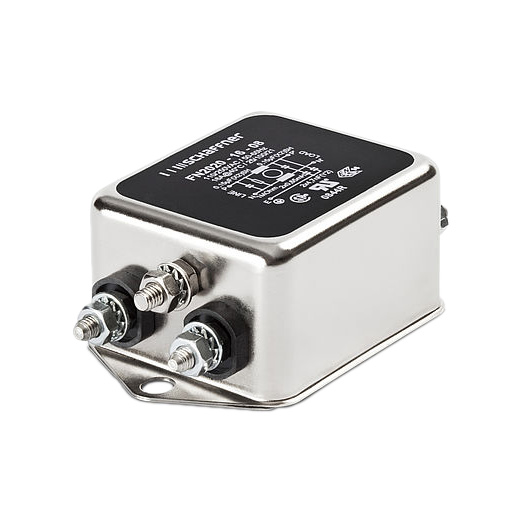

Schaffner FN2020 Series
Power Line Filters 20A, 0.74mA, 0.6mH 1 PHASE EMI
Manufacturer: TE Connectivity AMP Connectors
Catalog
Power Line Filters 20A, 0.74mA, 0.6mH 1 PHASE EMI
Beta
⌘K
Power Line Filters 20A, 0.74mA, 0.6mH 1 PHASE EMI
Power Line Filters 20A, 0.74mA, 0.6mH 1 PHASE EMI
Power Line Filters 20A, 0.74mA, 0.6mH 1 PHASE EMI
| Part | Inductance | Current | Voltage - Rated AC | Filter Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Configuration | Applications | Approval Agency | Frequency - Operating | Mounting Type | Voltage - Rated DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 600 µH | 20 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | Safety | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |

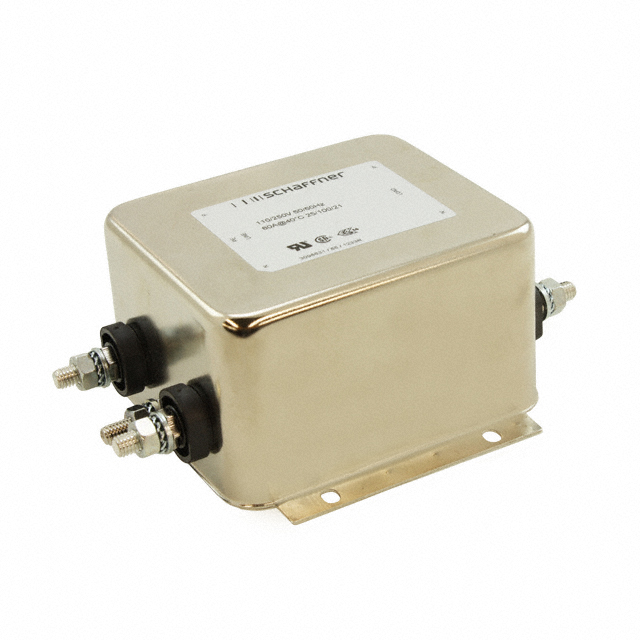

 TE Connectivity AMP Connectors | 1 mH | 60 A | 250 V | Single Phase | 100 °C | -25 °C | Threaded Post (M6) | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |
 TE Connectivity AMP Connectors | 1 mH | 60 A | 250 V | Single Phase | 100 °C | -25 °C | Threaded Post (M6) | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |

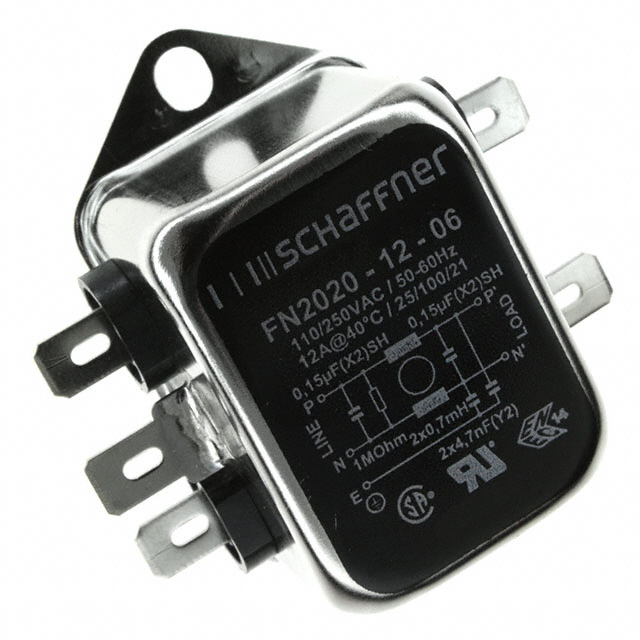

 TE Connectivity AMP Connectors | 700 µH | 12 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |
 TE Connectivity AMP Connectors | 2.5 mH | 3 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |
 TE Connectivity AMP Connectors | 600 µH | 20 A | 250 V | Single Phase | 100 °C | -25 °C | Threaded Post (M4) | Single Stage | Safety | CE CQC CSA ENEC UKCA UR | DC ~ 400Hz | Chassis Mount | 250 V |
TE Connectivity AMP Connectors | 600 µH | 20 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |
 TE Connectivity AMP Connectors | 12 mH | 1 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |

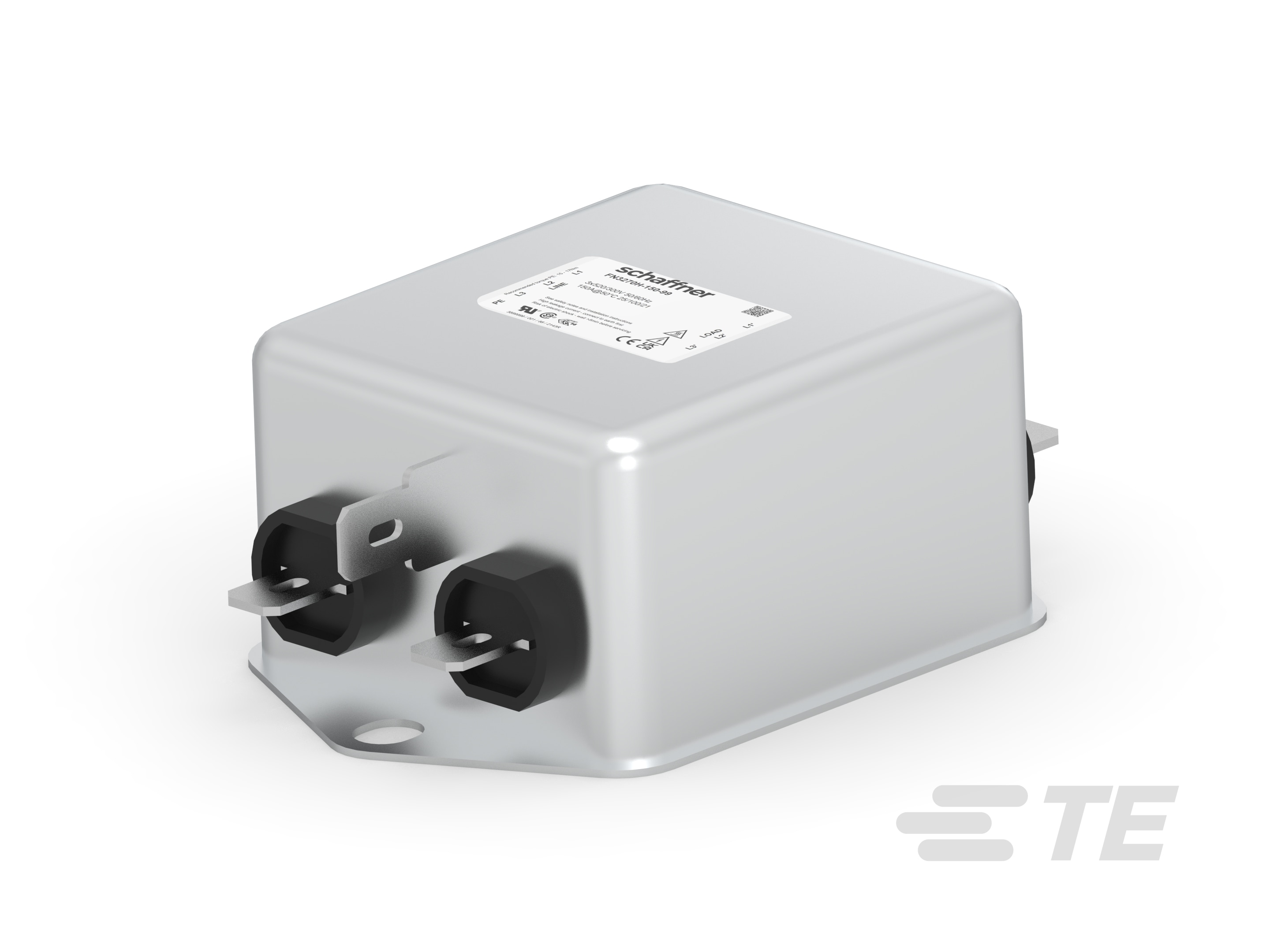

 TE Connectivity AMP Connectors | 650 µH | 16 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | General Purpose | CSA ENEC UR | DC ~ 400Hz | Chassis Mount | |
TE Connectivity AMP Connectors | 800 µH | 10 A | 250 V | Single Phase | 100 °C | -25 °C | Quick Connect | Single Stage | Safety | CSA ENEC UR | DC ~ 400Hz | Chassis Mount |
