YB26CK Series

Catalog

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Electrical Life	Mechanical Life	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current Rating (Amps)	Mounting Type	Circuit	Panel Cutout Dimensions [diameter]	Actuator Marking	Color - Actuator/Cap	Termination Style	Voltage Rating - AC	Switch Function	Actuator Type	Features	Illumination Type, Color	Voltage Rating - DC

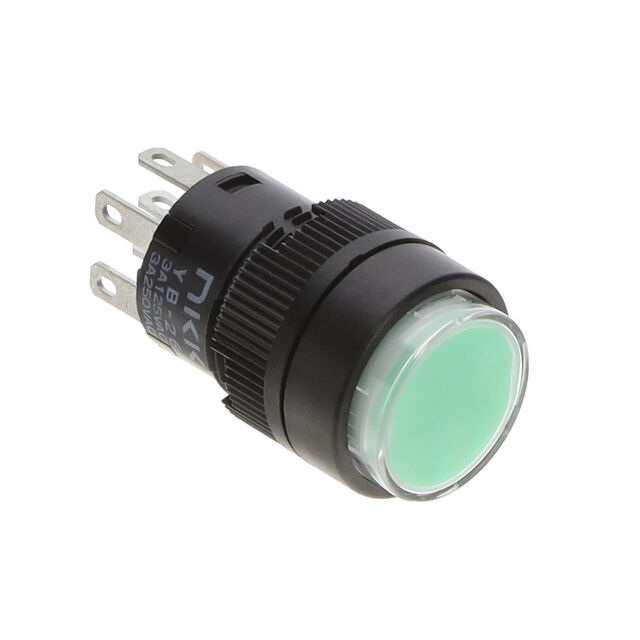

NKK Switches YB26CKW01-5F-JF	100000 Cycles	200000 Cycles	2.2 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	Green LED	30 V
NKK Switches YB26CKW01-1F12-JB	100000 Cycles	200000 Cycles	12 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	Green LED	30 V
NKK Switches YB26CKW01-5C24-JC	100000 Cycles	200000 Cycles	24 V	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	LED Red	30 V
NKK Switches YB26CKW01-6G-JB	100000 Cycles	200000 Cycles	3.6 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	Blue LED	30 V
NKK Switches YB26CKW01-5C12-JC	100000 Cycles	200000 Cycles	12 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	LED Red	30 V
NKK Switches YB26CKW01-5F12-JB	100000 Cycles	200000 Cycles	2 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm		Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round		Green LED	30 V

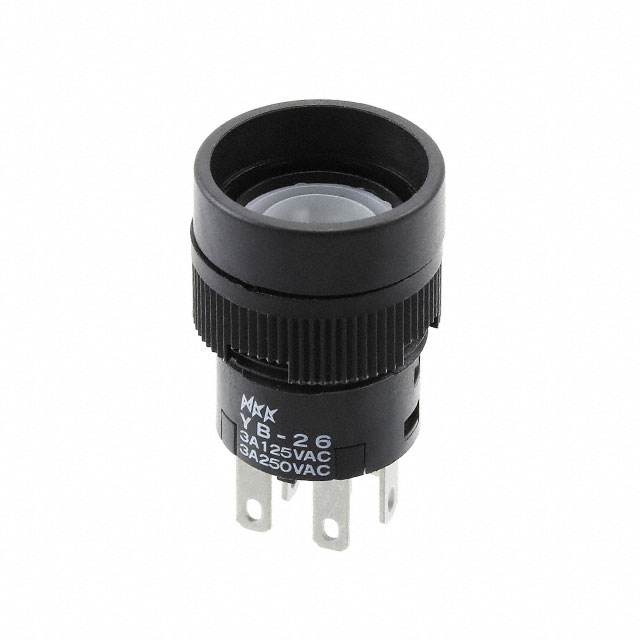

NKK Switches YB26CKW01	100000 Cycles	200000 Cycles		70 °C	-25 °C	Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking		Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Plunger for Cap	Voltage Reduction Lighting		30 V
NKK Switches YB26CKW01-2CF02-JB	100000 Cycles	200000 Cycles	2 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	Green/Red LED	30 V
NKK Switches YB26CKW01-6F-JB	100000 Cycles	200000 Cycles	3.3 VDC	50 °C	-25 °C	Illuminated Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	Clear	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting	Green LED	30 V
NKK Switches YB26CKW01-BB	100000 Cycles	200000 Cycles		70 °C	-25 °C	Standard	3 A	Panel Mount Front	DPDT	16 mm	No Marking	White	Solder Quick Connect - 0.110" (2.8mm)	125 V	On-On	Button Round	Voltage Reduction Lighting		30 V
