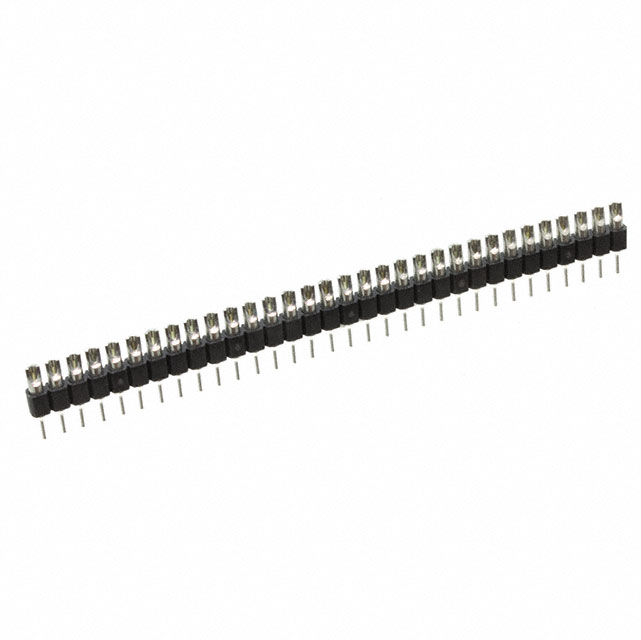

D01-993 Series
Manufacturer: Harwin Inc.
Beta
⌘K

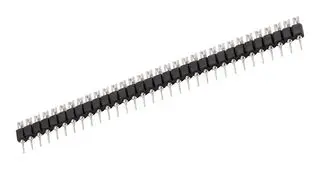

SIP SOCKET, 32POS, 2.54MM, TIN, TH ROHS COMPLIANT: YES
| Part | Material Flammability Rating | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Resistance | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Post [custom] | Housing Material | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Mounting Type | Contact Material - Mating | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | UL94 V-0 | 0.121 " | 3.08 mm | 1.5 A | 23 mOhm | 32 | 1 x 32 | 0.1 in | 2.54 mm | -55 C | 125 °C | Brass | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.1 " | 2.54 mm | Tin | Through Hole | Brass | SIP |
