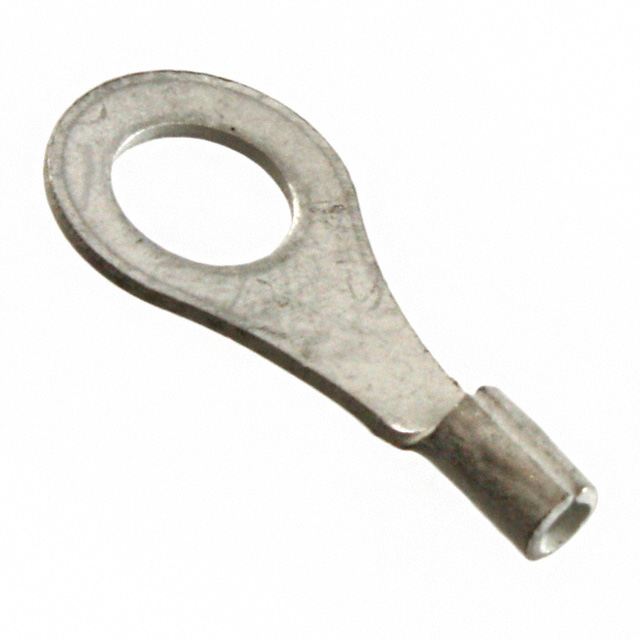

331401 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RING CIRC 22-26AWG #6 CRIMP
| Part | Thickness [custom] | Thickness [custom] | Contact Finish | Features | Width - Outer Edges [y] | Width - Outer Edges [y] | Insulation | Mounting Type | Stud/Tab Size | Termination | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.46 mm | 0.018 in | Tin | Brazed Seam Serrated Termination | 0.25 " | 6.35 mm | Non-Insulated | Free Hanging (In-Line) | 6 Stud | Crimp | 0.544 in | 13.82 mm | 22 AWG | 26 AWG | Circular | Copper |
