HCB1380 Series

Manufacturer: Delta Electronics/Components

Catalog

FIXED IND 260NH 50A 0.26MOHM SMD

Part	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Current - Saturation (Isat)	Inductance	Inductance Frequency - Test	Current Rating (Amps)	Tolerance	DC Resistance (DCR)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Delta Electronics/Components HCB1380-261	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	63 A	260 nH	100 kHz	50 A	20 %	0.26 mOhm	Surface Mount
Delta Electronics/Components HCB1380-211L	Unshielded	0.512 "	0.524 "	13 mm	13.3 mm	125 °C	-40 C			Nonstandard	80 A	210 nH	100 kHz	68 A	20 %	0.165 mOhm	Surface Mount	0.323 in	8.2 mm
Delta Electronics/Components HCB1380-441H1	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard		440 nH	100 kHz	45 A	20 %	0.32 mOhm	Surface Mount
Delta Electronics/Components HCB1380-361H	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	43 A	360 nH	100 kHz	35 A	20 %	0.53 mOhm	Surface Mount
Delta Electronics/Components HCB1380-211	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	80 A	210 nH	100 kHz	50 A	20 %	0.26 mOhm	Surface Mount
Delta Electronics/Components HCB1380-501	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	28 A	500 nH	100 kHz	50 A	20 %	0.26 mOhm	Surface Mount
Delta Electronics/Components HCB1380-441L	Unshielded	0.512 "	0.524 "	13 mm	13.3 mm	125 °C	-40 C			Nonstandard		440 nH	100 kHz	68 A	20 %	0.165 mOhm	Surface Mount	0.323 in	8.2 mm
Delta Electronics/Components HCB1380-261H	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	63 A	260 nH	100 kHz	35 A	20 %	0.53 mOhm	Surface Mount
Delta Electronics/Components HCB1380-361	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	43 A	360 nH	100 kHz	50 A	20 %	0.26 mOhm	Surface Mount

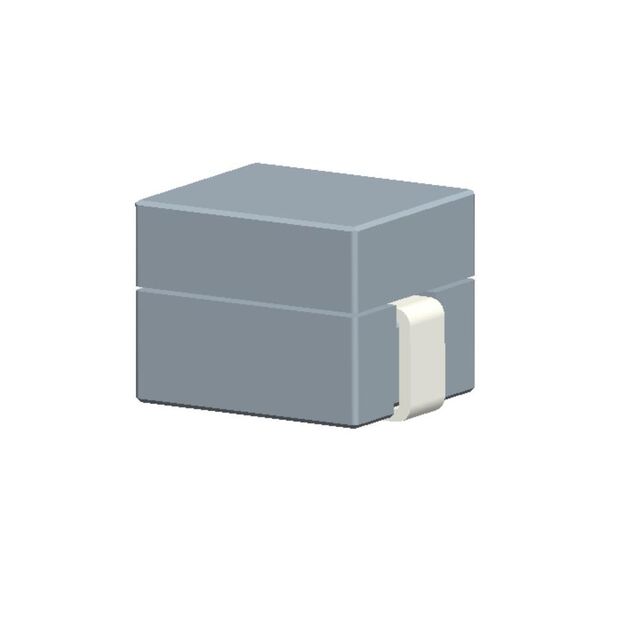

Delta Electronics/Components HCB1380-251	Unshielded	0.512 "	0.512 "	13 mm	13 mm	125 °C	-40 C	8 mm	0.315 in	Nonstandard	66 A	250 nH	100 kHz	50 A	20 %	0.26 mOhm	Surface Mount
