228HMVA Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Type	Circuit	Mounting Type	Operating Force	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Actuator Orientation	Contact Rating @ Voltage	Illumination Type, Color	Outline [x]	Outline [y]	Termination Style	Actuator Height off PCB, Vertical [z]	Illumination Voltage (Nominal)

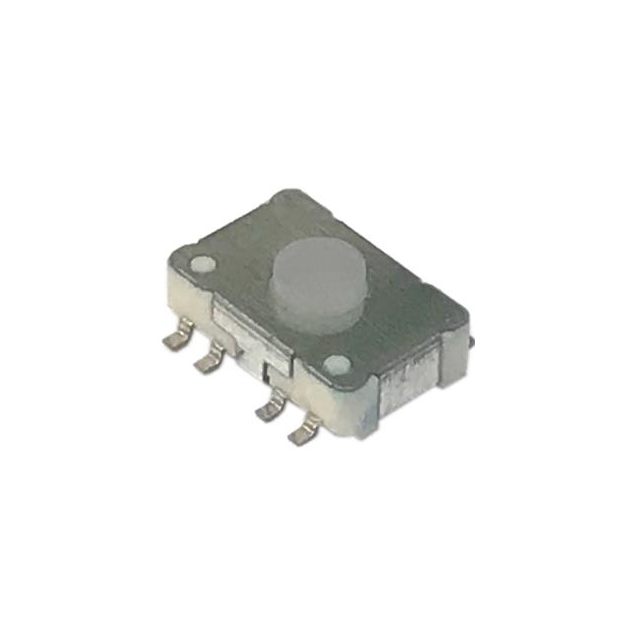

CTS Electrocomponents 228HMVARBFR	0.5 mm	100000 Cycles	Standard	SPST-NO	Surface Mount	160 gf	Off-Mom	-20 ░C	70 °C	Illuminated	Top Actuated	0.05 A 12 VDC	Blue LED Red	8 mm	5.2 mm	Gull Wing	3.05 mm
CTS Electrocomponents 228HMVAABFR	0.5 mm	100000 Cycles	Standard	SPST-NO	Surface Mount	160 gf	Off-Mom	-20 ░C	70 °C	Illuminated	Top Actuated	0.05 A 12 VDC	Amber Blue LED	8 mm	5.2 mm	Gull Wing	3.05 mm
CTS Electrocomponents 228HMVALBFR	0.5 mm	100000 Cycles	Standard	SPST-NO	Surface Mount	160 gf	Off-Mom	-20 ░C	70 °C	Illuminated	Top Actuated	0.05 A 12 VDC	Blue/Green LED	8 mm	5.2 mm	Gull Wing	3.05 mm	1.9 VDC 3.2 VDC
CTS Electrocomponents 228HMVAWFR	0.5 mm	100000 Cycles	Standard	SPST-NO	Surface Mount	160 gf	Off-Mom	-20 ░C	70 °C	Illuminated	Top Actuated	0.05 A 12 VDC	LED White	8 mm	5.2 mm	Gull Wing	3.05 mm	3 VDC
