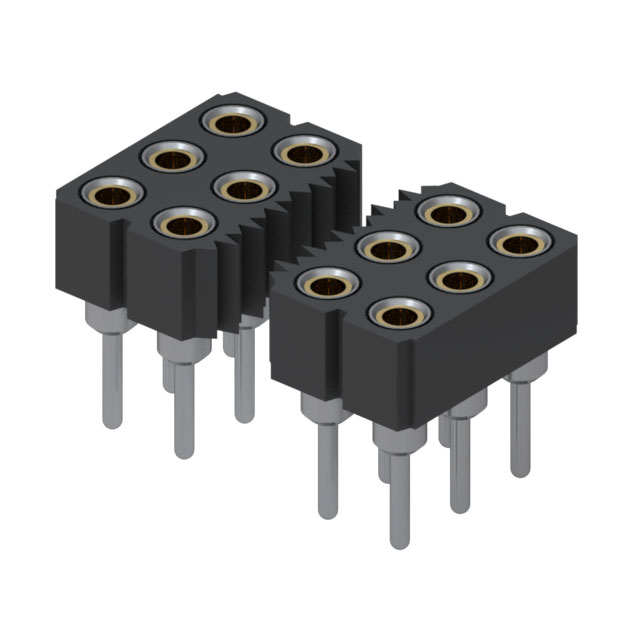

805-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 45POS 0.1 GOLD PCB

Part	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Number of Positions	Termination	Insulation Color	Mounting Type	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Insulation Material	Contact Shape	Connector Type
Mill-Max Manufacturing Corp. 805-43-045-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	45	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-030-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	30	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-051-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	51	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-015-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	15	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-027-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	27	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-024-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	24	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-042-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	42	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-078-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	78	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle

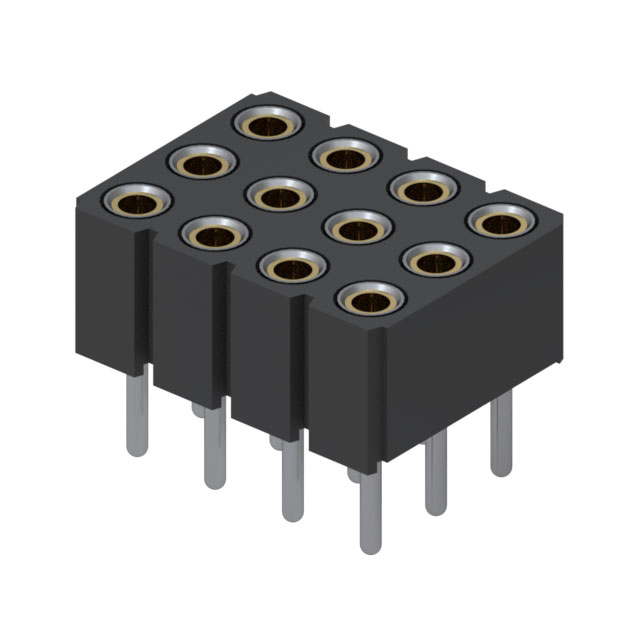

Mill-Max Manufacturing Corp. 805-43-012-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	12	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
Mill-Max Manufacturing Corp. 805-43-096-10-012000	Push-Pull	0.76 Ám	30 Áin	Gold	Female Socket	0.1 in	2.54 mm	Tin	0.1 "	2.54 mm	UL94 V-0	-55 C	125 °C	All	0.165 in	4.2 mm	Beryllium Copper	96	Solder	Black	Through Hole	4.5 A	200 µin	5.08 µm	0.125 in	3.18 mm	3	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Receptacle
