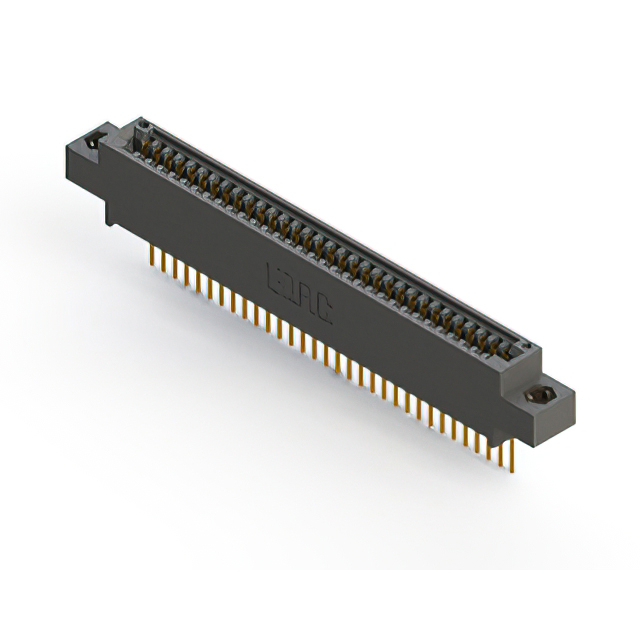

895-032 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 32POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Contact Material	Number of Positions/Bay/Row	Gender	Number of Rows [custom]	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Card Type	Contact Finish	Flange Feature	Termination Rows	Number of Rows

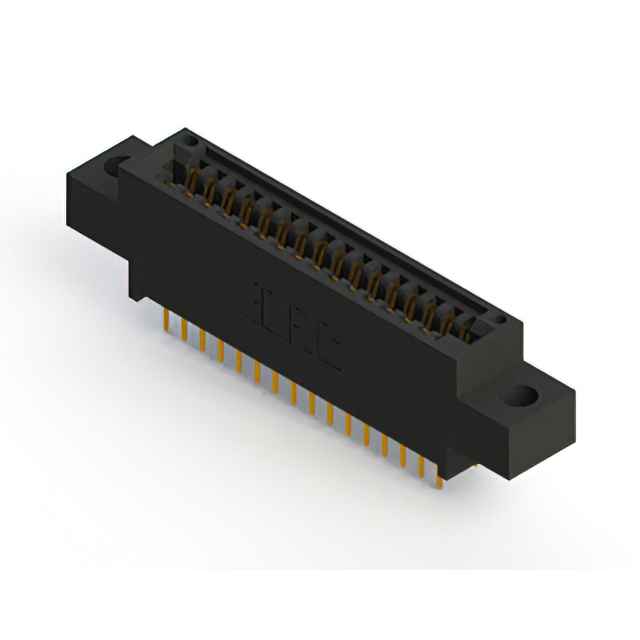

EDAC Inc. 895-032-525-804	Polyphenylene Sulfide (PPS)	2	0.156 "	3.96 mm	Through Hole	Copper Alloy	16	Female	2	Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold

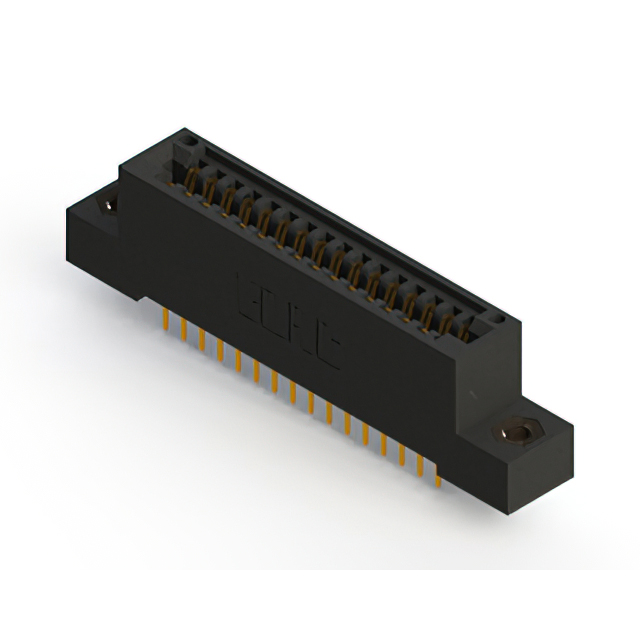

EDAC Inc. 895-032-525-207	Polyphenylene Sulfide (PPS)	2			Through Hole	Copper Alloy	16	Female	2	Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Flush Mount M3 Threaded Insert Top Opening

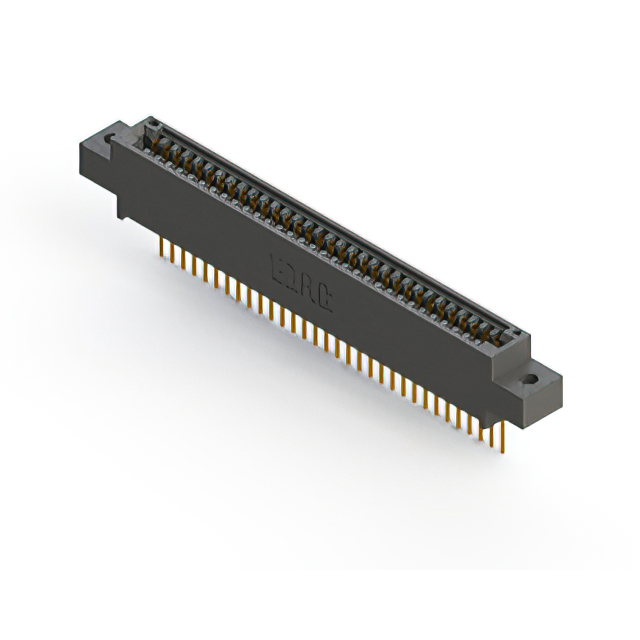

EDAC Inc. 895-032-541-602	Polyphenylene Sulfide (PPS)		0.128 "	3.25 mm	Through Hole	Copper Alloy	32	Female		Black	Wire Wrap	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	Non Specified - Single Edge	Gold		1	1

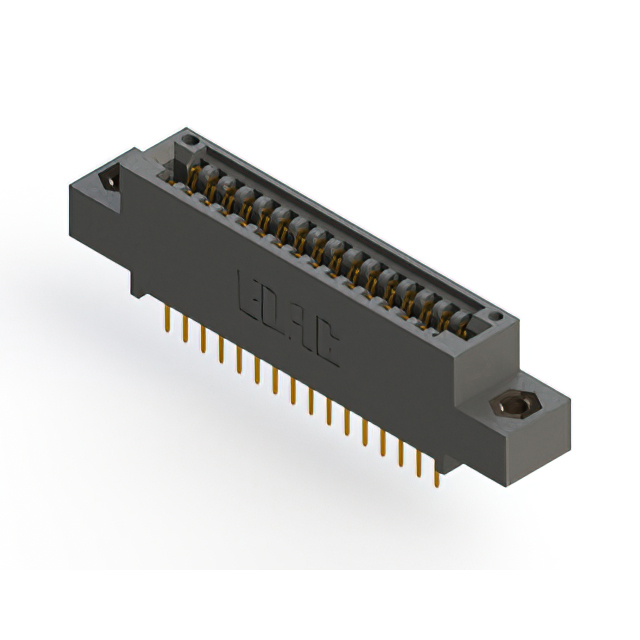

EDAC Inc. 895-032-524-507	Polyphenylene Sulfide (PPS)	2			Through Hole	Copper Alloy	16	Female	2	Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-032-500-803	Polyphenylene Sulfide (PPS)	2	0.116 "	2.95 mm	Through Hole	Copper Alloy	16	Female	2	Black	Solder Eyelet(s)	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Floating Bobbin Top Mount Opening

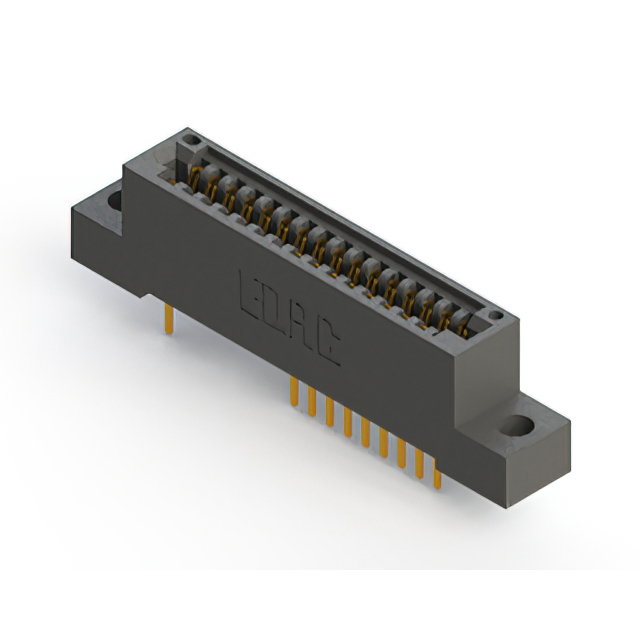

EDAC Inc. 895-032-520-204	Polyphenylene Sulfide (PPS)	2	0.156 "	3.96 mm	Through Hole	Copper Alloy	16	Female	2	Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Flush Mount Top Opening Unthreaded

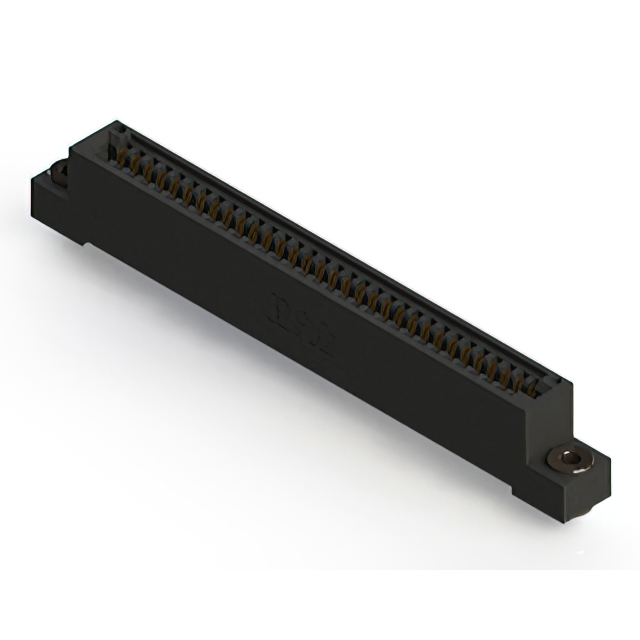

EDAC Inc. 895-032-525-103	Polyphenylene Sulfide (PPS)		0.116 "	2.95 mm	Through Hole	Copper Alloy	32	Female		Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	Non Specified - Single Edge	Gold	Floating Bobbin Flush Mount	1	1
EDAC Inc. 895-032-525-112	Polyphenylene Sulfide (PPS)		0.128 "	3.25 mm	Through Hole	Copper Alloy	32	Female		Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	Non Specified - Single Edge	Gold	Flush Mount Side Opening Unthreaded	1	1

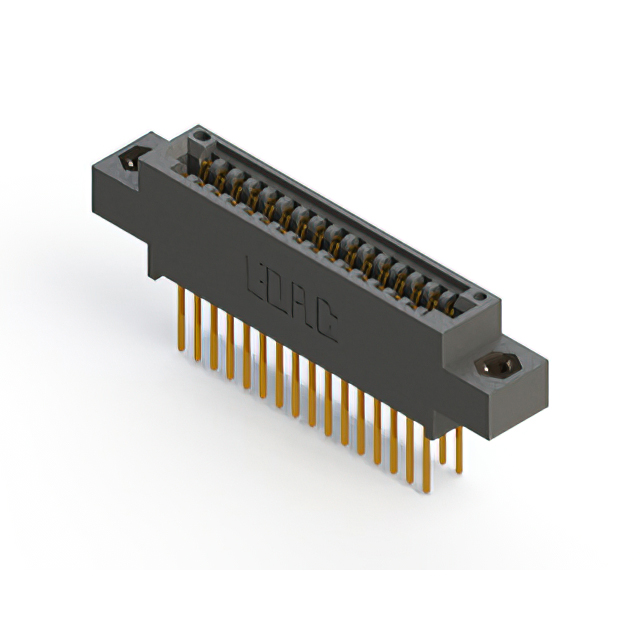

EDAC Inc. 895-032-523-808	Polyphenylene Sulfide (PPS)	2			Through Hole	Copper Alloy	16	Female	2	Black	Solder	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	4-40 Threaded Insert Top Mount Opening

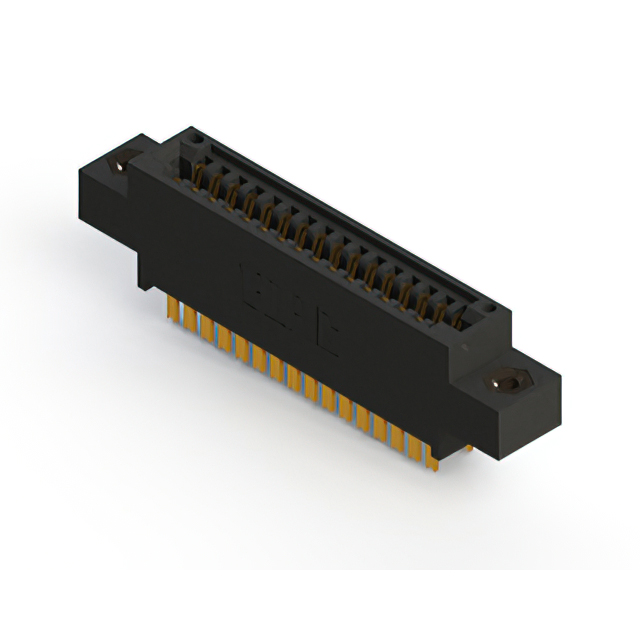

EDAC Inc. 895-032-500-808	Polyphenylene Sulfide (PPS)	2			Through Hole	Copper Alloy	16	Female	2	Black	Solder Eyelet(s)	125 °C	-40 C	Cantilever	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	4-40 Threaded Insert Top Mount Opening
