CT220 Series

Catalog

EVAL BOARD FOR CT220

Part	Supplied Contents	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Range	Utilized IC / Part	Contents	Interface	Sensor Type	Frequency [Min]	Frequency [Max]	Mounting Type	Number of Channels [custom]	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Linearity	Sensitivity	Output	Polarization	Supplier Device Package	Package / Case	Accuracy	For Measuring	Response Time
Allegro MicroSystems CTD221-5.0	Board(s)	5.5 V	2.7 V	5 mT	CT220	Board(s)	Analog	Current Sensor
Allegro MicroSystems CTD221-1.5	Board(s)	5.5 V	2.7 V	1.5 mT	CT220	Board(s)	Analog	Current Sensor
Allegro MicroSystems CT220FMV-HS5		5.5 V	2.7 V					Magnetoresistive	DC	200 kHz	Surface Mount	1	2.5 mA	125 °C	-40 C	0.15 %	450 mV/mT	Current Ratiometric Voltage	Bidirectional	SOT-23-5	SC-74A SOT-753	0.5 %	AC DC	20 µs

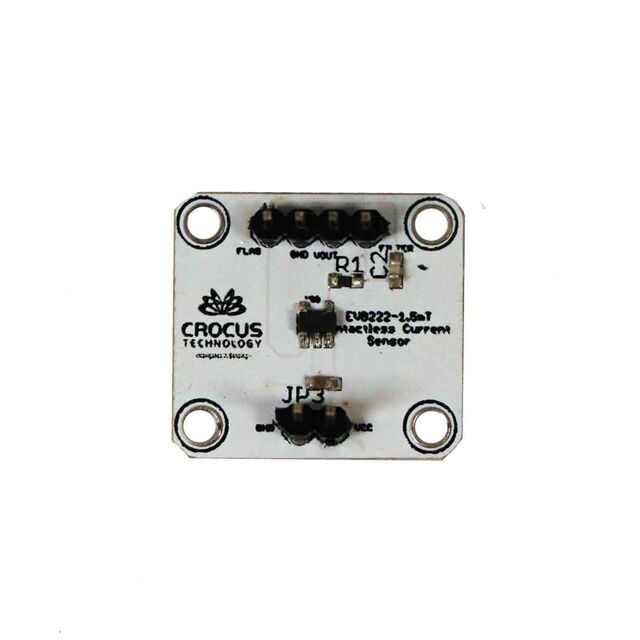

Allegro MicroSystems EVB222-1.5	Board(s)	5 V	3 V	1.5 mT	CT220	Board(s)	Analog	Current Sensor									300 fF/%RH
Allegro MicroSystems CT220RMV-IS5		5.5 V	2.7 V					Magnetoresistive	DC	200 kHz	Surface Mount	1	2.5 mA	85 °C	-40 C	0.3 %	150 mV/g	Current Ratiometric Voltage	Bidirectional	SOT-23-5	SC-74A SOT-753	0.5 %	AC DC	20 µs
Allegro MicroSystems CT220RMC-HS5		5.5 V	2.7 V					Magnetoresistive	DC	200 kHz	Surface Mount	1	2.5 mA	125 °C	-40 C	0.3 %	150 mV/g	Current Ratiometric Voltage	Bidirectional	SOT-23-5	SC-74A SOT-753	0.5 %	AC DC	20 µs

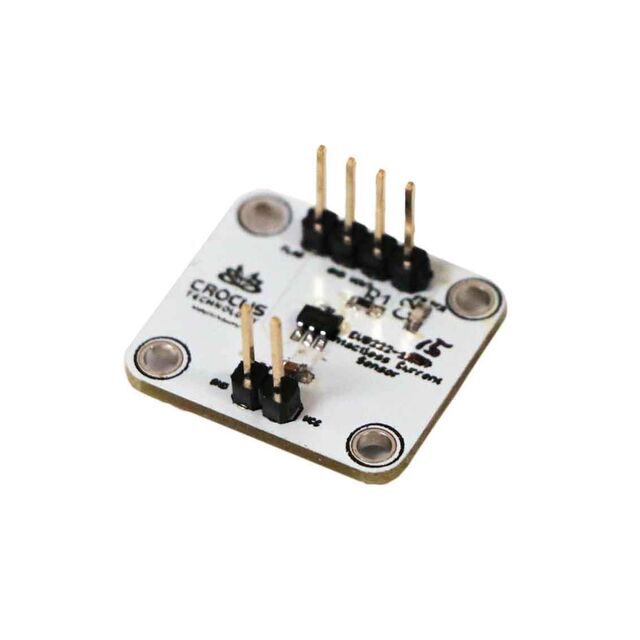

Allegro MicroSystems EVB222-15	Board(s)	5 V	3 V	15 mT	CT220	Board(s)	Analog	Current Sensor									30 mV/A
Allegro MicroSystems CT220FMC-IS5		5.5 V	2.7 V					Magnetoresistive	DC	200 kHz	Surface Mount	1	2.5 mA	85 °C	-40 C	0.15 %	450 mV/mT	Current Ratiometric Voltage	Bidirectional	SOT-23-5	SC-74A SOT-753	0.5 %	AC DC	20 µs
Allegro MicroSystems CT220RMC-IS5		5.5 V	2.7 V					Magnetoresistive	DC	200 kHz	Surface Mount	1	2.5 mA	85 °C	-40 C	0.3 %	150 mV/g	Current Ratiometric Voltage	Bidirectional	SOT-23-5	SC-74A SOT-753	0.5 %	AC DC	20 µs
Allegro MicroSystems CT220FMC-HS5		5.5 V	2.7 V					Magnetoresistive	DC	200 kHz	Surface Mount	1	2.5 mA	125 °C	-40 C	0.15 %	450 mV/mT	Current Ratiometric Voltage	Bidirectional	SOT-23-5	SC-74A SOT-753	0.5 %	AC DC	20 µs
