1410-G1 Series

Circuit Breakers Single pole press-to-reset thermal circuit breaker with extremely fast overload switching performance (R-type TO CBE to EN 60934). Single hole threadneck mounting. Type 1410-G1 features changeover contacts suitable for providing status o

Manufacturer: E-T-A

Catalog

Part	Current Rating (Amps)	Approval Agency	Mounting Type	Voltage Rating - DC	Illumination	Number of Poles	Breaker Type	Voltage Rating - AC	Actuator Type
E-T-A 1410-G110-P2F1-S01-0.63A	0.63 A	CSA C22.2 No 235 IEC 60934 UL1077	Panel Mount	50 VDC	None	1	Thermal	250 V	Push to Reset

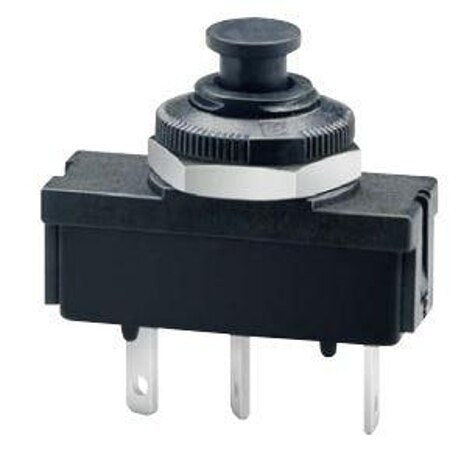

E-T-A 1410-G110-L2F1-S01-3.15A	3.15 A	CSA C22.2 No 235 IEC 60934 UL1077	Panel Mount	50 VDC	None	1	Thermal	250 V	Push to Reset
E-T-A 1410-G111-P2F1-S01-10A	10 A	CSA C22.2 No 235 IEC 60934 UL1077	Panel Mount	50 VDC	None	1	Thermal	250 V	Push to Reset
E-T-A 1410-G111-P2F1-B04-1A		CSA C22.2 No 235 IEC 60934 UL1077	Panel Mount	50 VDC	None	1	Thermal	250 V	Push to Reset
E-T-A 1410-G110-P2F1-S01-5A	5 A	CSA C22.2 No 235 IEC 60934 UL1077	Panel Mount	50 VDC	None	1	Thermal	250 V	Push to Reset
