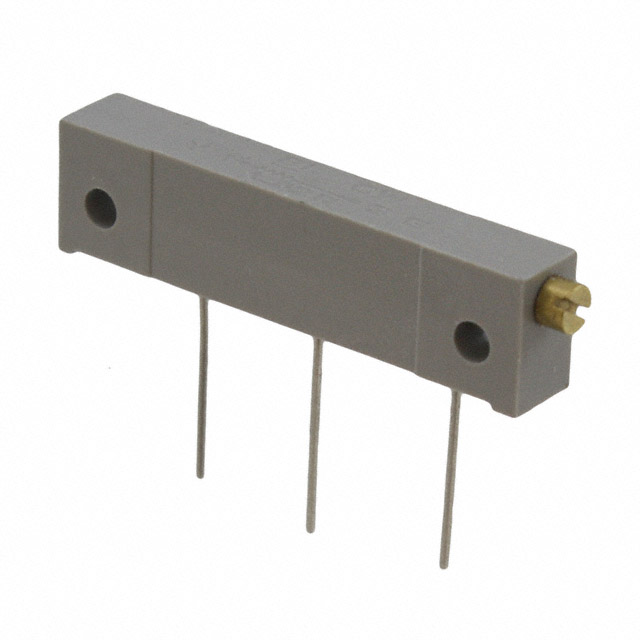

78PR Series

Trimmer Resistors - Through Hole 1W 100 Ohms 10% MULTI TURN

Manufacturer: TT Electronics/BI

Catalog

Trimmer Resistors - Through Hole 1W 100 Ohms 10% MULTI TURN

Catalog

Trimmer Resistors - Through Hole 1W 100 Ohms 10% MULTI TURN

Part	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Adjustment Type	Resistance	Power (Watts)	Termination Style	Mounting Type	Resistive Material	Number of Turns
TT Electronics/BI 78PR1KLF	100 ppm/°C	10 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	1000 Ohms	1 W	PC Pins	Through Hole	Cermet	22
TT Electronics/BI 78PR200KLF	100 ppm/°C	10 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	200000 Ohms	1 W	PC Pins	Through Hole	Cermet	22
TT Electronics/BI 78PR100LF	100 ppm/°C	10 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	100 Ohms	1 W	PC Pins	Through Hole	Cermet	22
TT Electronics/BI 78PR10KLF	100 ppm/°C	10 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	10000 Ohms	1 W	PC Pins	Through Hole	Cermet	22
TT Electronics/BI 78PR50LF	100 ppm/°C	20 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	50 Ohms	1 W	PC Pins	Through Hole	Cermet	22
TT Electronics/BI 78PR100KLF	100 ppm/°C	10 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	100 kOhms	1 W	PC Pins	Through Hole	Cermet	22
TT Electronics/BI 78PR10LF	100 ppm/°C	20 %	0.195 " 4.95 mm	31.75 mm	Side Adjustment	10 Ohms	1 W	PC Pins	Through Hole	Cermet	22
