PPPC161 Series

Catalog

CONN HDR 16POS 0.1 GOLD PCB R/A

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Fastening Type	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Rows	Number of Positions	Current Rating (Amps)	Contact Finish - Post	Insulation Color	Contact Finish - Mating	Contact Type	Contact Finish Thickness - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

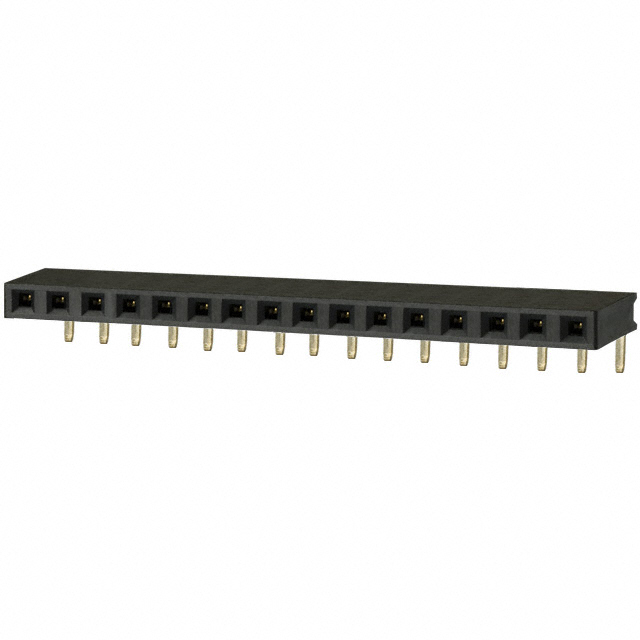

Sullins Connector Solutions PPPC161LGBN	Phosphor Bronze	Square	Polyester	Flash	Push-Pull	Right Angle Through Hole	All	-40 C	105 ░C	Solder	UL94 V-0	250 V	0.1 "	2.54 mm	1	16	3 A	Gold	Black	Gold	Female Socket	Flash	Header	0.124 in	3.15 mm	0.1 in	2.54 mm

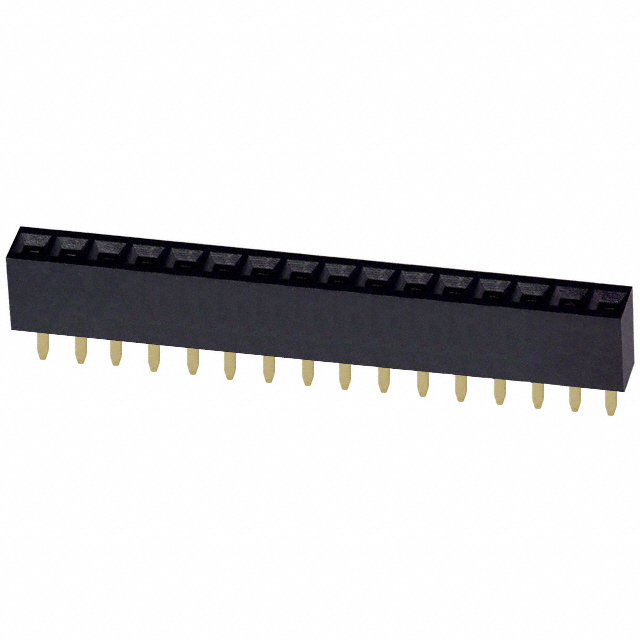

Sullins Connector Solutions PPPC161LFBN	Phosphor Bronze	Square	Polyester	Flash	Push-Pull	Through Hole	All	-40 C	105 ░C	Solder	UL94 V-0	250 V	0.1 "	2.54 mm	1	16	3 A	Gold	Black	Gold	Female Socket	Flash	Header			0.335 "	8.51 mm	0.126 "	3.2 mm
