282856 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

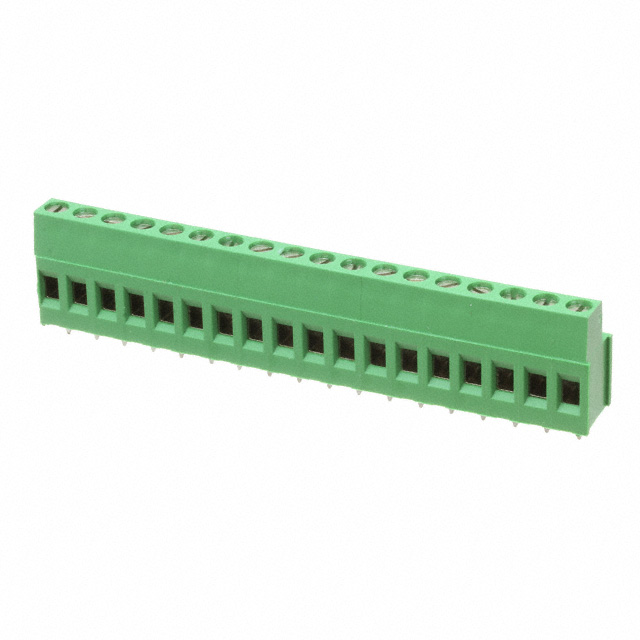

(1-282856-8) 18P TERMI-BLOK PCB MOUNT
| Part | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Pitch [x] | Pitch [x] | Features | Contact Material - Plating [custom] | Screw Material - Plating | Torque - Screw | Torque - Screw | Number of Levels | Current | Color | Voltage | Screw Thread | Clamp Material - Plating | Positions Per Level | Mating Orientation | Wire Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole | 30 AWG | 12 AWG | 5 mm | 0.197 in | Interlocking (Side) | Brass - Tin Plated | Brass - Nickel Plated | 0.79 Nm | 7 Lb-In | 1 | 24 A | Green | 300 V | M3 | Brass - Nickel Plated | 18 | Horizontal with Board | Screw - Rising Cage Clamp |
TE Connectivity Raychem Cable Protection | Through Hole | 30 AWG | 12 AWG | 5 mm | 0.197 in | Interlocking (Side) | Brass - Tin Plated | Brass - Nickel Plated | 0.79 Nm | 7 Lb-In | 1 | 24 A | Green | 300 V | M3 | Brass - Nickel Plated | 22 | Horizontal with Board | Screw - Rising Cage Clamp |
 TE Connectivity Raychem Cable Protection | Through Hole | 30 AWG | 12 AWG | 5 mm | 0.197 in | Interlocking (Side) | Brass - Tin Plated | Brass - Nickel Plated | 0.79 Nm | 7 Lb-In | 1 | 24 A | Green | 300 V | M3 | Brass - Nickel Plated | 3 | Horizontal with Board | Screw - Rising Cage Clamp |
 TE Connectivity Raychem Cable Protection | Through Hole | 30 AWG | 12 AWG | 5 mm | 0.197 in | Interlocking (Side) | Brass - Tin Plated | Brass - Nickel Plated | 0.79 Nm | 7 Lb-In | 1 | 24 A | Green | 300 V | M3 | Brass - Nickel Plated | 11 | Horizontal with Board | Screw - Rising Cage Clamp |
