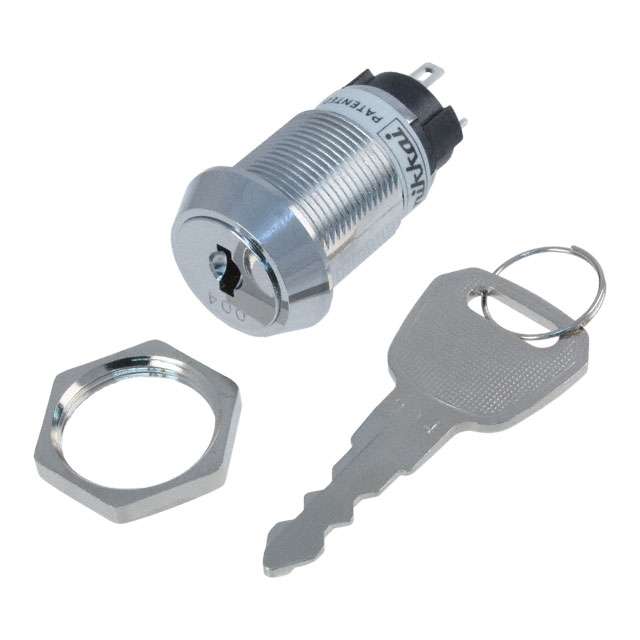

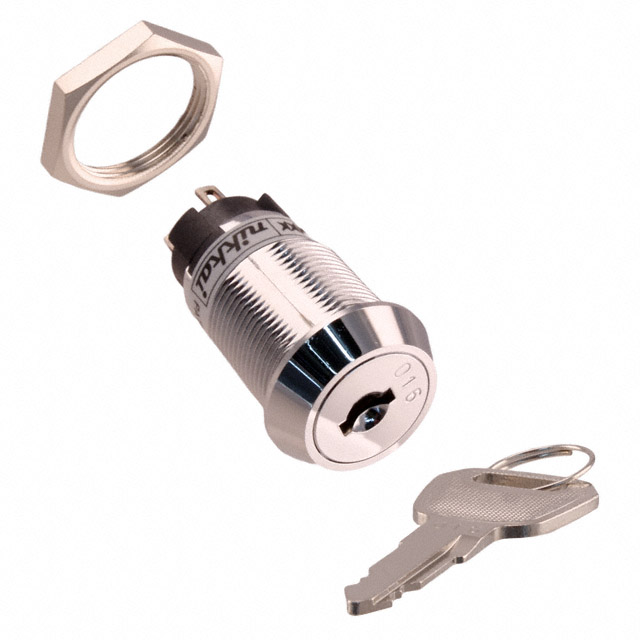

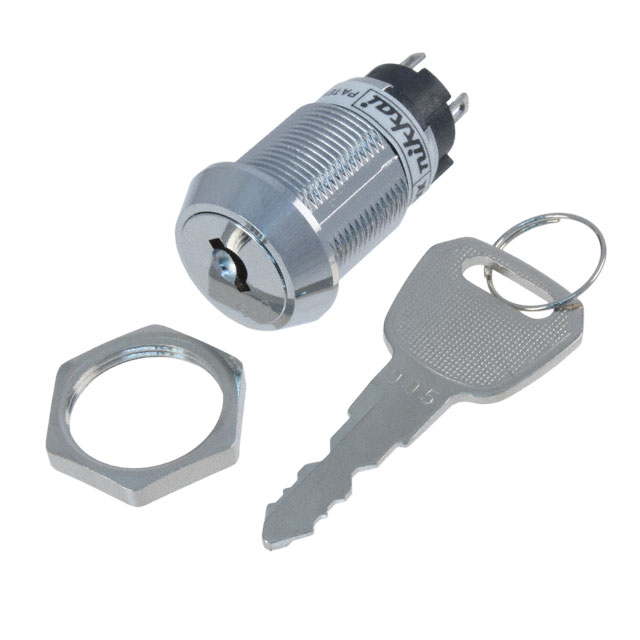

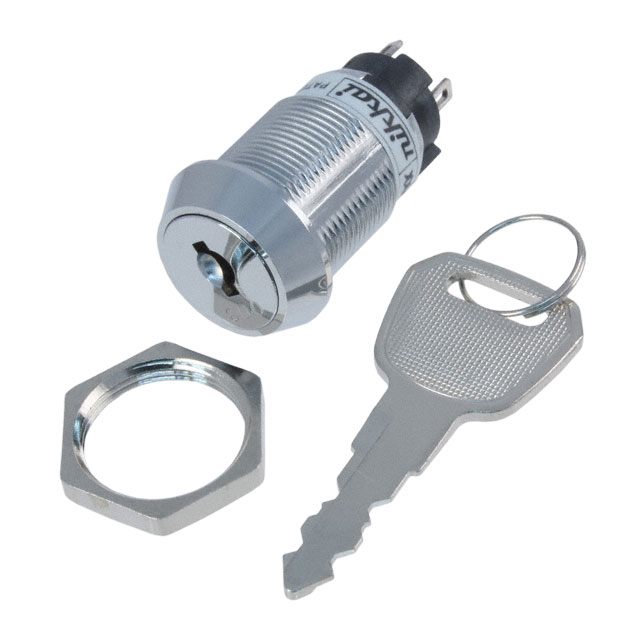

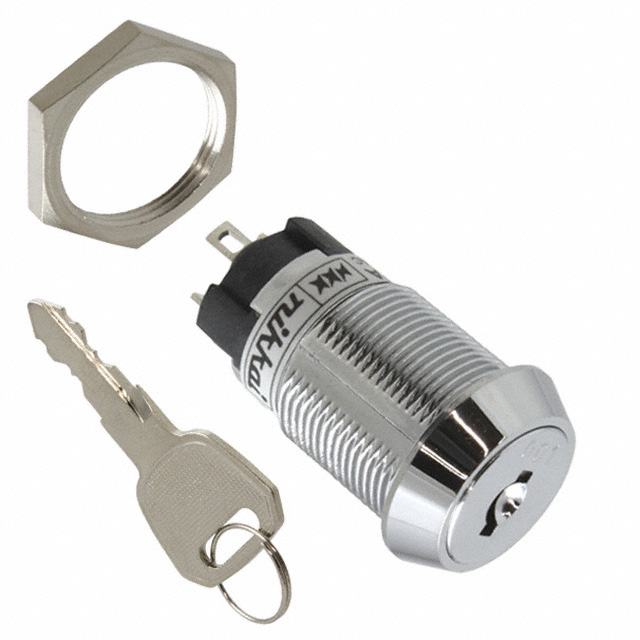

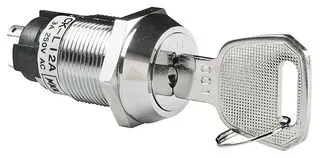

CKL12AFW Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH KEYLOCK 2POS SPDT 3A 250V
| Part | Electrical Life | Depth Behind Flange | Mechanical Life | Key Removable Positions | Contact Material | Mounting Type | Number of Positions | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Actuator Type | Angle of Throw | Voltage Rating - AC | Switch Function | Features | Circuit | Current Rating (Amps) | Contact Timing | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
 NKK Switches | 10000 Cycles | 34.6 mm | 30000 Steps | All | Silver (Ag) | Panel Mount | 2 | 19 mm | -25 °C | 70 °C | Silver | Flat Key | 90 ° | 250 V | On-On | Epoxy Sealed Terminals | SPDT | 3 A | Non-Shorting (BBM) | Solder Lug |
