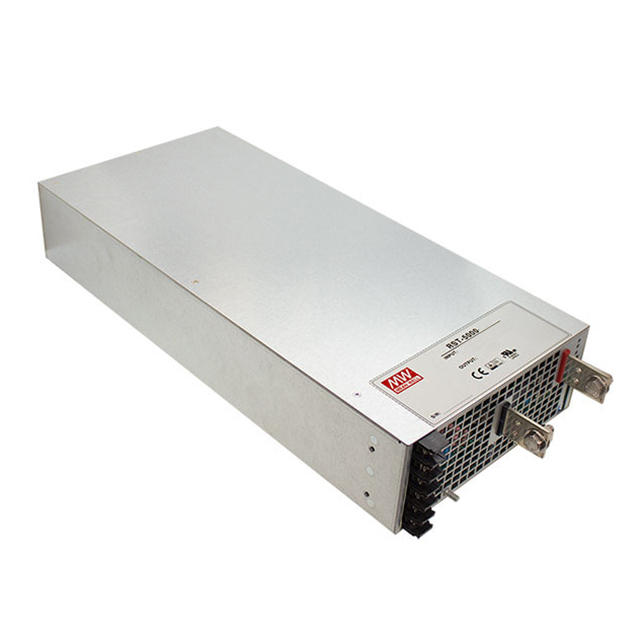

RST-5000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 4800W
| Part | Minimum Load Required | Applications | Efficiency | Power (Watts) | Current - Output 1 | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Voltage - Output 1 | Number of Outputs | Features | Mounting Type | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 89 % | 4800 W | 200 A | 3.29 " | 18.9 in | 211 mm | 480 mm | 83.5 mm | 8.31 in | Enclosed | 3000 V | -30 °C | 70 °C | 196 VAC 340 VAC | 305 VAC 530 VAC | CB CE cURus TUV | 24 V | 1 | Adjustable Output PFC Remote On/Off Remote Sense | Chassis Mount | ||
MEAN WELL USA Inc. | ITE (Commercial) | 91 % | 5040 W | 105 A | 3.29 " | 18.9 in | 211 mm | 480 mm | 83.5 mm | 8.31 in | Enclosed | 3000 V | -30 °C | 70 °C | 196 VAC 340 VAC | 305 VAC 530 VAC | CB CE cURus TUV | 48 V | 1 | Adjustable Output PFC Remote On/Off Remote Sense | Chassis Mount | ||
MEAN WELL USA Inc. | ITE (Commercial) | 90 % | 4968 W | 138 A | 3.29 " | 18.9 in | 211 mm | 480 mm | 83.5 mm | 8.31 in | Enclosed | 3000 V | -30 °C | 70 °C | 196 VAC 340 VAC | 305 VAC 530 VAC | CB CE cURus TUV | 1 | Adjustable Output PFC Remote On/Off Remote Sense | Chassis Mount | 36 V |
