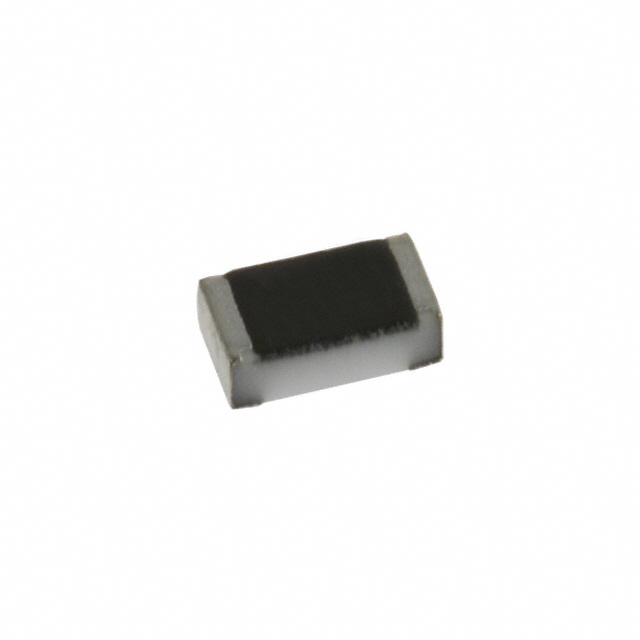

CRCW0402 Series

Catalog

RES SMD 10K OHM 5% 1/5W 0402

...

Part	Ratings	Composition	Package Name	Tolerance	Features	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Power (Watts) Options	Package / Case	Size / Dimension Width	Size / Dimension Length	Height - Seated (Max)	Resistance	Temperature Coefficient	Number of Terminations
Vishay Dale CRCW040210K0JNEDHP	AEC-Q200	Thick Film	0402	5 %	Automotive AEC-Q200 Pulse Withstanding	155 °C	-55 °C	0.2 W	1/5W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	10 kOhm	200 ppm/°C	2
Vishay Dale CRCW0402348RFKEDHP	AEC-Q200	Thick Film	0402	1 %	Automotive AEC-Q200 Pulse Withstanding	155 °C	-55 °C	0.2 W	1/5W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	348 Ohm	100 ppm/°C	2
Vishay Dale CRCW04024R12FKED	AEC-Q200	Thick Film	0402	1 %	Automotive AEC-Q200	155 °C	-55 °C	0.063 W	1/16W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	4.12 Ohms	100 ppm/°C	2
Vishay Dale CRCW040212K4FKTD	AEC-Q200	Thick Film	0402	1 %	Automotive AEC-Q200	155 °C	-55 °C	0.063 W	1/16W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	12.4 kOhm	100 ppm/°C	2
Vishay Dale CRCW0402698KFKEDHP	AEC-Q200	Thick Film	0402	1 %	Automotive AEC-Q200 Pulse Withstanding	155 °C	-55 °C	0.2 W	1/5W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	698 kOhm	100 ppm/°C	2
Vishay Dale CRCW040210K2DHEDP	AEC-Q200	Thick Film	0402	0.5 %	Automotive AEC-Q200	155 °C	-55 °C	0.063 W	1/16W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	10.2 kOhm	50 ppm/°C	2
Vishay Dale CRCW04025R60JNEDC		Thick Film	0402	5 %		155 °C	-55 °C	0.063 W 100 mW	1/10W 1/16W	0402 (1005 Metric)	0.02 in	0.039 in	0.014 in	5.6 Ohm	200 ppm/°C	2
Vishay Dale CRCW04022R74FNTD	AEC-Q200	Thick Film	0402	1 %	Automotive AEC-Q200	155 °C	-55 °C	0.063 W	1/16W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	2.74 Ohms	200 ppm/°C	2
Vishay Dale CRCW040284R5FKEDHP	AEC-Q200	Thick Film	0402	1 %	Automotive AEC-Q200 Pulse Withstanding	155 °C	-55 °C	0.2 W	1/5W	0402 (1005 Metric)	0.02 in	0.039 in	0.016 in	84.5 Ohm	100 ppm/°C	2
Vishay Dale CRCW040269R8FKEDC		Thick Film	0402	1 %		155 °C	-55 °C	0.063 W 100 mW	1/10W 1/16W	0402 (1005 Metric)	0.02 in	0.039 in	0.014 in	69.8 Ohm	100 ppm/°C	2
