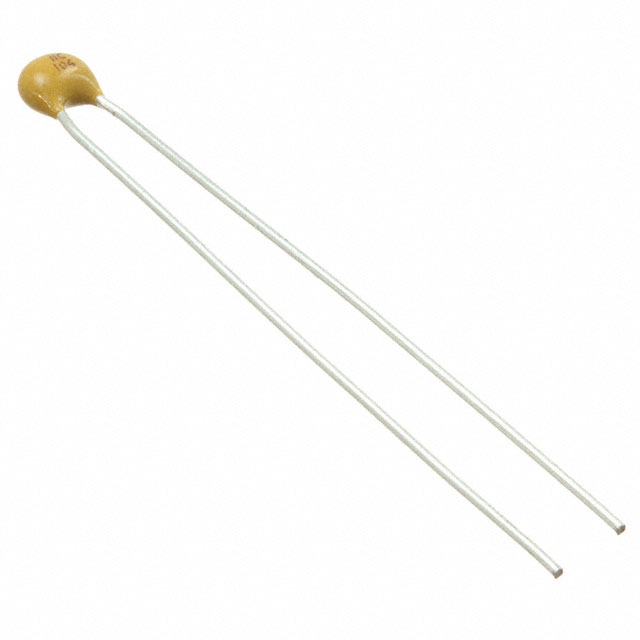

1C10 Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED 0.22UF 50VOLTS Z5U 20% 2.5MM L/S

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Height - Seated (Max)	Lead Style	Capacitance	Mounting Type	Lead Spacing	Temperature Coefficient	Tolerance	Applications	Size / Dimension Length	Size / Dimension Width	Package / Case
Vishay Dale 1C10Z5U224M050B	85 °C	10 °C	50 V	0.25 in	Straight	0.22 µF	Through Hole	0.1 in	Z5U	20 %	General Purpose	0.2 in	0.125 in	Radial
Vishay Dale 1C10C0G331J050B	125 °C	-55 °C	50 V	0.25 in	Straight	330 pF	Through Hole	0.1 in	C0G NP0	5 %	General Purpose	0.2 in	0.125 in	Radial
Vishay Dale 1C10X7R473K050B	125 °C	-55 °C	50 V	0.25 in	Straight	47 nF	Through Hole	0.1 in	X7R	10 %	General Purpose	0.2 in	0.125 in	Radial
Vishay Dale 1C10X7R102K100B	125 °C	-55 °C	100 VAC/DC	0.25 in	Straight	1000 pF	Through Hole	0.1 in	X7R	10 %	General Purpose	0.2 in	0.125 in	Radial
Vishay Dale 1C10X7R222K100B	125 °C	-55 °C	100 VAC/DC	0.25 in	Straight	2200 pF	Through Hole	0.1 in	X7R	10 %	General Purpose	0.2 in	0.125 in	Radial
Vishay Dale 1C10C0G102J100B	125 °C	-55 °C	100 VAC/DC	0.25 in	Straight	1000 pF	Through Hole	0.1 in	C0G NP0	5 %	General Purpose	0.2 in	0.125 in	Radial
Vishay Dale 1C10C0G221J050R	125 °C	-55 °C	50 V	0.25 in	Straight	220 pF	Through Hole	0.1 in	C0G NP0	5 %	General Purpose	0.2 in	0.125 in	Radial
