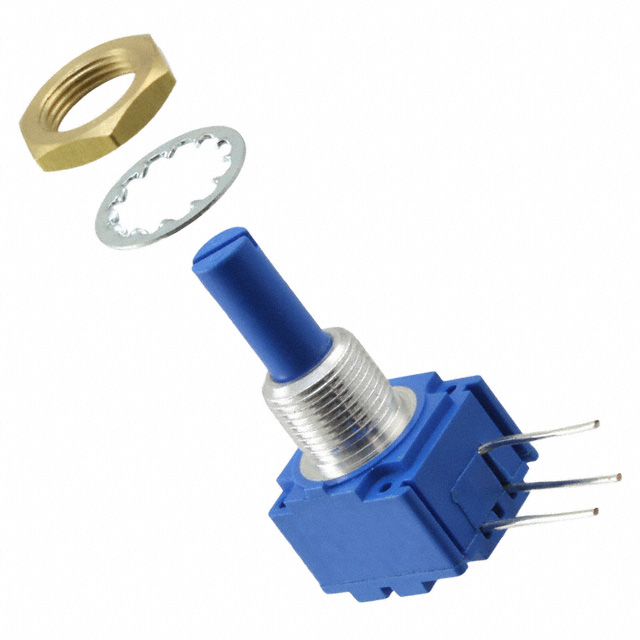

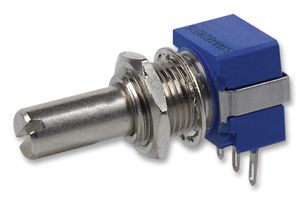

93R1A Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES CERMET POT 500 OHM 10% 2W 1(ELEC)/1(MECH)TURNS 6MM (34.7 X 15.88 X 17.46MM) PIN PANEL MOUNT/THROUGH HOLE
| Part | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Number of Gangs | Actuator Length [x] | Actuator Length [x] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Resistive Material | Power (Watts) | Taper | Adjustment Type | Built in Switch | Bushing Thread | Bushing Thread | Resistance (Ohms) [custom] | Rotation | Temperature Coefficient | Termination Style | Mounting Type | Actuator Type | Number of Turns | Tolerance | Resistance (Ohms) | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 500 Ohms | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | ||
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | 250000 Ohms | ||
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | 100k | ||
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 2.5 kOhms | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | ||
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | 5 kOhms | ||
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 50 kOhms | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | ||
 Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | 1k | ||
Bourns Inc. | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | 1 | 22 mm | 0.866 in | 6 mm | 0.236 in | Cermet | 2 W | Linear | Side Adjustment | None | M10 | 0.75 | 300 ░ | 150 ppm/°C | PC Pins | Panel Mount | Slotted | 1 | 10 % | 1 MΩ |
