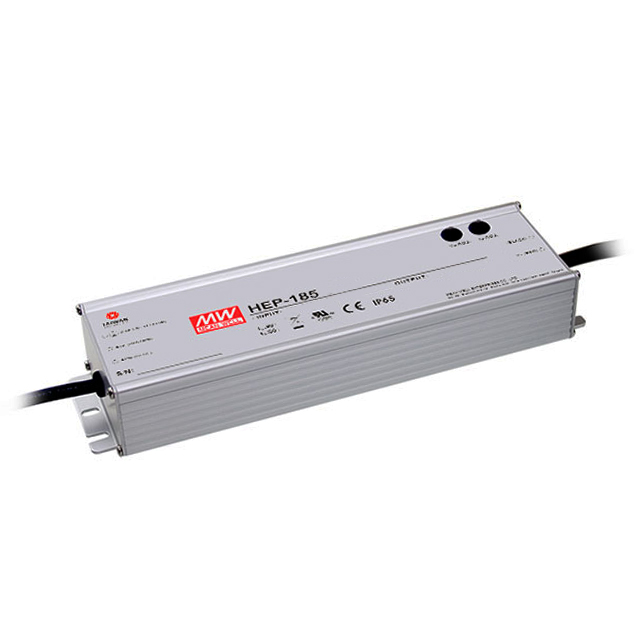

HEP-185 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 187W
| Part | Voltage - Isolation | Current - Output 1 | Voltage - Output 1 | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Approval Agency | Type | Applications | Number of Outputs | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3750 VDC | 7.8 A | 24 V | 93.5 % | 90 VAC 127 VDC | 305 VAC 431 VDC | 70 °C | -55 °C | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | CB CE cURus | Enclosed | ITE (Commercial) | 1 | Adjustable Output IP65 PFC Universal Input | 187 W |
MEAN WELL USA Inc. | 3750 VDC | 11.5 A | 15 V | 92 % | 90 VAC 127 VDC | 305 VAC 431 VDC | 70 °C | -55 °C | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | CB CE cURus | Enclosed | ITE (Commercial) | 1 | Adjustable Output IP65 PFC Universal Input | 173 W |
MEAN WELL USA Inc. | 3750 VDC | 13 A | 12 V | 91.5 % | 90 VAC 127 VDC | 305 VAC 431 VDC | 70 °C | -55 °C | 8.98 " | 228 mm | 68 mm | 1.53 in | 2.68 in | 38.8 mm | Chassis Mount | CB CE cURus | Enclosed | ITE (Commercial) | 1 | Adjustable Output IP65 PFC Universal Input | 156 W |
