SFW5R Series

Catalog

CONN FFC FPC TOP 5POS 1MM R/A

Part	Housing Color	Mating Cycles	Actuator Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Actuator Material	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Housing Material	Voltage Rating	Contact Material	Locking Feature	Contact Finish	Material Flammability Rating	Mounting Type	Termination	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Cable End Type	Pitch	Pitch	FFC, FCB Thickness
Amphenol ICC (FCI) SFW5R-2STE9LF	Brown	20	Black	5	-55 C	105 ░C	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Tin	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Top	Straight Tapered	1 mm	0.039 in
Amphenol ICC (FCI) SFW5R-2STGE1LF	Brown	20	Black	5	-55 C	105 ░C	FPC	Polyphenylene Sulfide (PPS) Glass Filled			Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Gold	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Top	Tapered	1 mm	0.039 in	0.33 mm

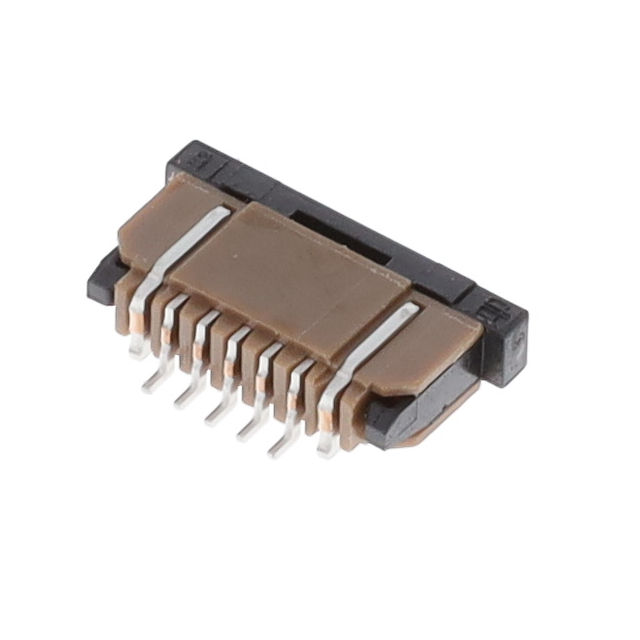

Amphenol ICC (FCI) SFW5R-1STE9LF	Brown	20	Black	5	-55 C	105 ░C	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Tin	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Bottom	Straight Tapered	1 mm	0.039 in
Amphenol ICC (FCI) SFW5R-1STE1LF	Brown	20	Brown	5	-55 C	105 ░C	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Tin	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Bottom	Notched	1 mm	0.039 in
Amphenol ICC (FCI) SFW5R-1STAE1LF	Brown	20	Black	5	-55 C	105 ░C	FPC	Polyphenylene Sulfide (PPS) Glass Filled			Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Gold	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Bottom	Straight Tapered	1 mm	0.039 in	0.3 mm

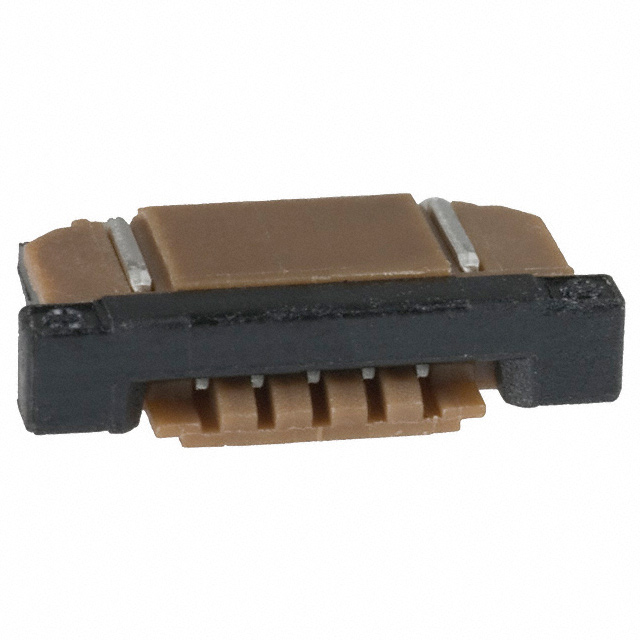

Amphenol ICC (FCI) SFW5R-1STE1	Brown		Black	5			FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled		Phosphor Bronze	Slide Lock	Tin Alloy	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Bottom	Straight Tapered	1 mm	0.039 in
Amphenol ICC (FCI) SFW5R-2STAE9LF	Brown		Black	5	-55 C	105 ░C	FPC	Polyphenylene Sulfide (PPS) Glass Filled			Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Gold	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Top	Tapered	1 mm	0.039 in	0.33 mm

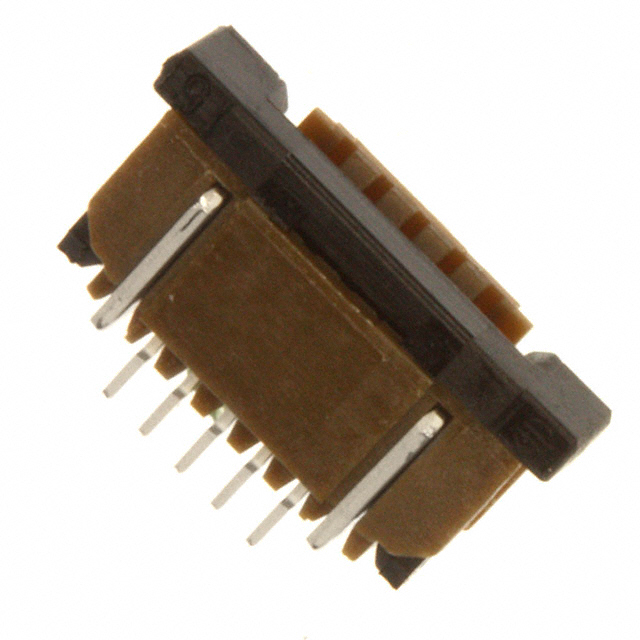

Amphenol ICC (FCI) SFW5R-2STE1LF	Brown	20		5	-55 C	105 ░C	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled			Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze		Tin	UL94 V-0	Right Angle Surface Mount	Kinked Pin	0.106 in	2.7 mm	Contacts Top	Straight or Tapered	1 mm	0.039 in	0.3 mm

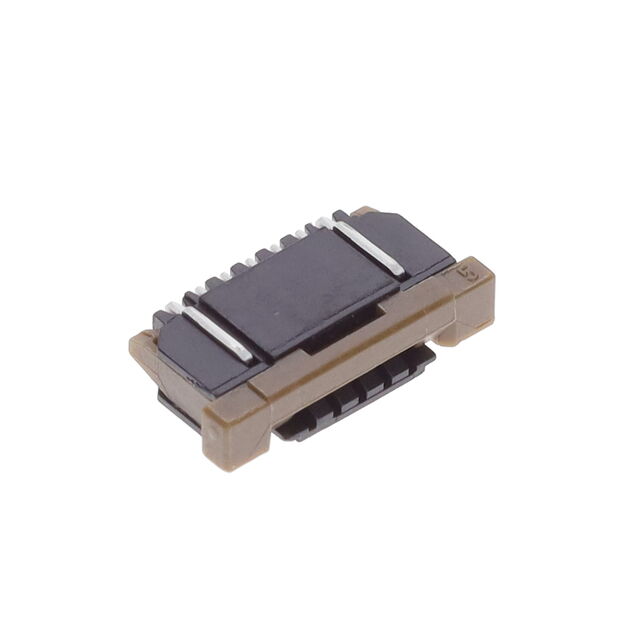

Amphenol ICC (FCI) SFW5R-3STE1LF	Black	20	Black	5	-55 C	105 ░C	FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled	100 V	Phosphor Bronze	Slide Lock	Tin	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Bottom	Straight Tapered	1 mm	0.039 in
Amphenol ICC (FCI) SFW5R-2STE1	Brown		Black	5			FFC FPC	Polyphenylene Sulfide (PPS) Glass Filled	0.3 mm	0.33 mm	Polyphenylene Sulfide (PPS) Glass Filled		Phosphor Bronze	Slide Lock	Tin Alloy	UL94 V-0	Right Angle Surface Mount	Solder	0.106 in	2.7 mm	Contacts Top	Straight Tapered	1 mm	0.039 in
