LCC8 Series

Catalog

CONN TERM RECT TONG 8 AWG #1/4

Part	Contact Material	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Insulation	Tab Thickness	Tab Thickness	Terminal Type	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Termination	Stud/Tab Size	Mounting Type	Length - Overall [x]	Length - Overall [x]	Terminal Style	Wire Gauge	Diameter - Ring ID	Diameter - Ring ID	Width - Outer Edges	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Length - Overall

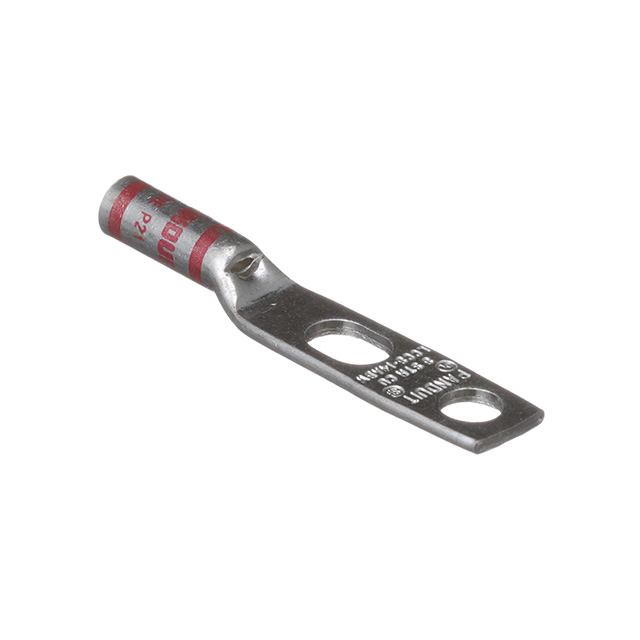

Panduit Corp LCC8-14ABW-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	1.78 mm	0.07 in	Rectangular Tongue	Red	12.19 mm	0.48 "	Barrel Crimp	0.25 Stud	Free Hanging (In-Line)	56.64 mm	2.23 in	Two Stud Holes	8 AWG

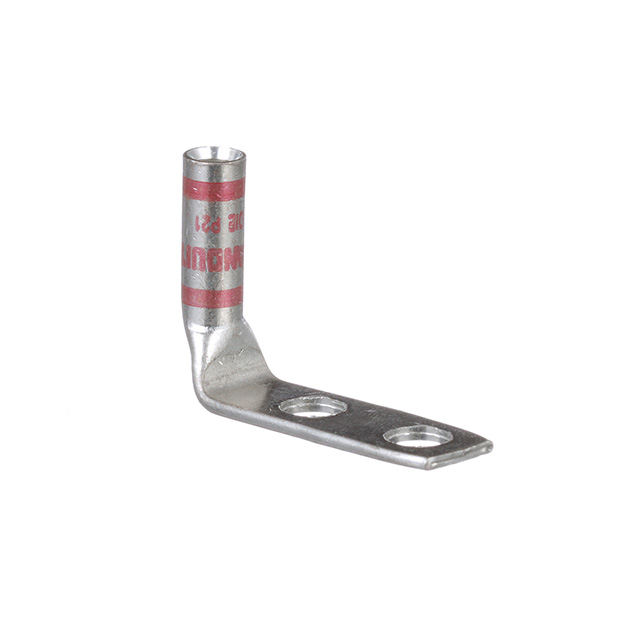

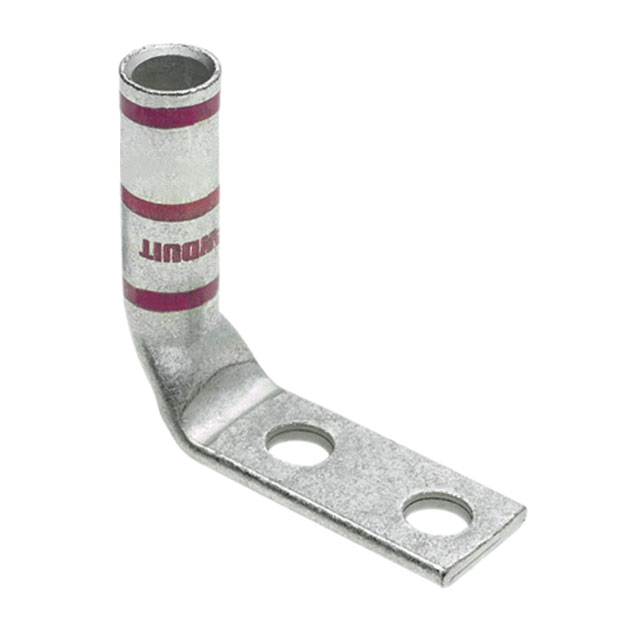

Panduit Corp LCC8-14AF-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	1.78 mm	0.07 in	Rectangular Tongue	Red	12.19 mm	0.48 "	Barrel Crimp	0.25 Stud	Free Hanging (In-Line) Right Angle			Two Stud Holes	8 AWG	0.27 in	6.86 mm

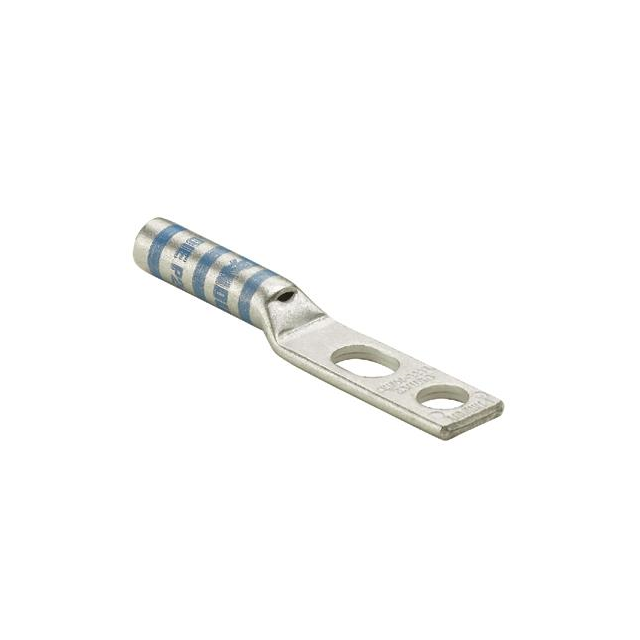

Panduit Corp LCC8-10ABW-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	2.03 mm	0.08 "	Rectangular Tongue	Red		0.41 in	Barrel Crimp	10 Stud	Free Hanging (In-Line)	54.36 mm	2.14 in	Two Stud Holes	8 AWG			10.41 mm
Panduit Corp LCC8-10A-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	2.03 mm	0.08 "	Rectangular Tongue	Red		0.41 in	Barrel Crimp	10 Stud	Free Hanging (In-Line)	52.58 mm	2.07 in	Two Stud Holes	8 AWG			10.41 mm	5.08 mm	0.2 in
Panduit Corp LCC8-10BWH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	2.03 mm	0.08 "	Rectangular Tongue	Red		0.41 in	Barrel Crimp	10 Stud	Free Hanging (In-Line)			Two Stud Holes	8 AWG			10.41 mm	5.08 mm	0.2 in

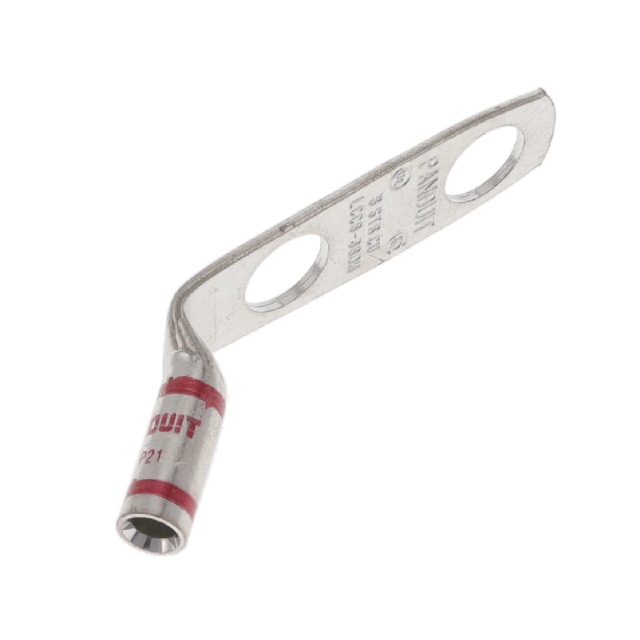

Panduit Corp LCC8-38DH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	1.27 mm	0.05 "	Rectangular Tongue	Red		0.6 "	Barrel Crimp	0.375 Stud	Free Hanging (In-Line)			Two Stud Holes	8 AWG			15.24 mm	10.41 mm	0.41 "
Panduit Corp LCC8-12-L

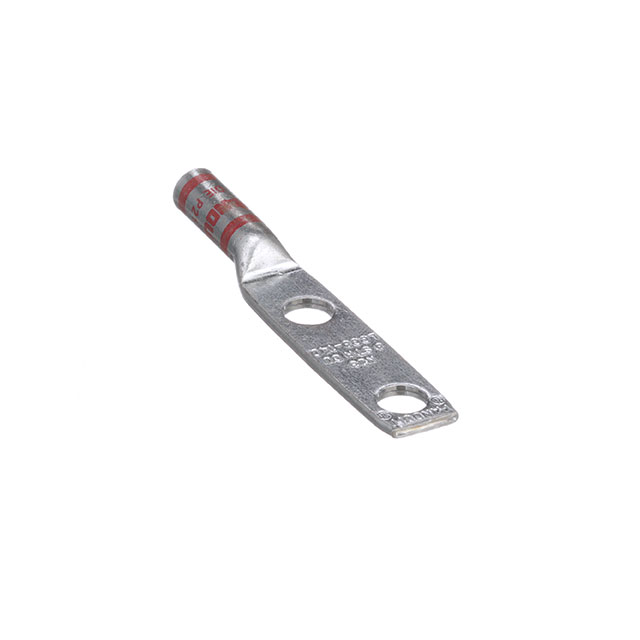

Panduit Corp LCC8-14D-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	1.78 mm	0.07 in	Rectangular Tongue	Red	12.19 mm	0.48 "	Barrel Crimp	0.25 Stud	Free Hanging (In-Line)		2.53 in	Two Stud Holes	8 AWG	0.27 in	6.86 mm				64.26 mm
Panduit Corp LCC8-38DWH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	1.27 mm	0.05 "	Rectangular Tongue	Red		0.6 "	Barrel Crimp	0.375 Stud	Free Hanging (In-Line)			Two Stud Holes	8 AWG			15.24 mm	10.41 mm	0.41 "
Panduit Corp LCC8-14BWH-L	Copper	0.18 in	4.57 mm	Electro-Tin	6.86 mm	0.27 in	Non-Insulated	1.78 mm	0.07 in	Rectangular Tongue	Red	12.19 mm	0.48 "	Barrel Crimp	0.25 Stud	Free Hanging (In-Line)			Two Stud Holes	8 AWG	0.27 in	6.86 mm
