9WL0424 Series

Catalog

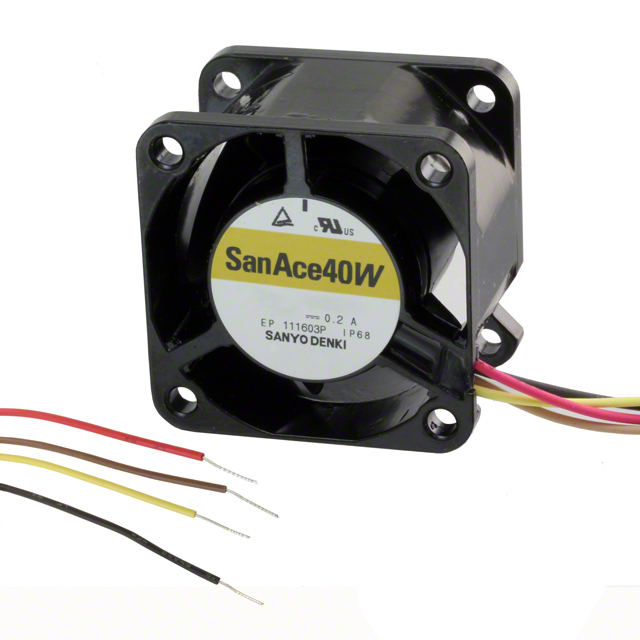

AXIAL FAN, 40MM, 24VDC, 22.2CFM, 51DBA

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Air Flow	Air Flow	Noise	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Features	RPM	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Bearing Type	Termination	Weight	Weight	Width [x]	Approval Agency	Ingress Protection	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 9WL0424P3J001	26.4 VDC	21.6 VDC	Plastic	150000 Hrs	Aluminum	0.26 A	22.2 CFM	0.622 m³/min	51 dB(A)	6.24 W	-20 ░C	70 °C	Tubeaxial	PWM Control Speed Sensor (Tach)	17500 RPM	40 mm	40 mm	24 VDC	Ball	4 Wire Leads	0.154 lb	69.85 g	28 mm	CSA TUV UL	IP68 - Dust Tight Waterproof	401 Pa	1.61 in H2O
Sanyo Denki America Inc. 9WL0424J3001	26.4 VDC	21.6 VDC	Plastic	150000 Hrs	Aluminum	0.26 A	22.2 CFM	0.622 m³/min	51 dB(A)	6.24 W	-20 ░C	70 °C	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	17500 RPM	40 mm	40 mm	24 VDC	Ball	3 Wire Leads			28 mm	CSA TUV UL	IP68 - Dust Tight Waterproof	401 Pa	1.61 in H2O	0.156 lb	70.76 g
