0990-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

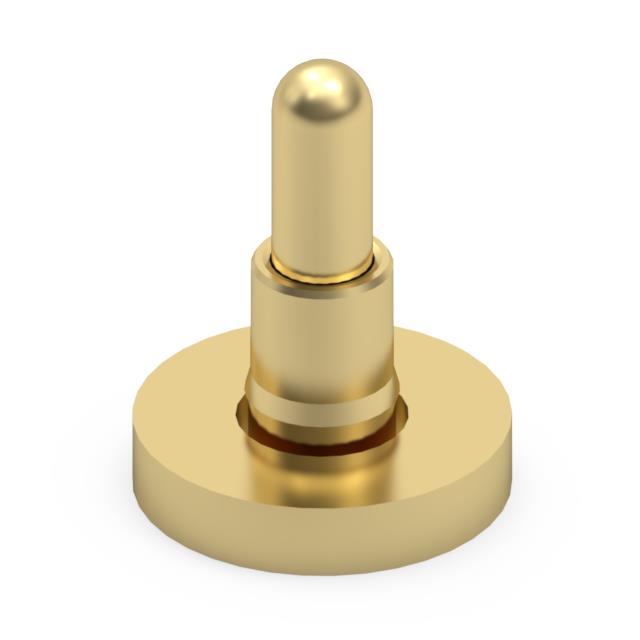

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Mating Cycles | Contact Material | Contact Finish | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height [Min] | Minimum Working Height [Min] | Current Rating (Amps) | Operating Force - Mid Compression | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.159 in | 4.04 mm | 1000000 | Brass Alloy | Gold | 10 gf | 4.3 mm | 0.169 in | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | 5 mm | 0.197 in | 0.142 in | 3.6 mm | 5.2 A | 60 gf | Surface Mount |
