Mini Dynamic Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MINI DYNAMIC HDR H 44P TIN Y-KEY BLK

Part	Number of Rows [custom]	Number of Positions	Style	Shrouding	Material Flammability Rating	Fastening Type	Mounting Type	Contact Material	Contact Shape	Connector Type	Insulation Color	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Termination	Pin or Socket	Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Pitch	Pitch	Color
TE Connectivity AMP Connectors 4-2834499-4	2	44	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Right Angle Surface Mount	Copper Alloy	Square	Header	Black	Thermoplastic	2.5 mm	0.098 in	Male Pin	Tin	8.64 mm	0.34 in	3 A	125 °C	-40 C	Solder Retention	Solder	All	1.8 mm	0.071 in
TE Connectivity AMP Connectors 3-2834499-2	2	36	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Right Angle Surface Mount	Copper Alloy	Square	Header	Black	Thermoplastic	2.5 mm	0.098 in	Male Pin	Tin	8.64 mm	0.34 in	3 A	125 °C	-40 C	Solder Retention	Solder	All	1.8 mm	0.071 in

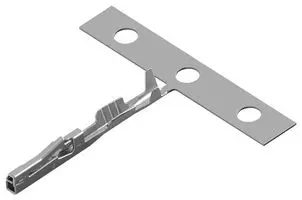

TE Connectivity AMP Connectors 2834464-6																											Crimp	Socket	Stamped	24 AWG	22 AWG	Tin
TE Connectivity AMP Connectors 1-2834461-2	2	12				Latch Lock	Free Hanging (In-Line)			Receptacle		Polybutylene Terephthalate (PBT)			Female Socket					125 °C	-40 C						Crimp						1.8 mm	0.071 in	Black

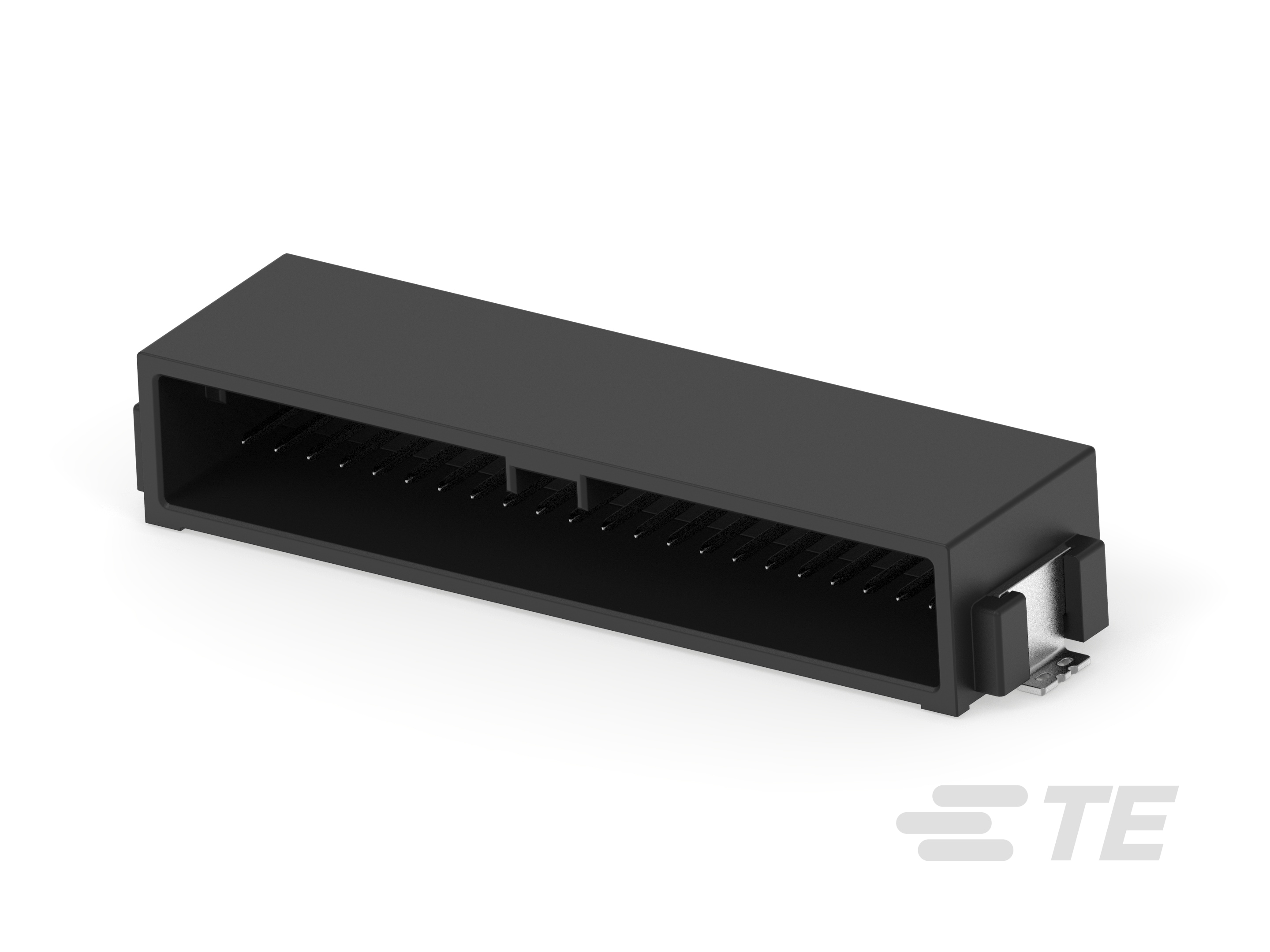

TE Connectivity AMP Connectors 4-2834465-0

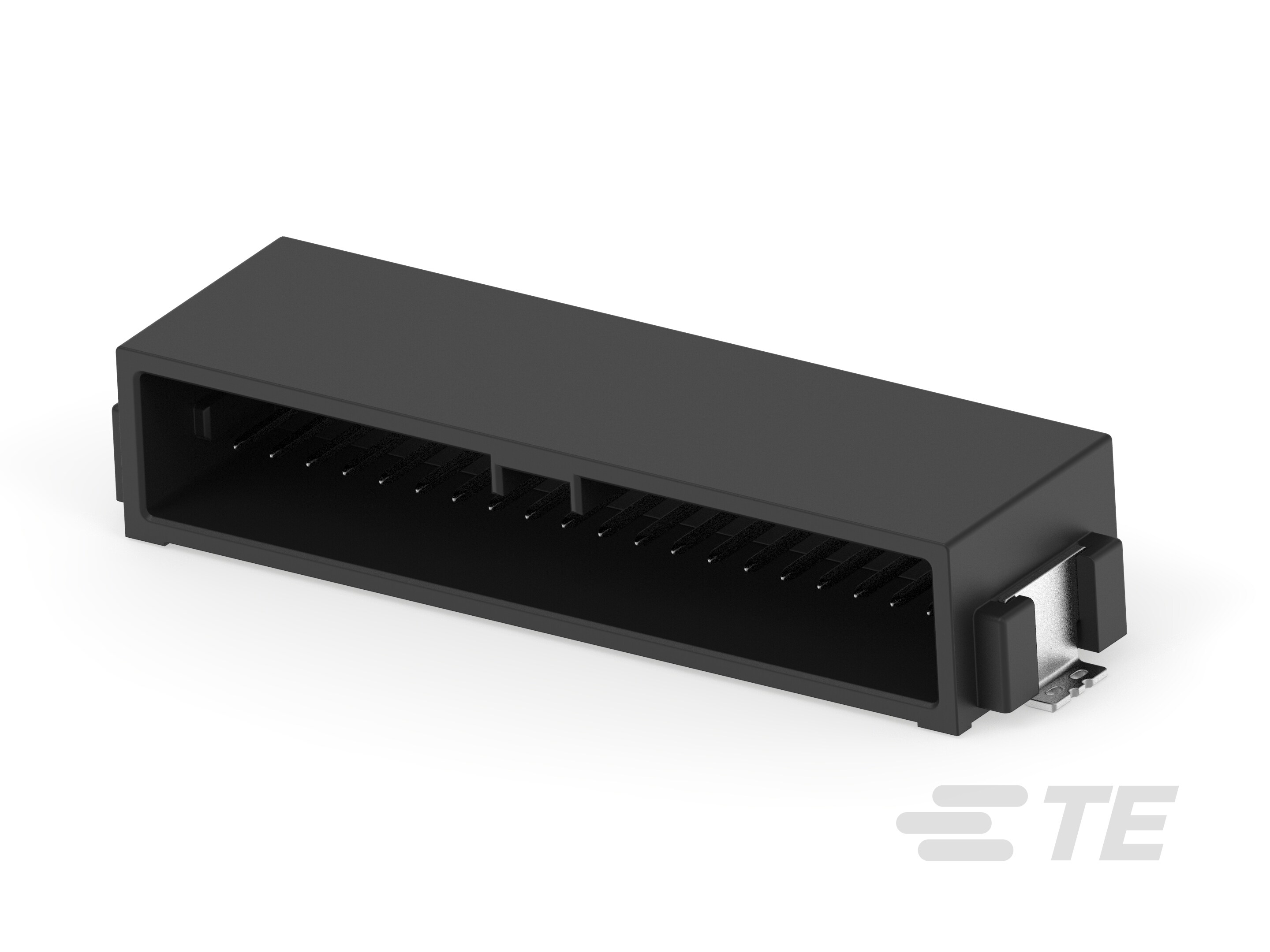

TE Connectivity AMP Connectors 3-2834499-6	2	36	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Right Angle Surface Mount	Copper Alloy	Square	Header	Black	Thermoplastic	2.5 mm	0.098 in	Male Pin	Tin	8.64 mm	0.34 in	3 A	125 °C	-40 C	Solder Retention	Solder	All	1.8 mm	0.071 in
TE Connectivity AMP Connectors 2-2834465-4
TE Connectivity AMP Connectors 4-2834499-0	2	40	Board to Cable/Wire	Shrouded - 4 Wall	UL94 V-0	Push-Pull	Right Angle Surface Mount	Copper Alloy	Square	Header	Black	Thermoplastic	2.5 mm	0.098 in	Male Pin	Tin	8.64 mm	0.34 in	3 A	125 °C	-40 C	Solder Retention	Solder	All	1.8 mm	0.071 in
TE Connectivity AMP Connectors 4-2834465-4

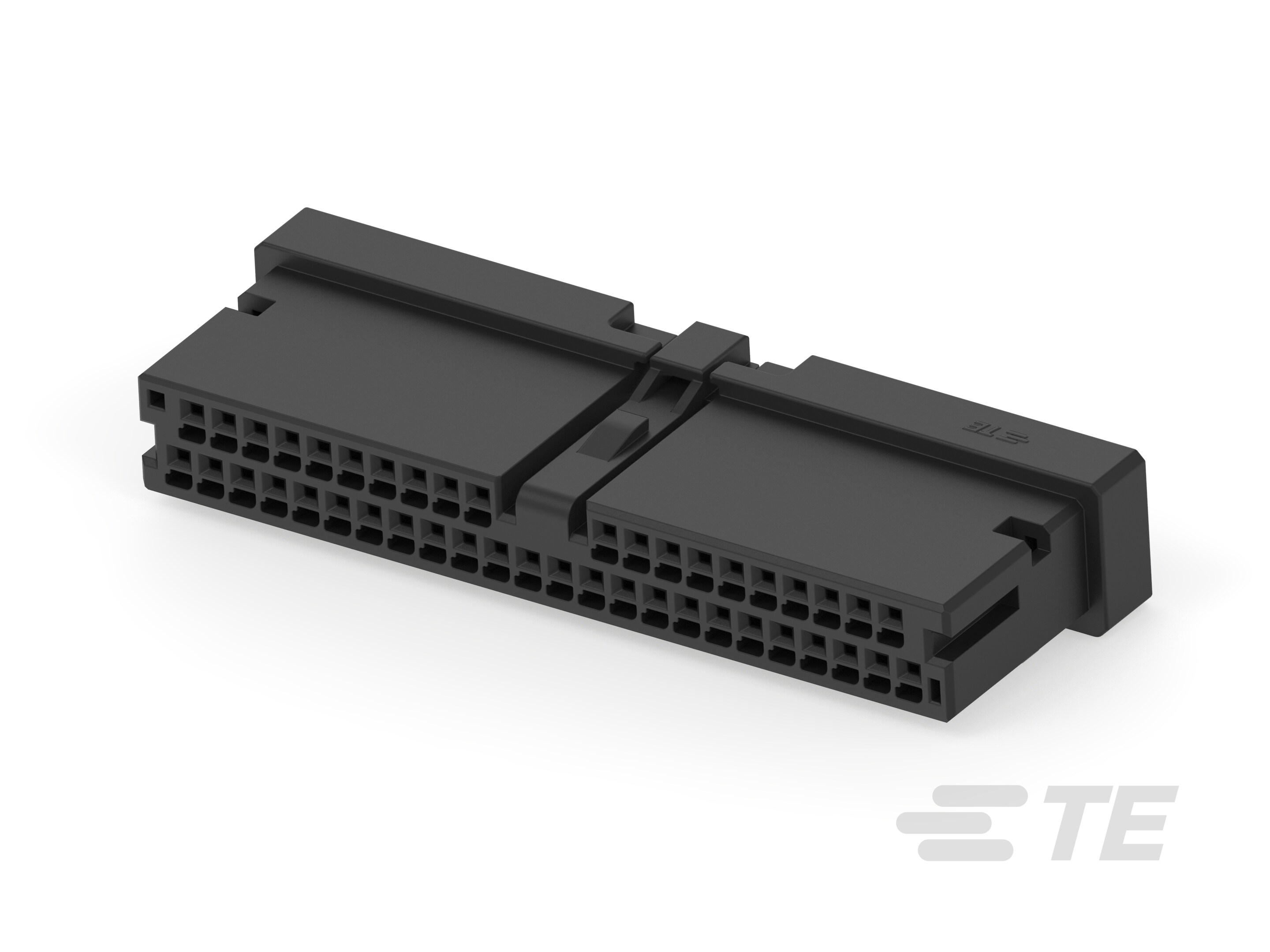

TE Connectivity AMP Connectors 4-2834461-4
