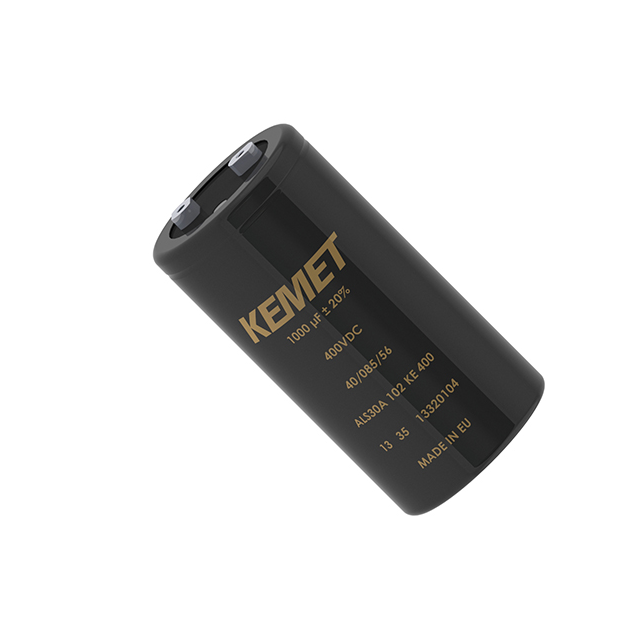

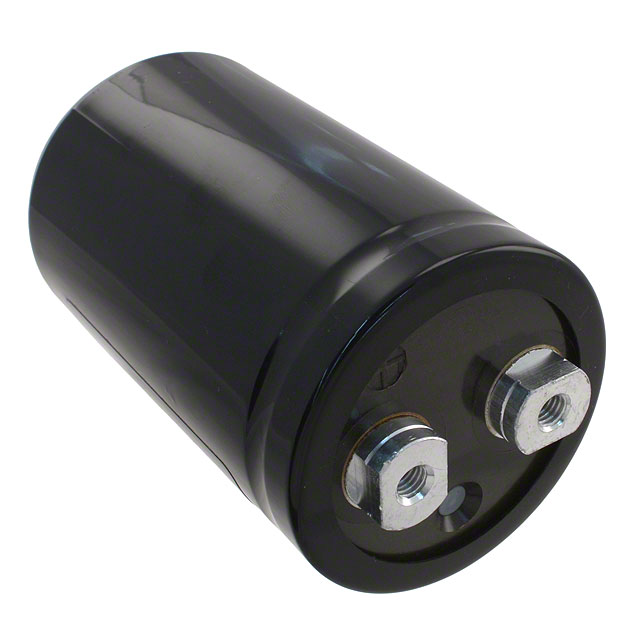

ALS30A Series

Manufacturer: KEMET

Catalog

ELECTROLYTIC CAPACITOR, LONG LIFE, ALS30 SERIES, 4700 F, 20%, 63 V, 36 MM, 0.036 OHM ROHS COMPLIANT: YES

Part	Impedance	Tolerance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Capacitance	Mounting Type	Ripple Current @ Low Frequency	Package / Case	Voltage - Rated	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALS30A472DA063	28 mOhms	20 %	11000 Hrs	36 mOhm	1.417 in	36 mm	Polar	General Purpose	2.047 in	52 mm	7.4 A	4700 µF	Chassis Mount	6.7 A	Radial Can - Screw Terminals	63 V	0.504 in	12.8 mm	85 °C	-40 C

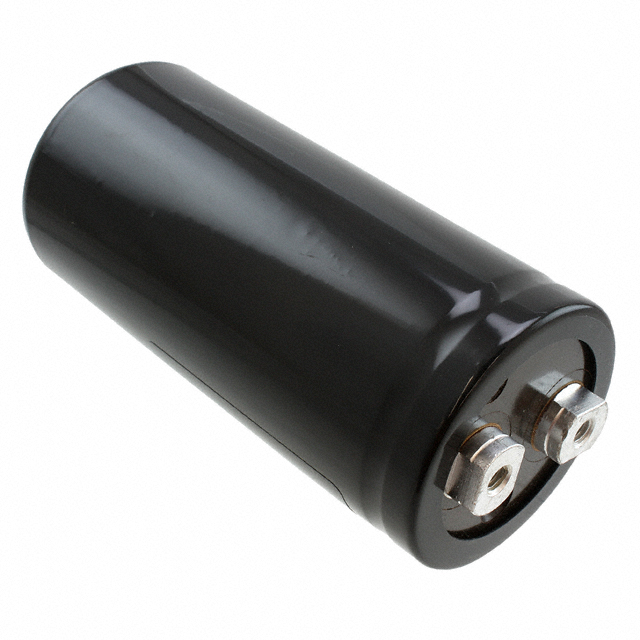

KEMET ALS30A222KE250	55 mOhms	20 %	18000 Hrs	69 mOhm	2.008 in	51 mm	Polar	General Purpose		3.228 in	9.1 A	2200 µF	Chassis Mount	7.7 A	Radial Can - Screw Terminals	250 V	0.874 in	22.2 mm	85 °C	-40 C	82 mm
KEMET ALS30A152KF450	65 mOhms	20 %	18000 Hrs	93 mOhm	2.008 in	51 mm	Polar	General Purpose	4.213 in	107 mm		1.5 mF	Chassis Mount		Radial Can - Screw Terminals	450 V	0.874 in	22.2 mm	85 °C	-40 C
KEMET ALS30A473DF025	7 mOhms	20 %	11000 Hrs	9 mOhm	1.417 in	36 mm	Polar	General Purpose			17.4 A	47 mF	Chassis Mount	16.6 A	Radial Can - Screw Terminals	25 VDC	0.504 in	12.8 mm	85 °C	-40 C		105 mm	4.134 "
KEMET ALS30A222KF400	56 mOhms	20 %	18000 Hrs	78 mOhm	2.008 in	51 mm	Polar	General Purpose	4.213 in	107 mm	13.5 A	2200 µF	Chassis Mount	8.4 A	Radial Can - Screw Terminals	400 V	0.874 in	22.2 mm	85 °C	-40 C
KEMET ALS30A102DE250	89 mOhms	20 %	11000 Hrs	117 mOhm	1.417 in	36 mm	Polar	General Purpose		3.228 in	7.4 A	1000 µF	Chassis Mount	5 A	Radial Can - Screw Terminals	250 V	0.504 in	12.8 mm	85 °C	-40 C	82 mm

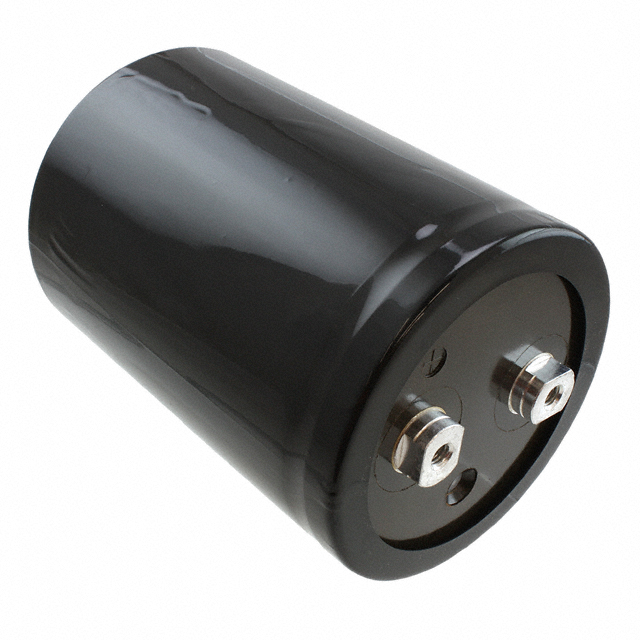

KEMET ALS30A152NF500	65 mOhms	20 %	20000 Hrs	120 mOhm	3.032 in	77 mm	Polar	General Purpose	4.213 in	107 mm	17 A	1.5 mF	Chassis Mount	10.6 A	Radial Can - Screw Terminals	500 V	1.252 in	31.8 mm	85 °C	-40 C
KEMET ALS30A332NF400	36 mOhms	20 %	20000 Hrs	49 mOhm	3.031 in	77 mm	Polar	General Purpose			21.3 A	3.3 mF	Chassis Mount	13.4 A	Radial Can - Screw Terminals	400 V	1.252 in	31.8 mm	85 °C	-40 C		105 mm	4.134 "

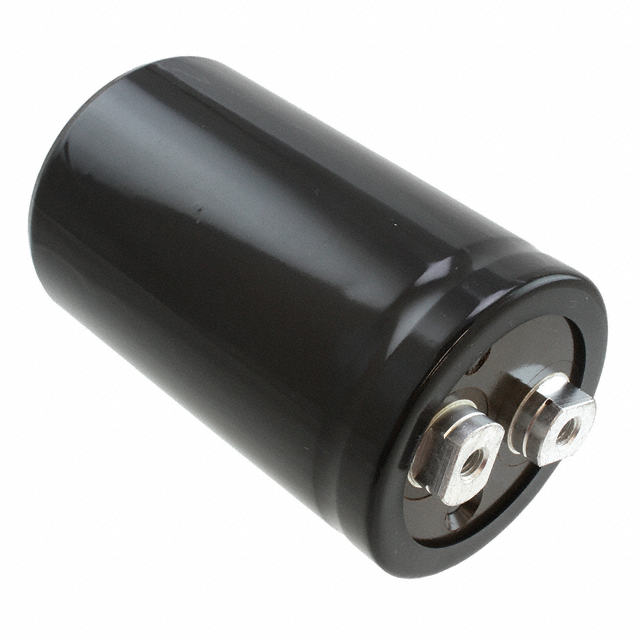

KEMET ALS30A102KE450	79 mOhms	20 %	18000 Hrs	118 mOhm	2.008 in	51 mm	Polar	General Purpose				1000 µF	Chassis Mount		Radial Can - Screw Terminals	450 V	0.874 in	22.2 mm	85 °C	-40 C		3.307 "		84 mm
KEMET ALS30A332NF450	30 mOhms	20 %	20000 Hrs	40 mOhm	3.032 in	77 mm	Polar	General Purpose	4.213 in	107 mm	21.2 A	3.3 mF	Chassis Mount	13.8 A	Radial Can - Screw Terminals	450 V	1.252 in	31.8 mm	85 °C	-40 C
