BD9E100FJ-LB(E2) Series

7.0V to 36V Input, 1.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Catalog

7.0V to 36V Input, 1.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Part	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Frequency - Switching	Current - Output	Voltage - Input (Max) [Max]	Mounting Type	Topology	Supplier Device Package	Output Configuration	Package / Case	Package / Case [y]	Package / Case [x]	Function	Voltage - Output (Max)	Voltage - Input (Min) [Min]	Number of Outputs	Board Type	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Regulator Topology	Outputs and Type	Outputs and Type	Supplied Contents
Rohm Semiconductor BD9E100FJ-LBGH2	1 V	150 °C	-40 °C	Adjustable	1 MHz	1 A	36 V	Surface Mount	Buck	8-SOP-J	Positive	8-SOIC	3.9 mm	0.154 in	Step-Down	25.2 V	7 V	1

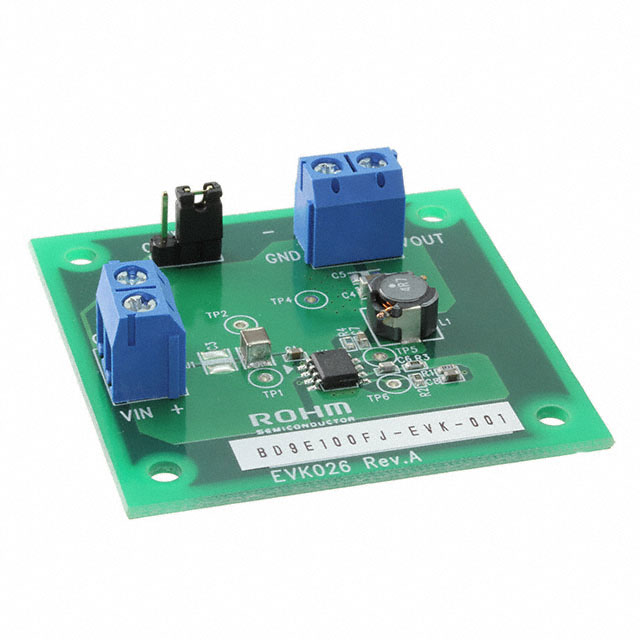

Rohm Semiconductor BD9E100FJ-EVK-001					1 MHz	1 A													Fully Populated	DC/DC Step Down	7.2 V	33 V	5 V	Buck	Non-Isolated	1	Board(s)
Rohm Semiconductor BD9E100FJ-LBGE2	1 V	150 °C	-40 °C	Adjustable	1 MHz	1 A	36 V	Surface Mount	Buck	8-SOP-J	Positive	8-SOIC	3.9 mm	0.154 in	Step-Down	25.2 V	7 V	1

Catalog

7.0V to 36V Input, 1.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Key Features

• Long Time Support Product for Industrial Applications., Synchronous single DC/DC converter., Over-Current Protection., Short Circuit Protection., Thermal Shutdown Protection., Under voltage Lockout Protection., Soft Start., HTSOP-J8 package (Exposed Pad).
