1734595 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

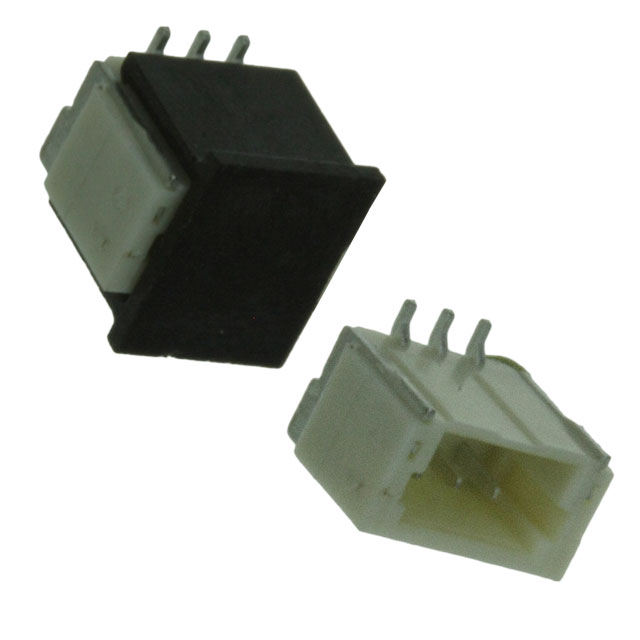

CONN HEADER SMD 3POS 1MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Insulation Height | Insulation Height | Number of Positions Loaded | Termination | Connector Type | Style | Contact Material | Mounting Type | Contact Finish - Post | Insulation Material | Contact Shape | Shrouding | Voltage Rating | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Rows | Contact Type | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | 4 |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | 6 |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | 11 |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | 7 |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | 12 |
 TE Connectivity AMP Connectors | 120 Áin | 3.05 Ám | Automotive General Purpose Industrial Medical | 4.3 mm | 0.169 " | All | Solder | Header | Board to Cable/Wire | Phosphor Bronze | Surface Mount | Tin | Nylon 9T Polyamide (PA9T) | Square | Shrouded - 4 Wall | 50 V | 1 mm | 0.039 in | UL94 V-0 | 1 | Male Pin | Pick and Place Solder Retention | 120 µin | 3.05 µm | -55 C | 105 ░C | Ivory | 14 |
